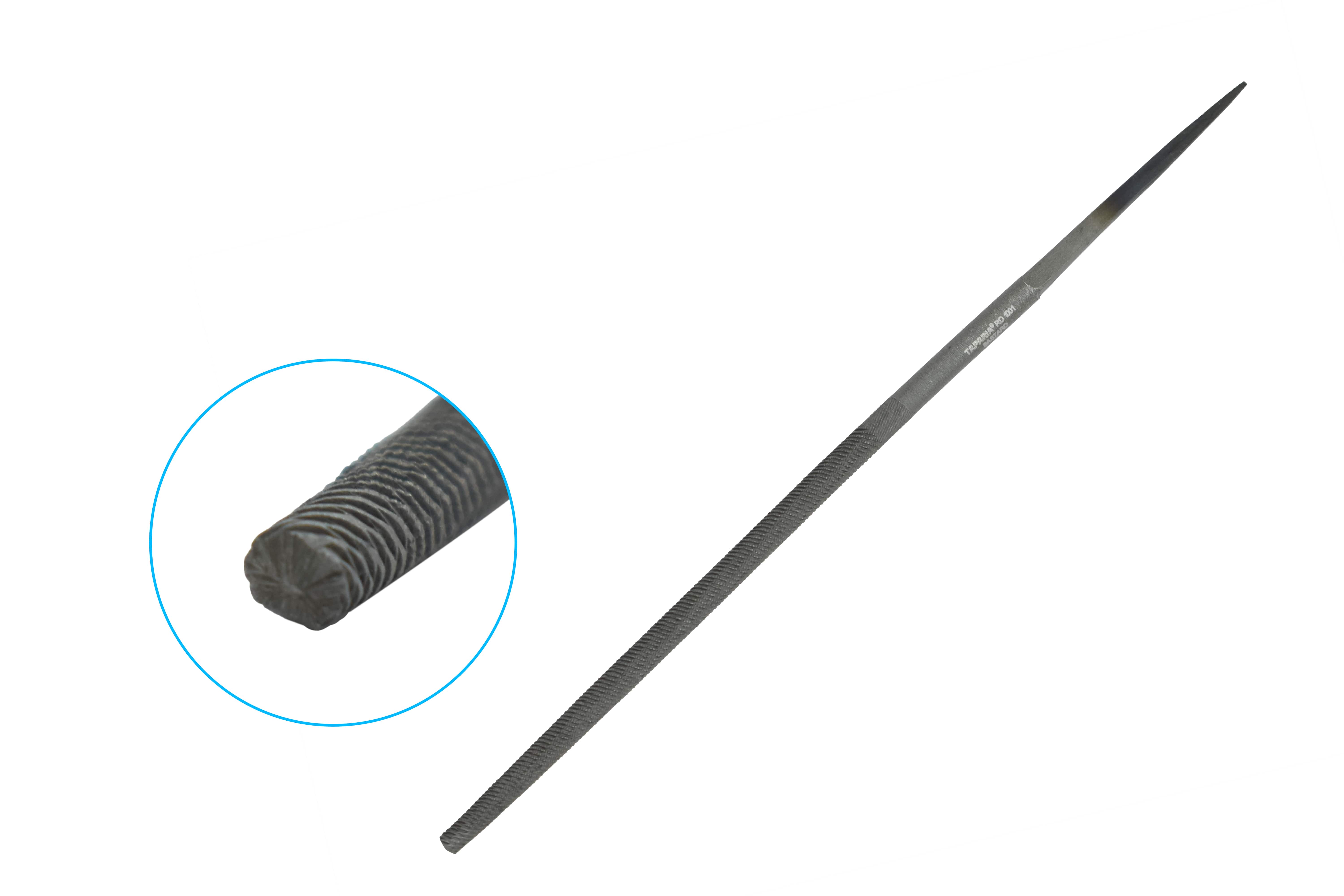

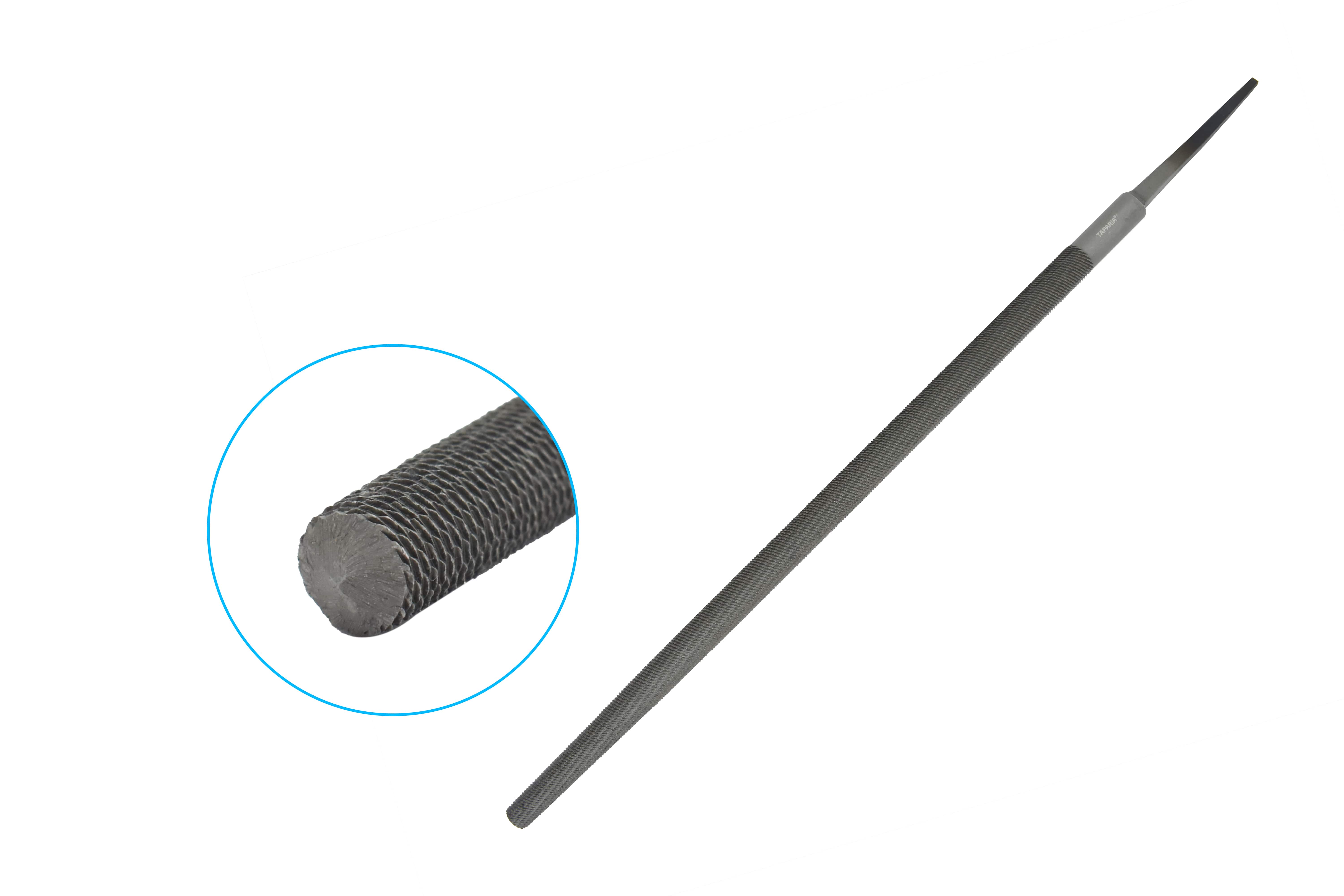

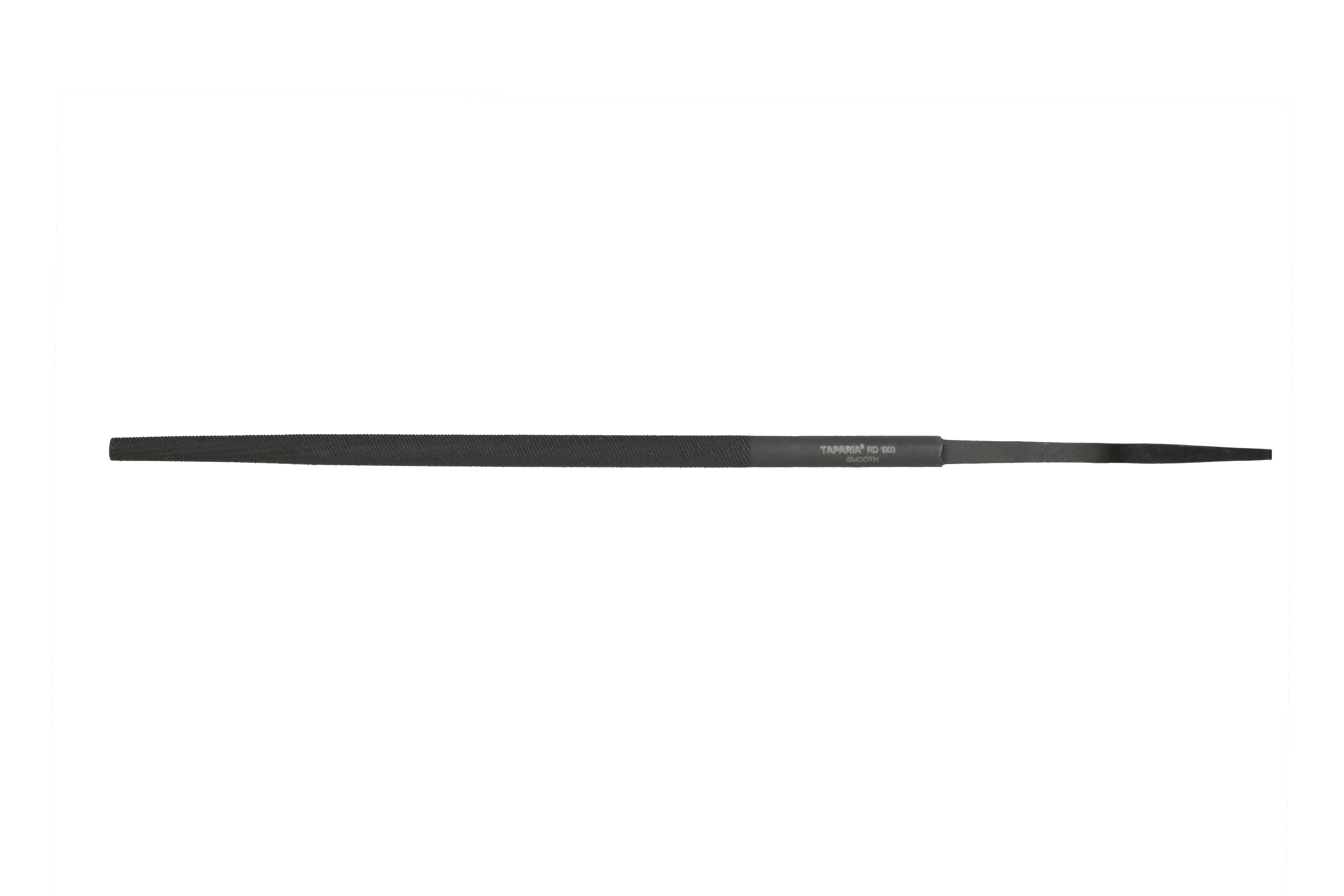

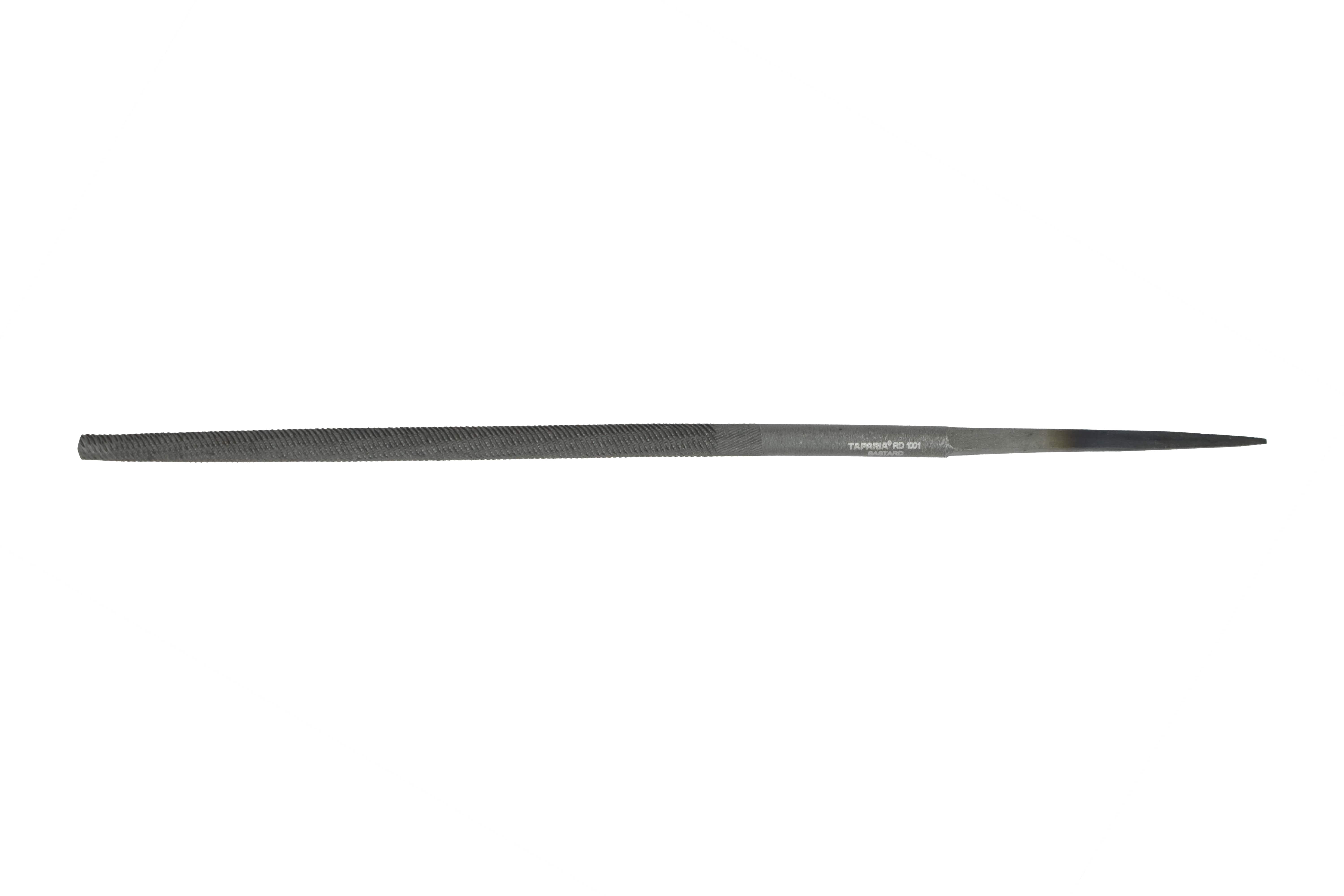

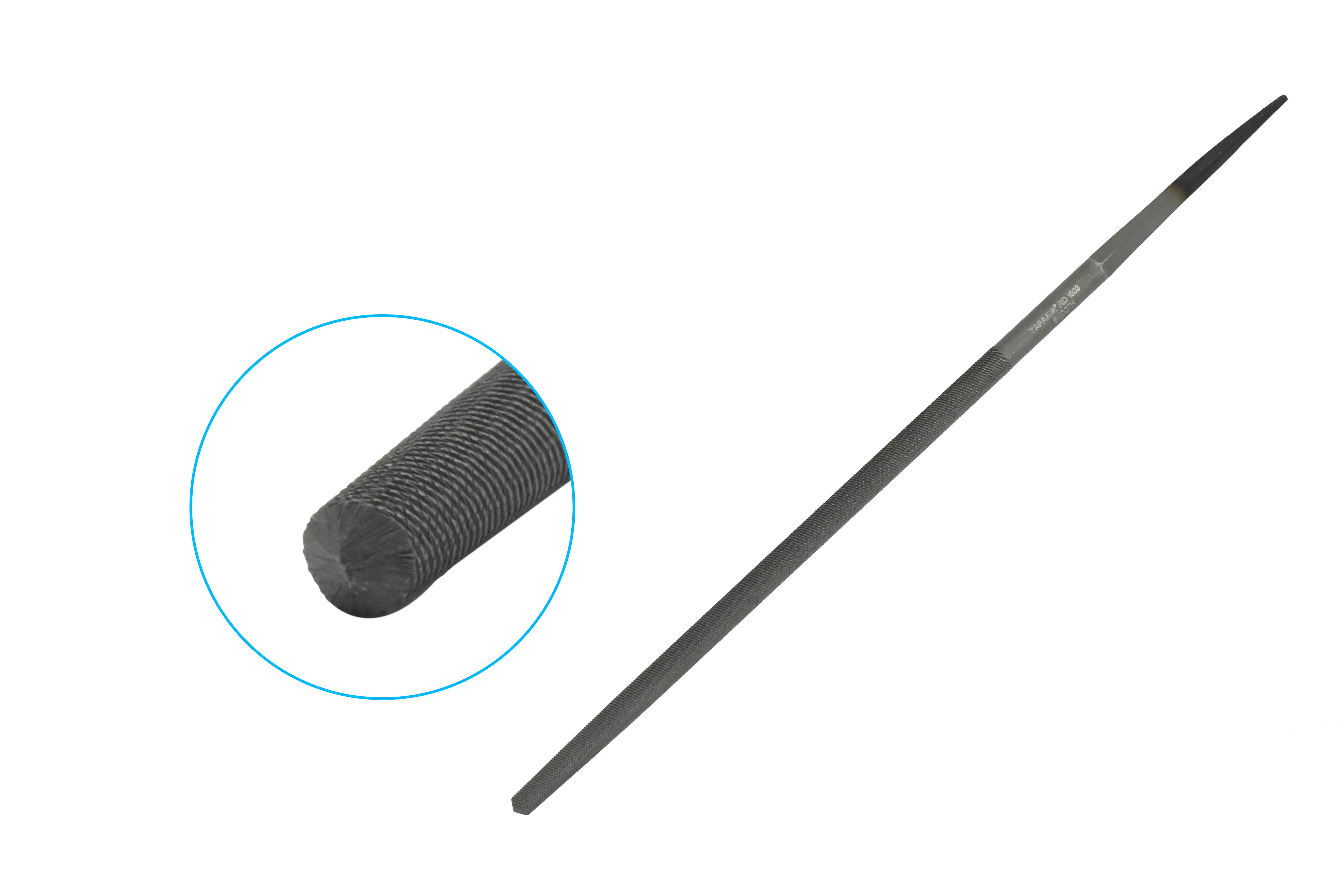

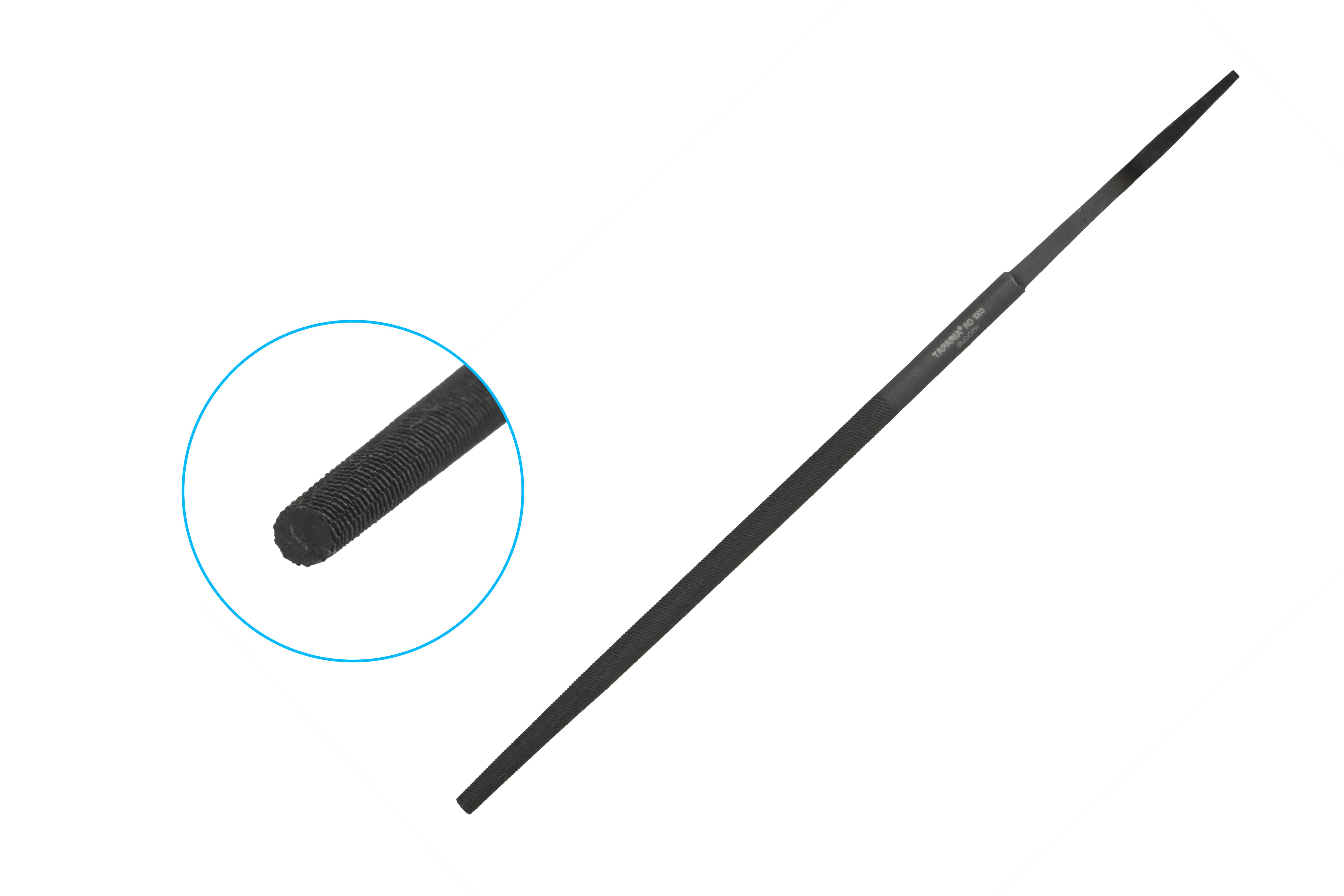

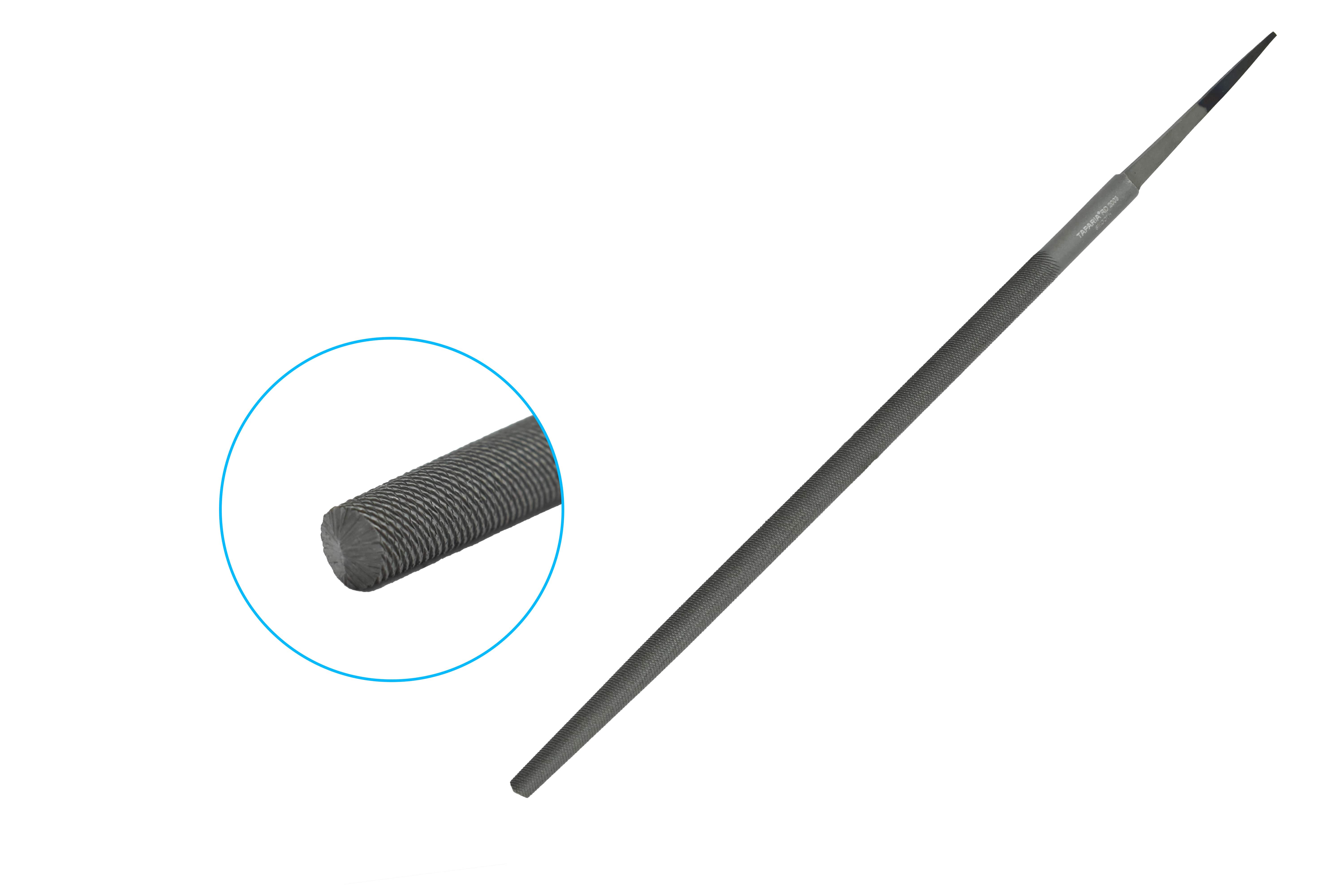

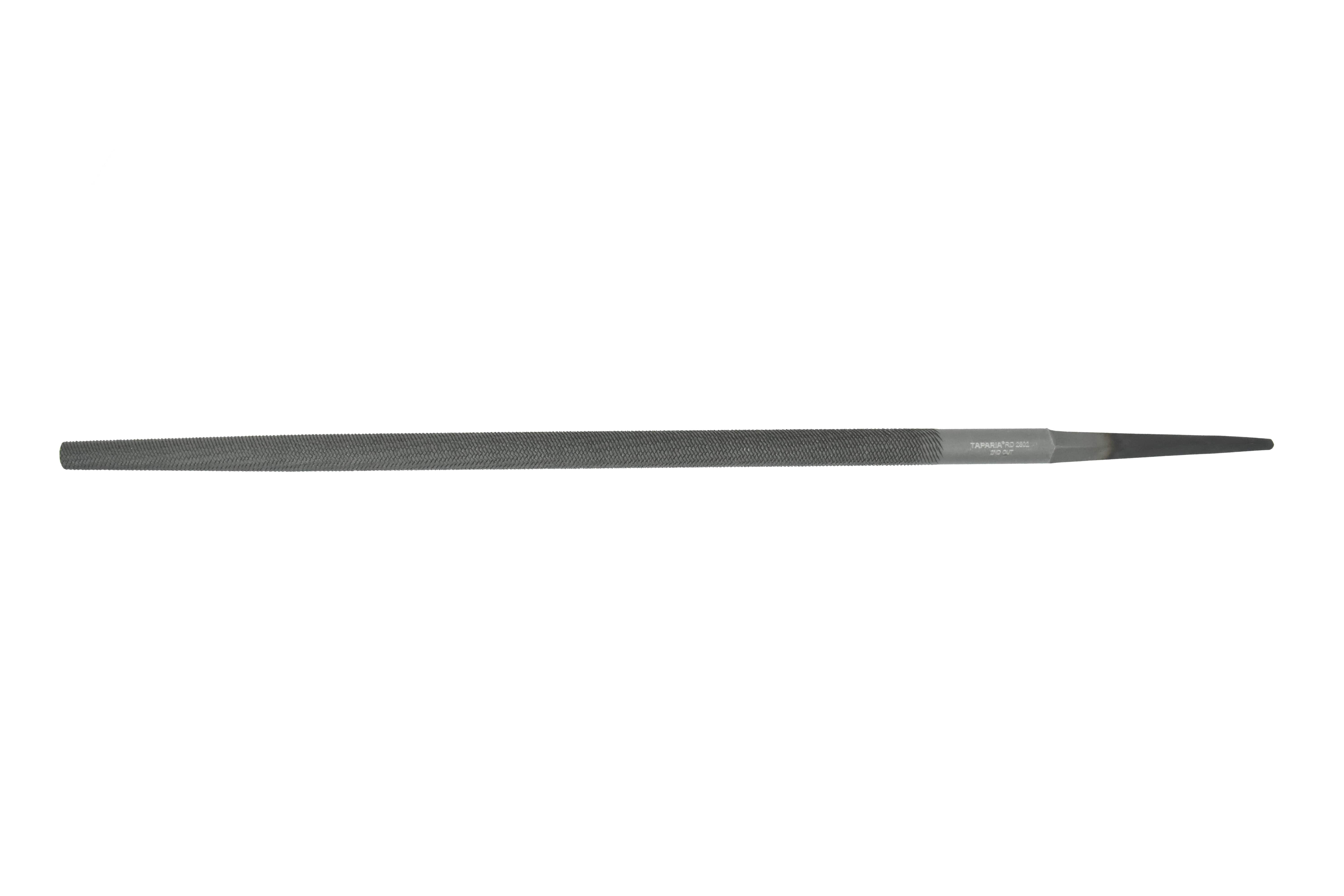

Round Files

Round Files

Product Overview

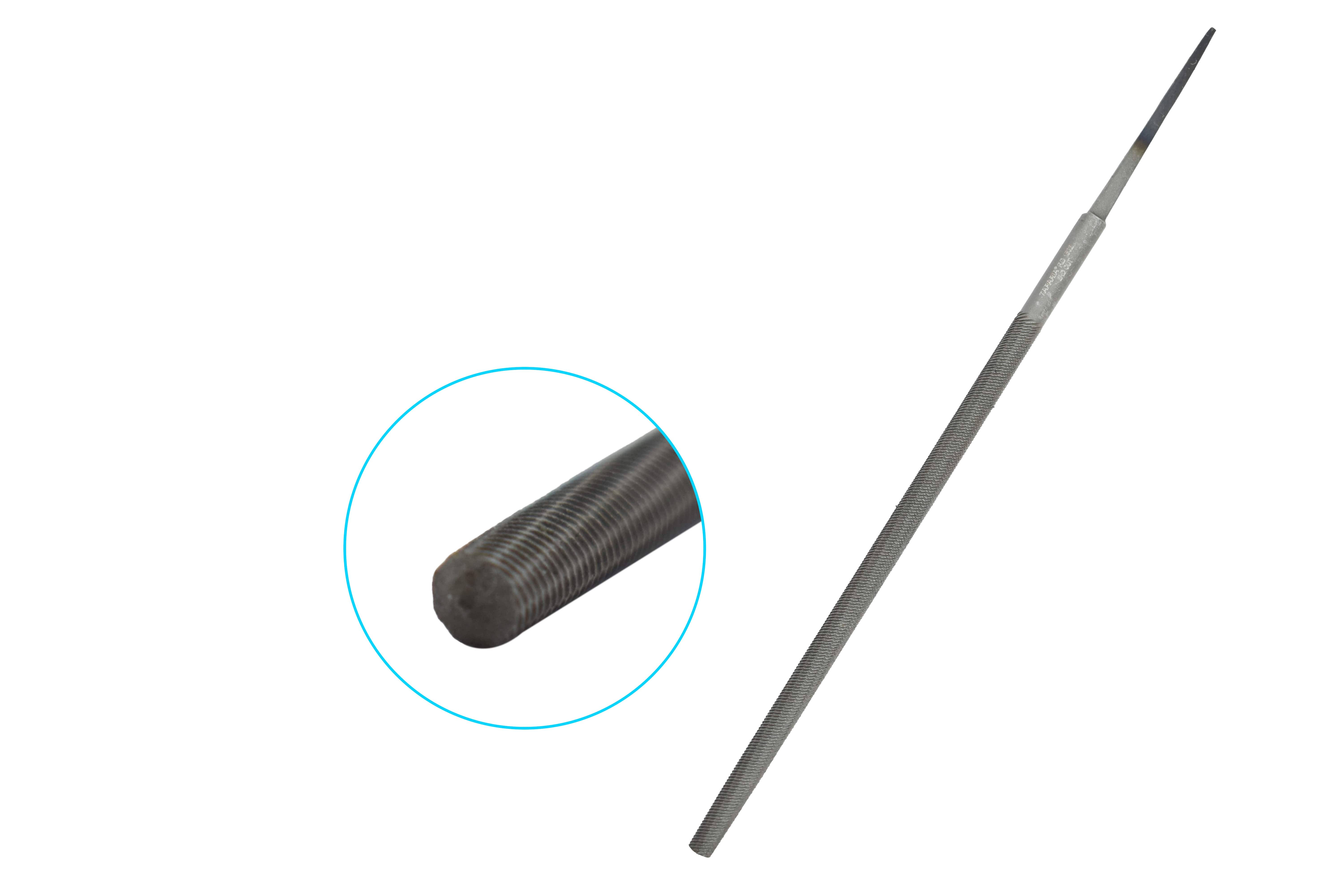

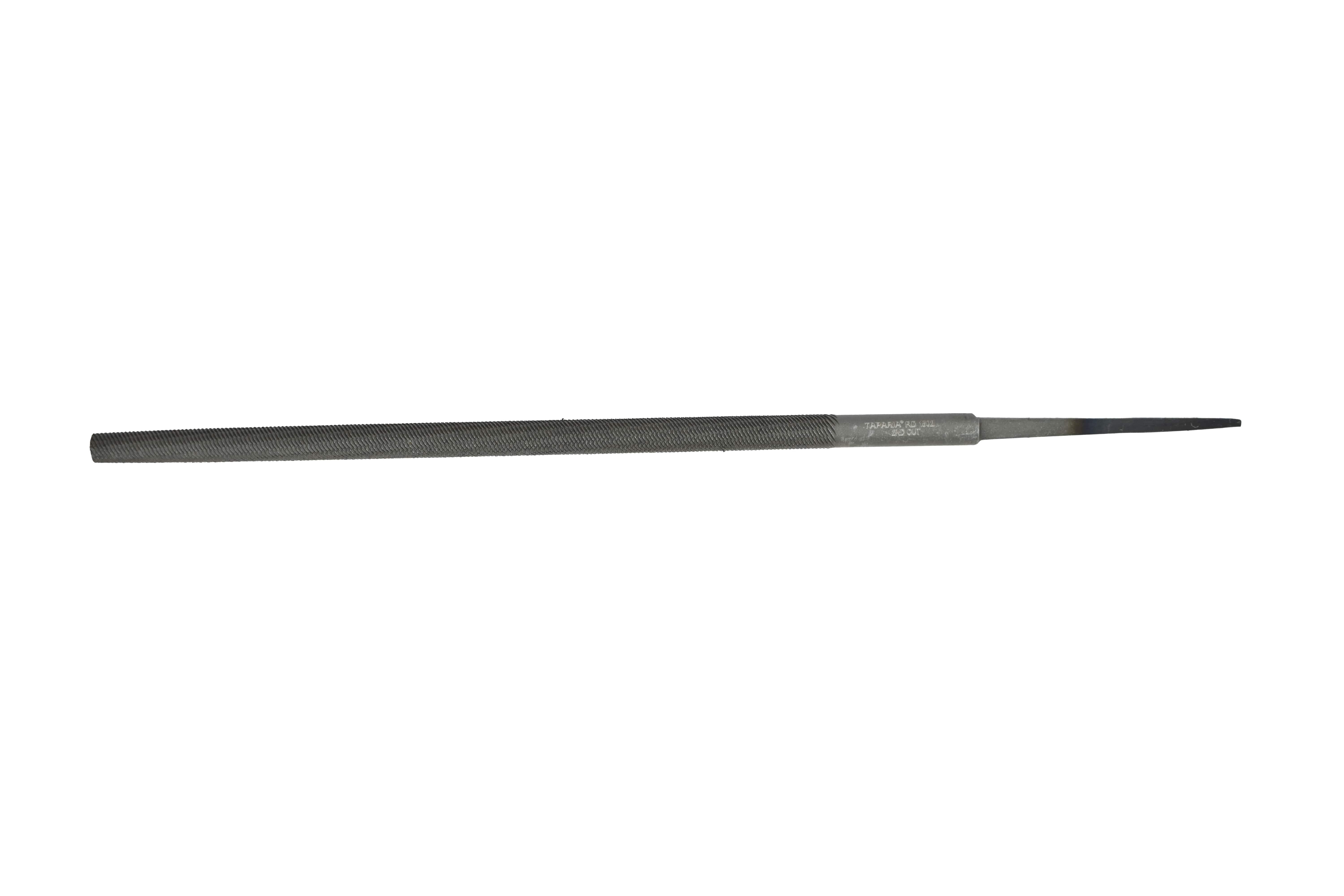

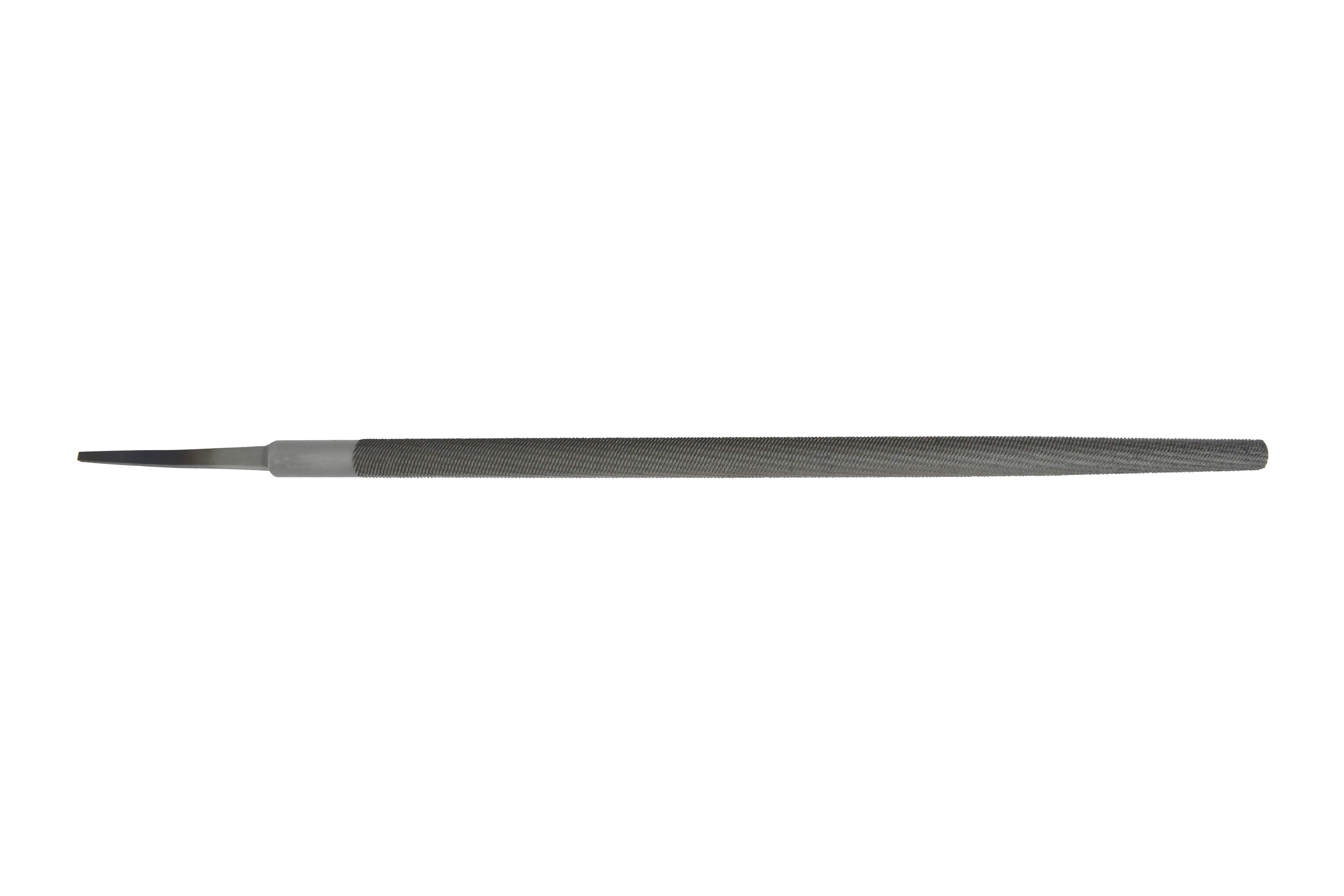

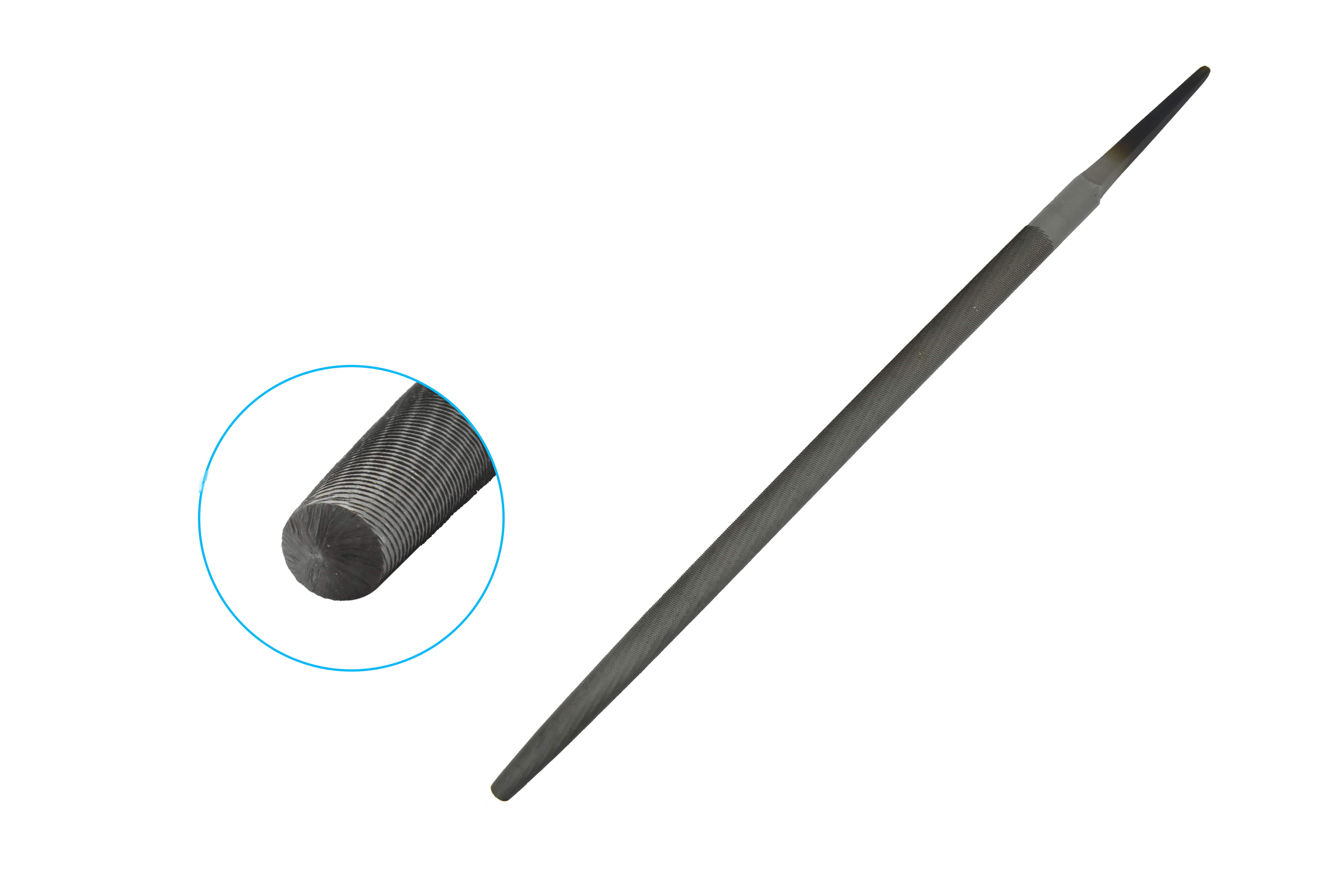

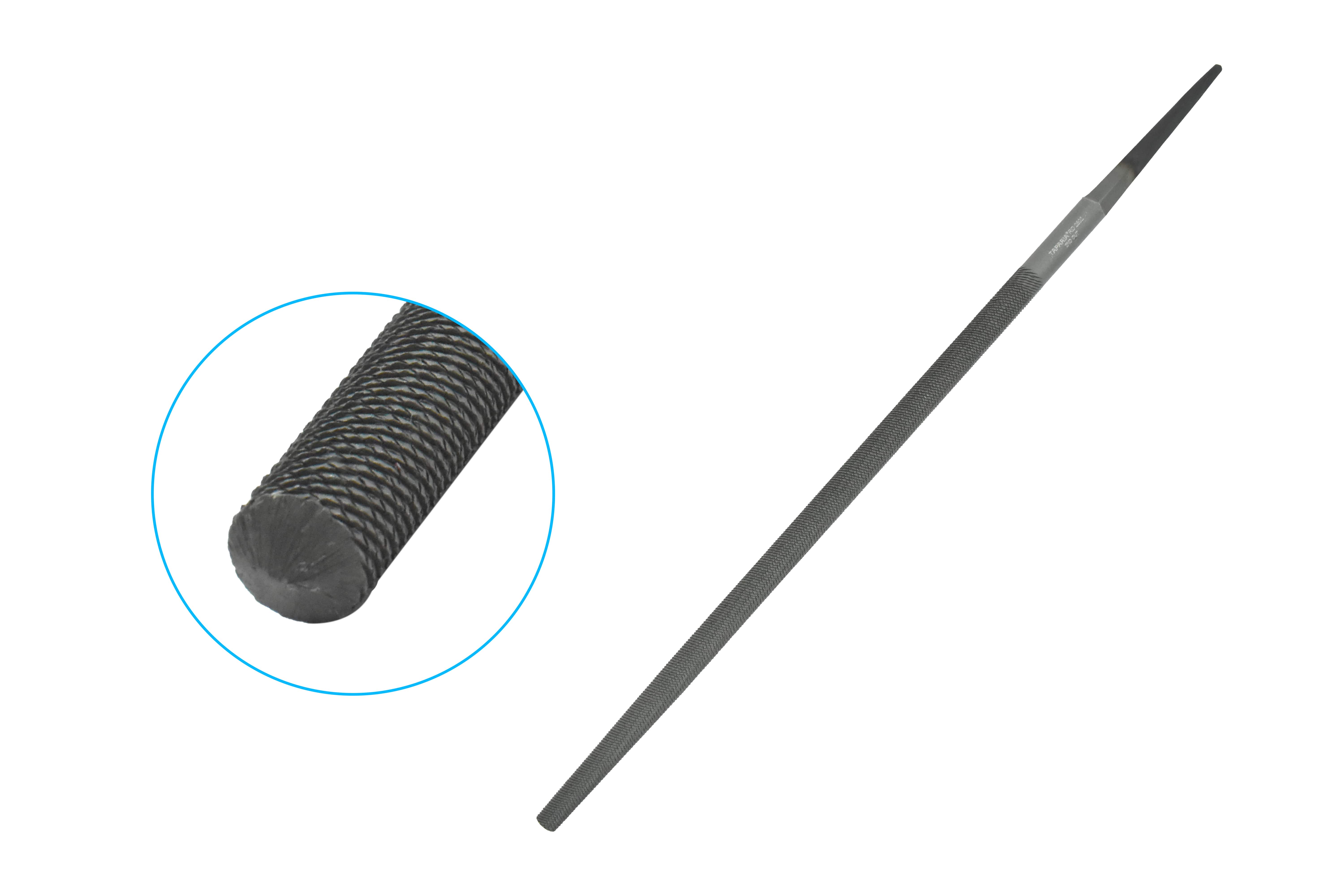

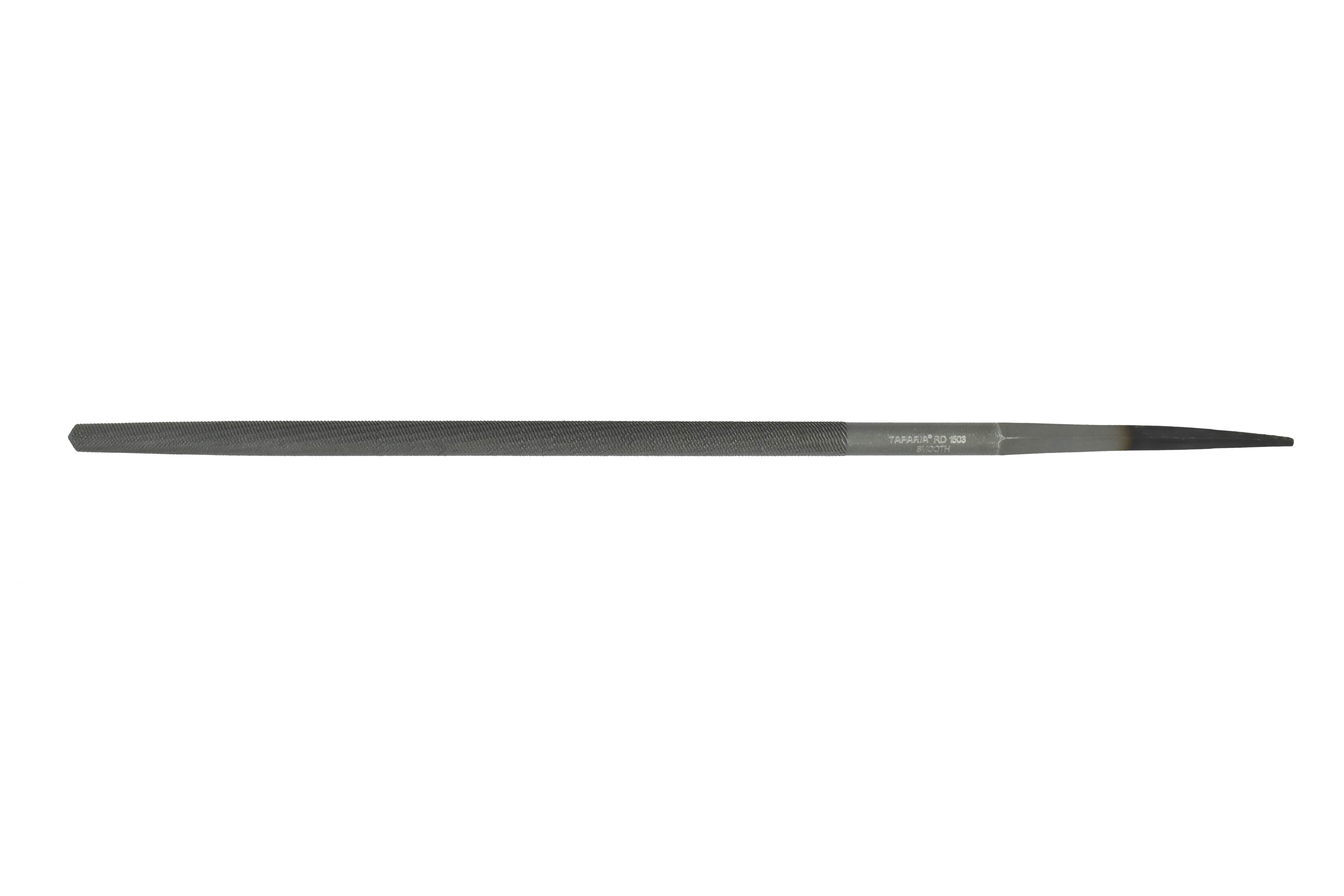

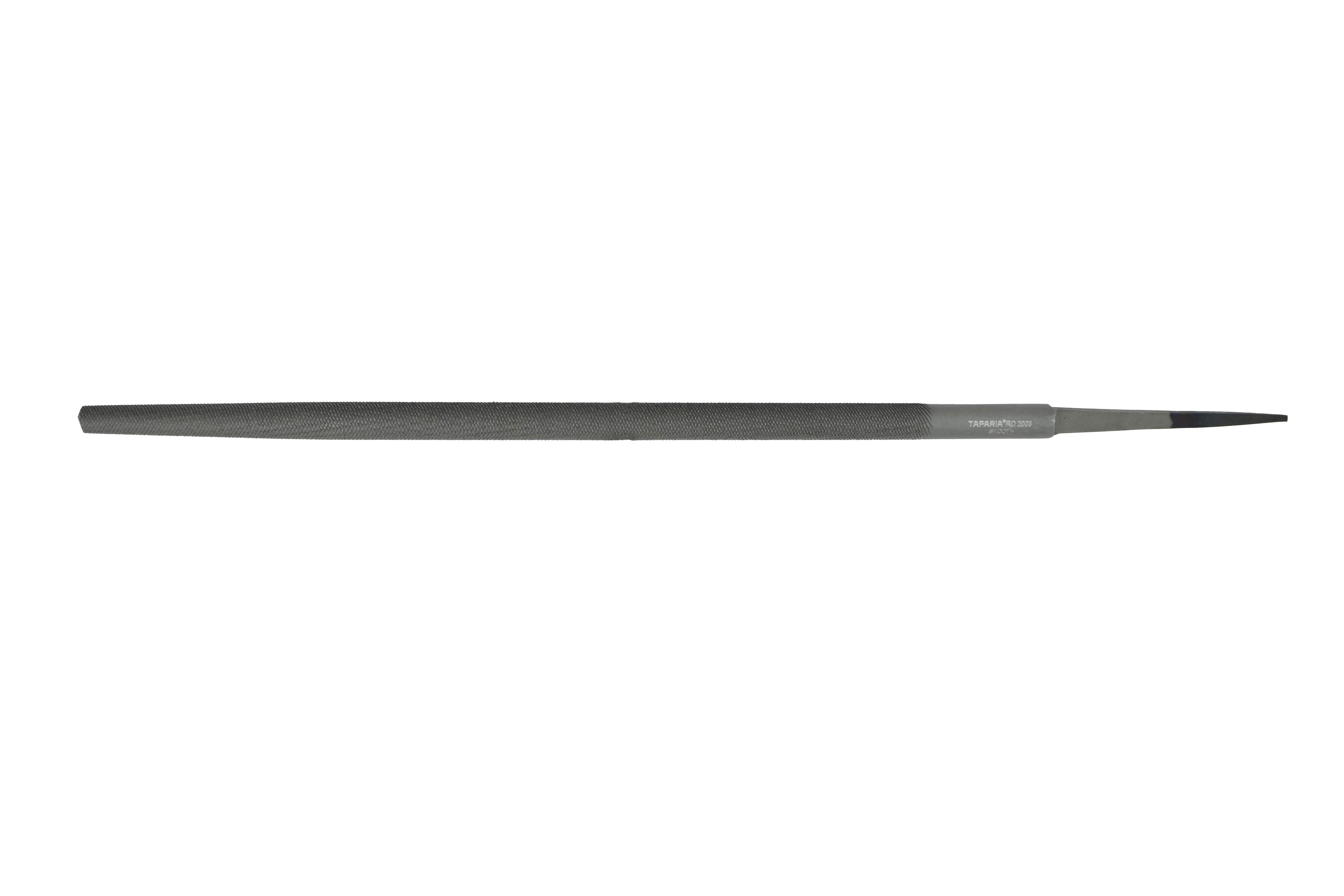

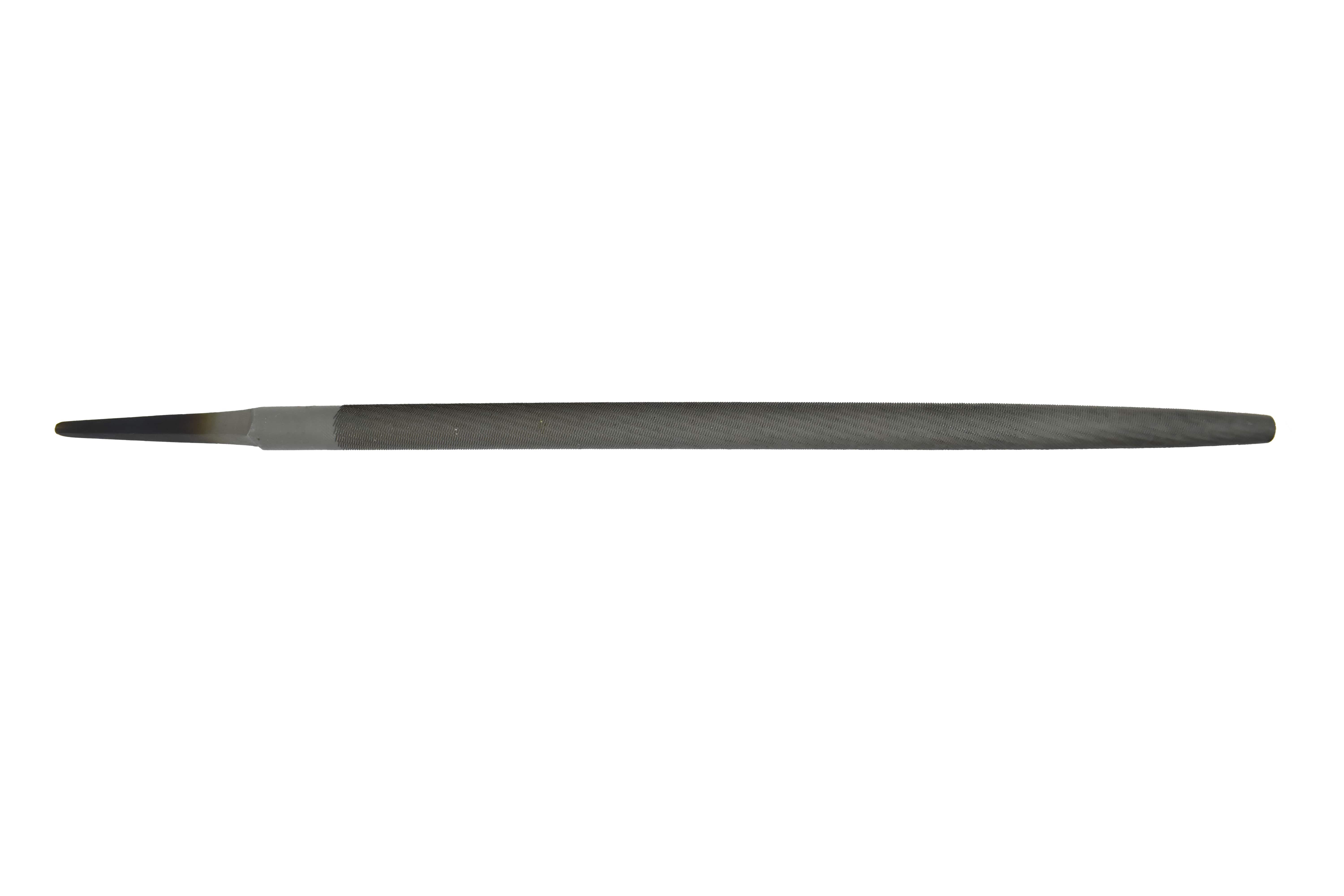

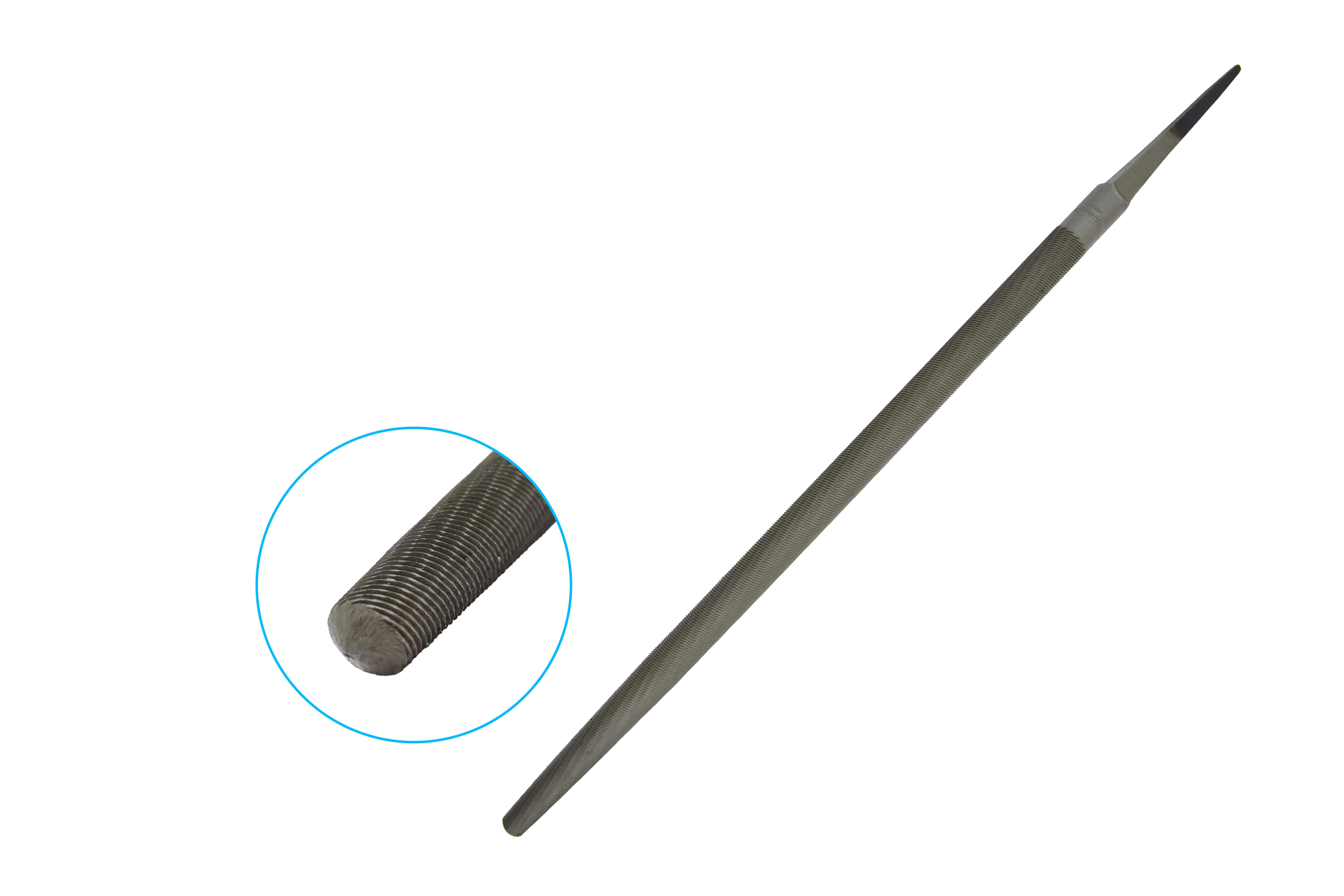

ROUND FILES



PRODUCT NO. LL1ΓƒΛœD NO OF UP CUTS PER CM WEIGHT GRAMS
RD 10011004401512
RD 10021004401712
RD 10031004402112
RD 15011506501232
RD 15021506501432
RD 15031506501932
RD 20012007.5601068
RD 20022007.5601267
RD 20032007.56016.565
RD 25012509.5709135
RD 25022509.57010137
RD 25032509.57016134
RD 300130012808259
RD 300230012809.5260
RD 3003300128015260
RD 350135015907524
RD 350235015909523
RD 3503350159014524


Special Features


Salient Features

  • Made from high grade special alloy steel.
  • Taparia Files are designed with precise teeth geometry to efficiently remove stock through abrasion & achieving the desired finish across various shapes & materials.
  • Scientifically heat - treated to give maximum strength, wear resistance.
  • Surface treated to protect from rust/corrosion.
  • A new file should be used with light pressure in the beginning, preferable on surface which has been filed earlier.
  • In case of clogging of file teeth, clean the teeth with a soft metal wire brush.

Available in vide variety of sizes, shapes, cuts and tooth configurations

Type / ShapesSizes (in mm)Cuts
Machinist Files / Engineer's FilesMachinist Files / Engineer's FilesMachinist Files / Engineer's Files
Round Files100, 150, 200, 250, 300, 350Bastard, Second & Smooth
Hand Files100, 150, 200, 250, 300, 350Bastard, Second & Smooth
Round Files100, 150, 200, 250, 300, 350Bastard, Second & Smooth
Half Round Files100, 150, 200, 250, 300, 350Bastard, Second & Smooth
Three Square100, 150, 200, 250, 300, 350Bastard, Second & Smooth
Square100, 150, 200, 250, 300, 350Bastard, Second & Smooth
Knife Edge100, 150, 200, 250, 300Bastard
Pillar Narrow150, 200Bastard
Flat Handle250Bastard, Second
Warding100, 150, 200Bastard
Flat Super light250Bastard

Saw Files

Type / ShapesSizes (in mm)Cuts
Feather Edge125, 150Second
Pit Saw110Second
Heavy Taper100, 125,150, 200Second
Regular Taper100, 125,150Second
Slim Taper100, 125,150Second
Mill Files100, 150, 200, 250, 300, 350Bastard


Needle Files

Type / ShapesSizes (in mm)Cuts
Flat Files140, 160β€˜0’ Cut
Round Files140, 160β€˜0’ Cut
Half Round Files140, 160β€˜0’ Cut
Three Square140, 160β€˜0’ Cut
Square140, 160β€˜0’ Cut
Knife Edge140, 160β€˜0’ Cut


Type / ShapesSizes (in mm)Cuts
Wood Rasp
Flat Wood Rasp150, 200, 250Bastard, Second & Smooth
Flat Wood Rasp300, 350Bastard
Half Round Wood Rasp150, 200, 250Bastard, Second & Smooth
Half Round Wood Rasp300, 350Bastard

TAPARIA Files are generally Conform to I.S. 1931 :2000, 3587 : 1986 & 3152-1980.
