Double Ended Spanner DEP

Double Ended Spanner DEP

DOWNLOAD CATALOGUE

Product Overview



PRODUCT NO. & SIZED1D2TLWEIGHT GRAMS
DEP - 6 X 714.016.03.59515
DEP - 8 X 917.019.04.010022
DEP - 10 X 1121.023.04.011530
DEP - 12 X 1325.027.05.013042
DEP - 14 X 1529.031.05.014562
DEP - 16 X 1733.035.06.016082
DEP - 18 X 1936.038.06.0180110
DEP - 20 X 22 40.043.06.5200135
DEP - 21 X 2341.045.07.0210150
DEP - 24 X 2648.053.07.0230200
DEP - 24 X 2748.053.07.0230200
DEP - 25 X 2849.055.07.5235250
DEP - 30 X 3259.062.08.0255320


Special Features


Salient Features

  • Drop forged from high grade Chrome – Vanadium Steel.
  • Scientifically heat - treated to give maximum strength and wear resistance.
  • Head at each end are of different sizes and 150  head angle permits use in confined spaces.
  • Slightly rounded shank sand blasted- fit snugly in the hand and give a comfortable grip.
  • Clearly marked –facilitates choice of right size.
  • Precised across flat avoids Nut damage.
  • I-section design of spanners gives strength with low weight.
  • Thoroughly corrosion protected with Nickel-Chrome & black phosphate finish.
  • Jaw cheek portion is mirror polished gives rich feel.
  • Available in Metric, Inch & WW series with various sizes & sets.

    Minimum Torque Value in Kg.m
Nominal Width A/F in mm & W/W
Torque Value in Kg.m
60.6
70.9
81.3
91.9
102.5
113.3
124.2
135.3
146.5
157.8
169.4
1710.9
1813
1915.2
2017.5

Minimum Torque Value in Kg.m



Nominal Width A/F
Torque Value in Kg.m
21
20.2
22
22.9
23
26
24
29.3
25
32.8
26
36.6
27
40.7
28
45
30
54.6
32
65.5
36
91
41
118
46
148
50
175
55
212
60
252
65
290
70
343
75
394
80
448

TAPARIA double ended open jaw spanners generally Conform to I.S. 2028-2004

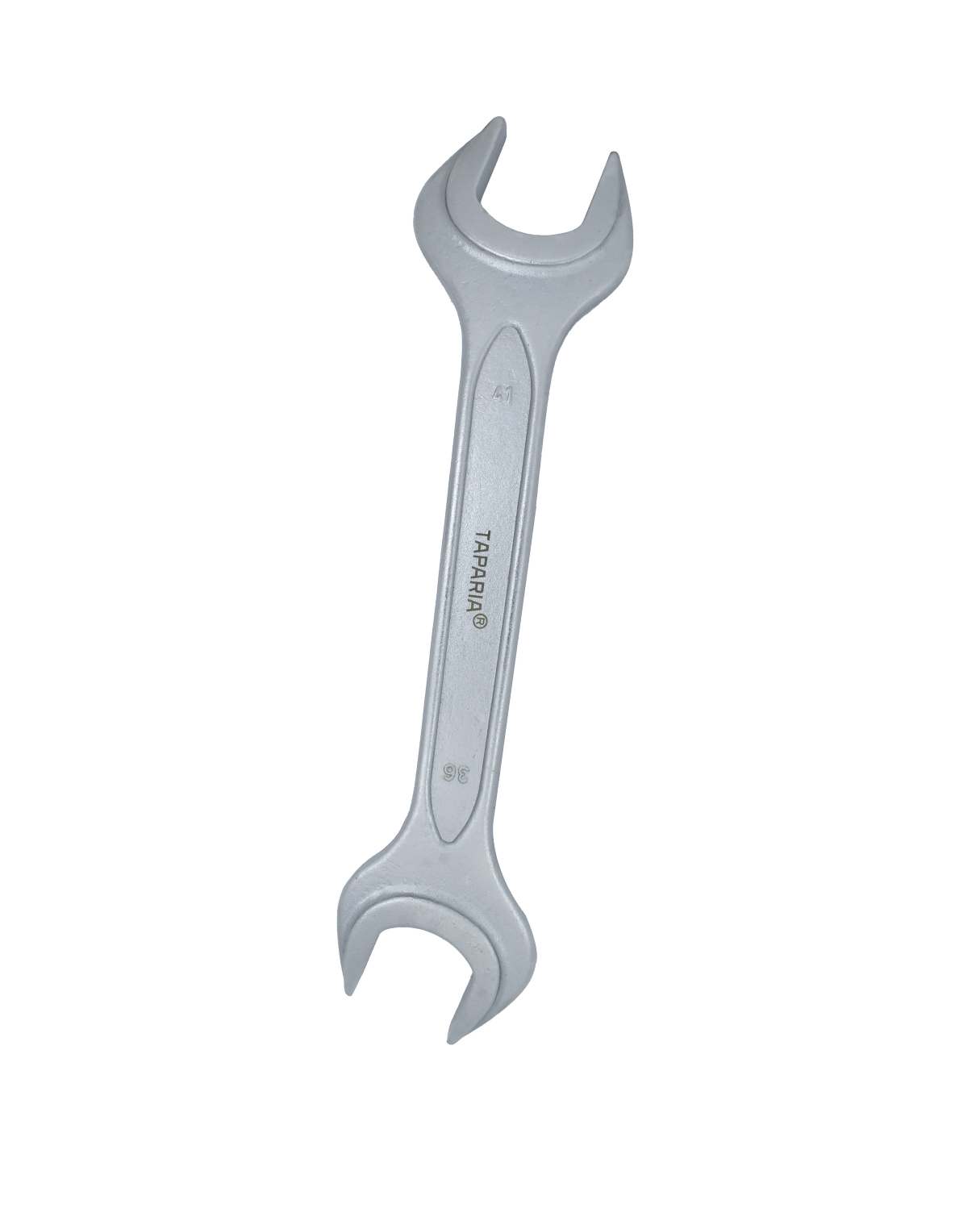

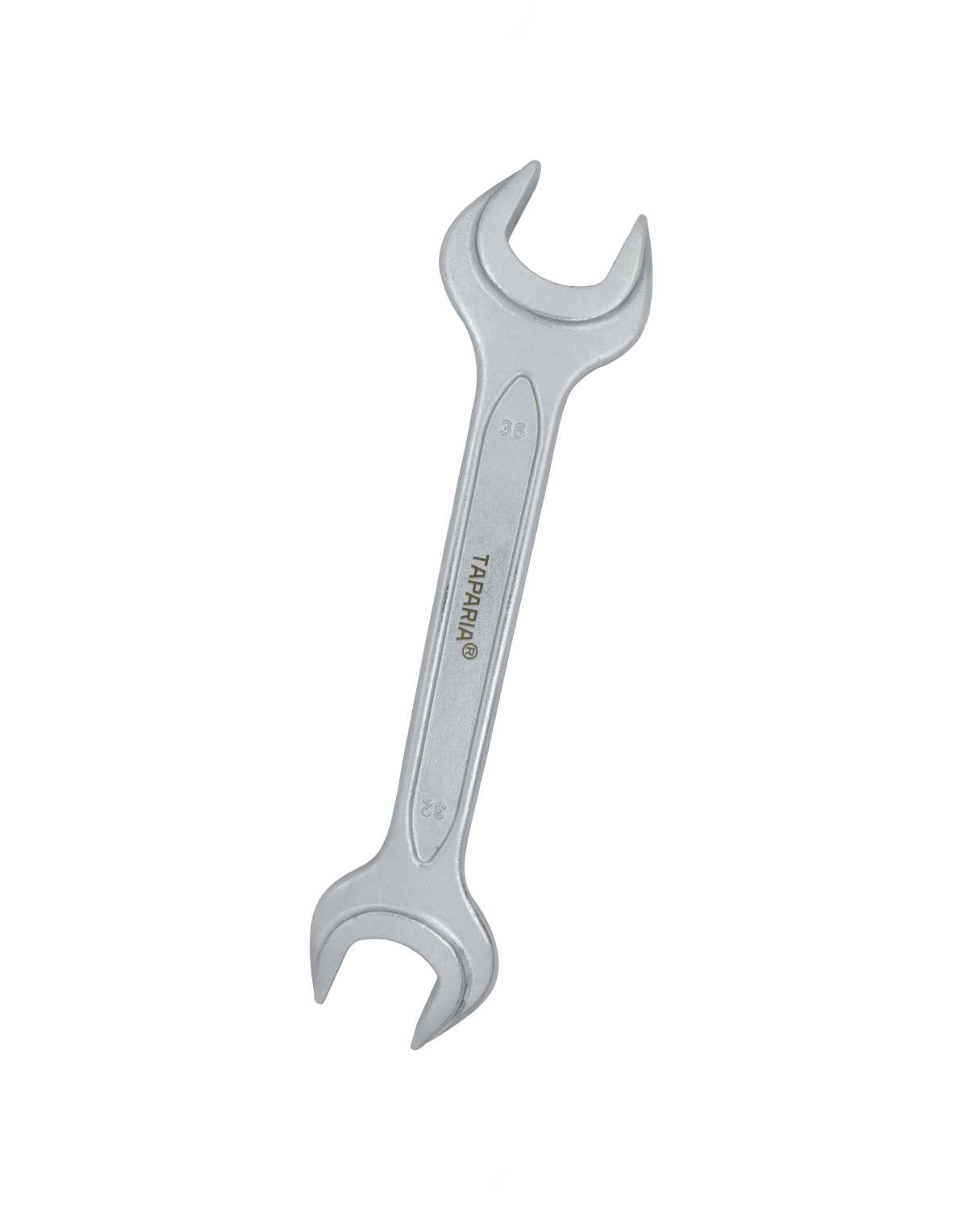

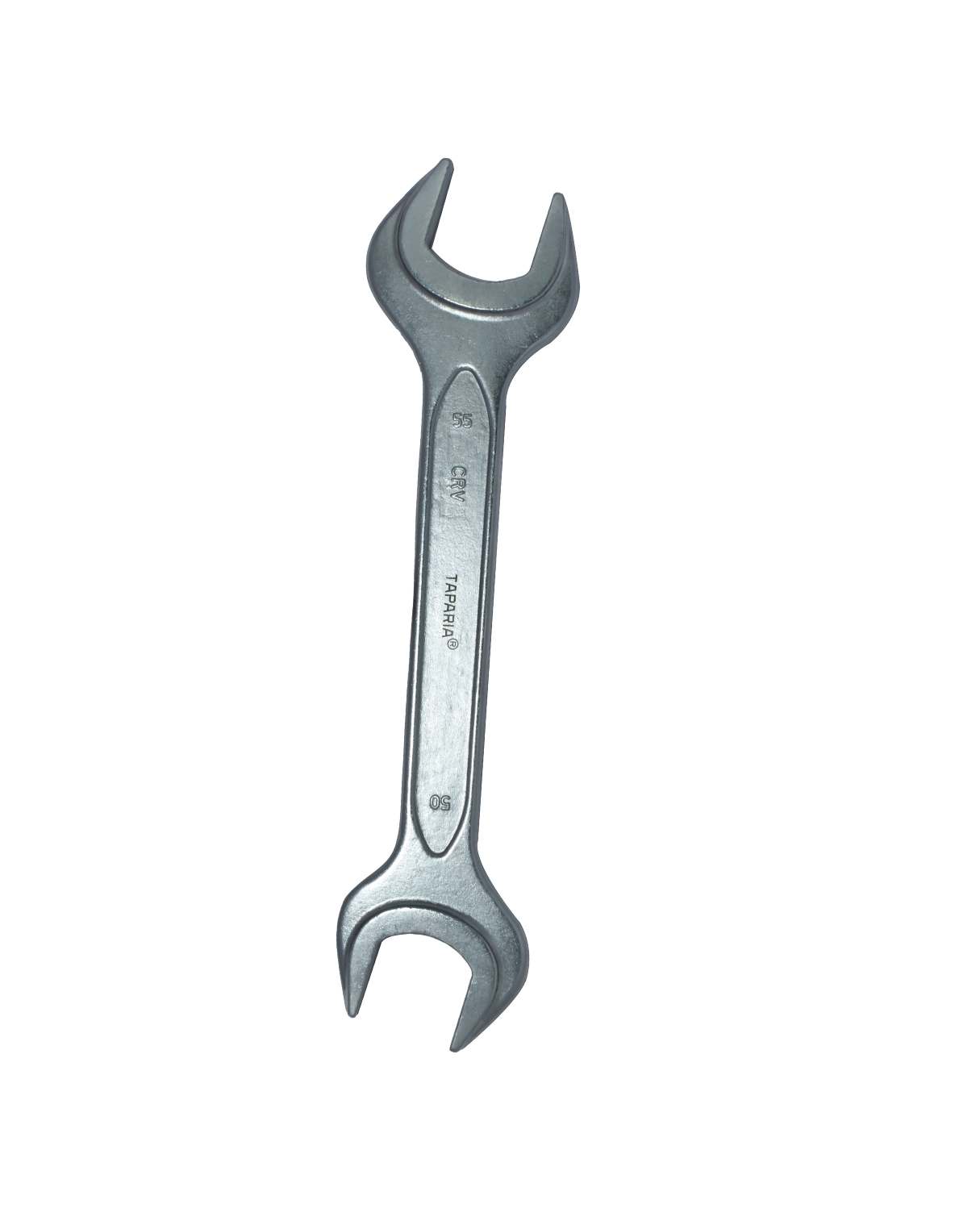

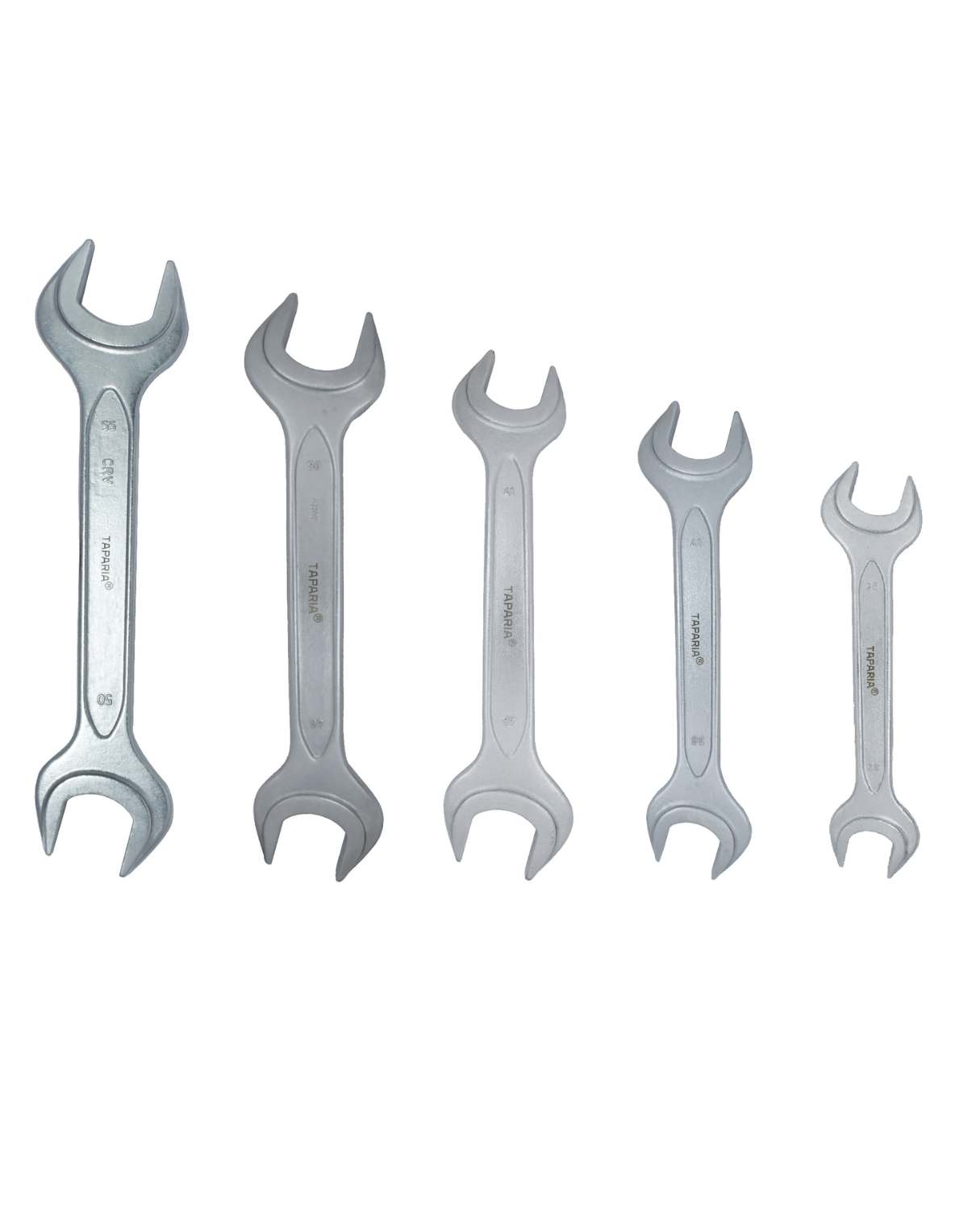

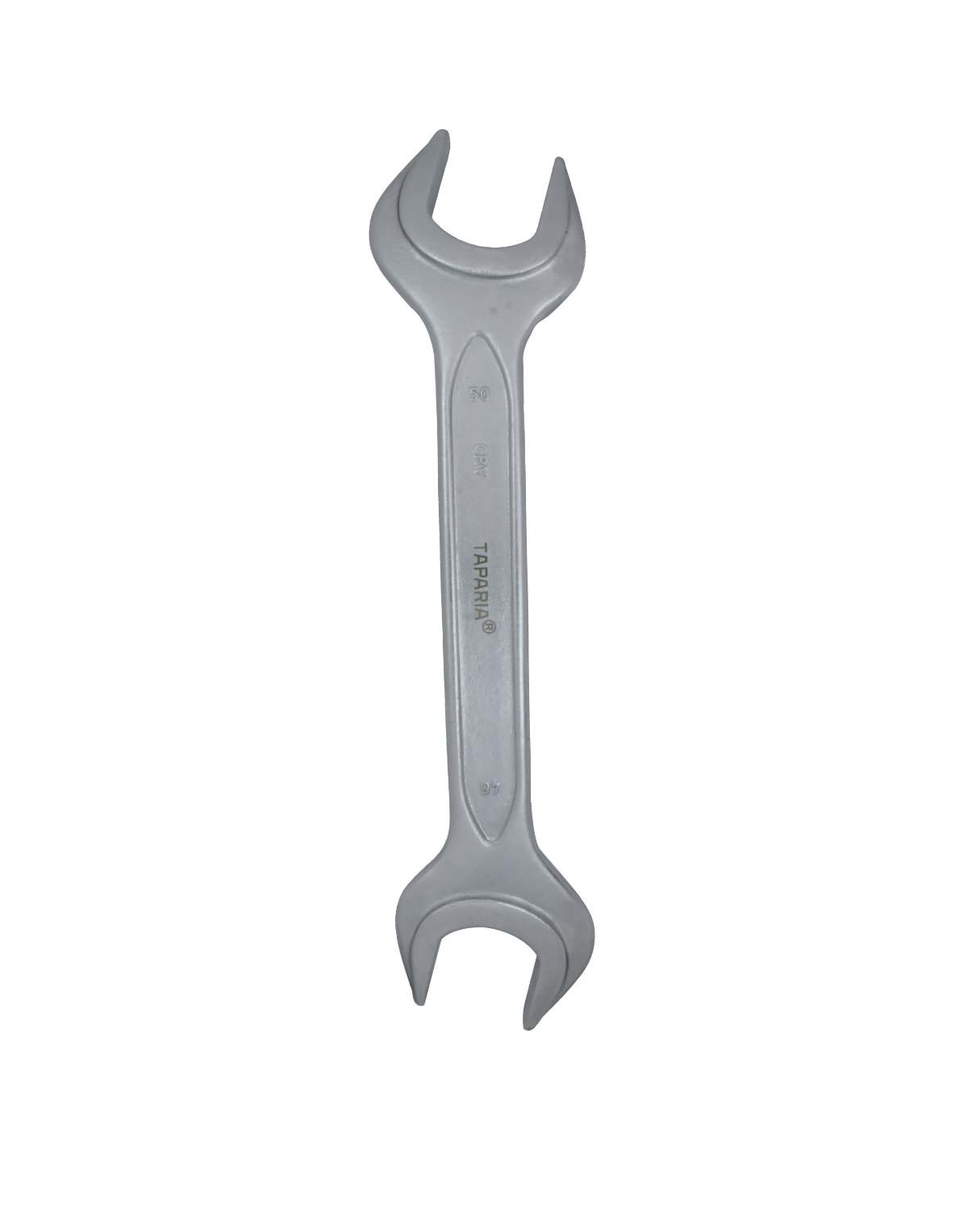

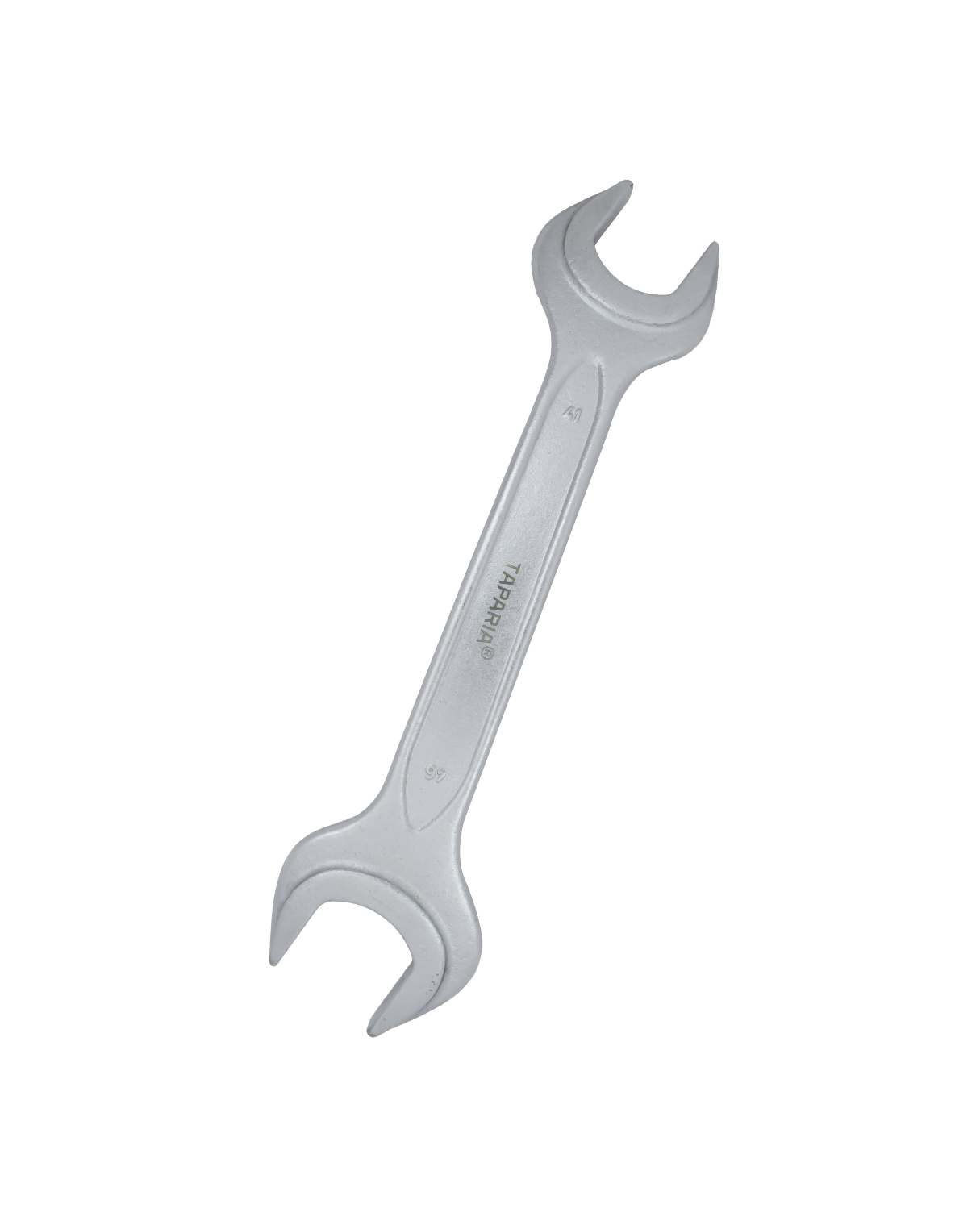

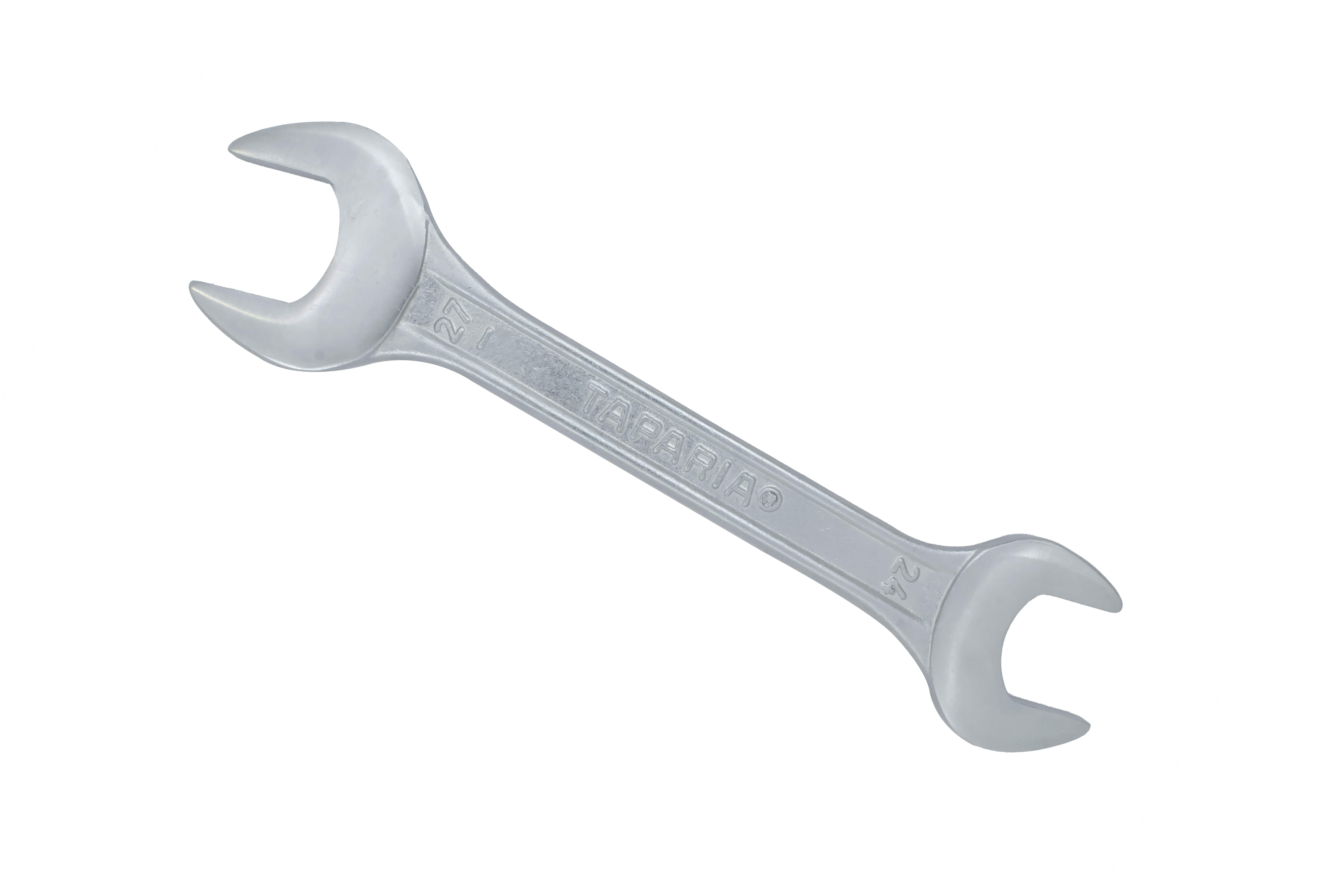

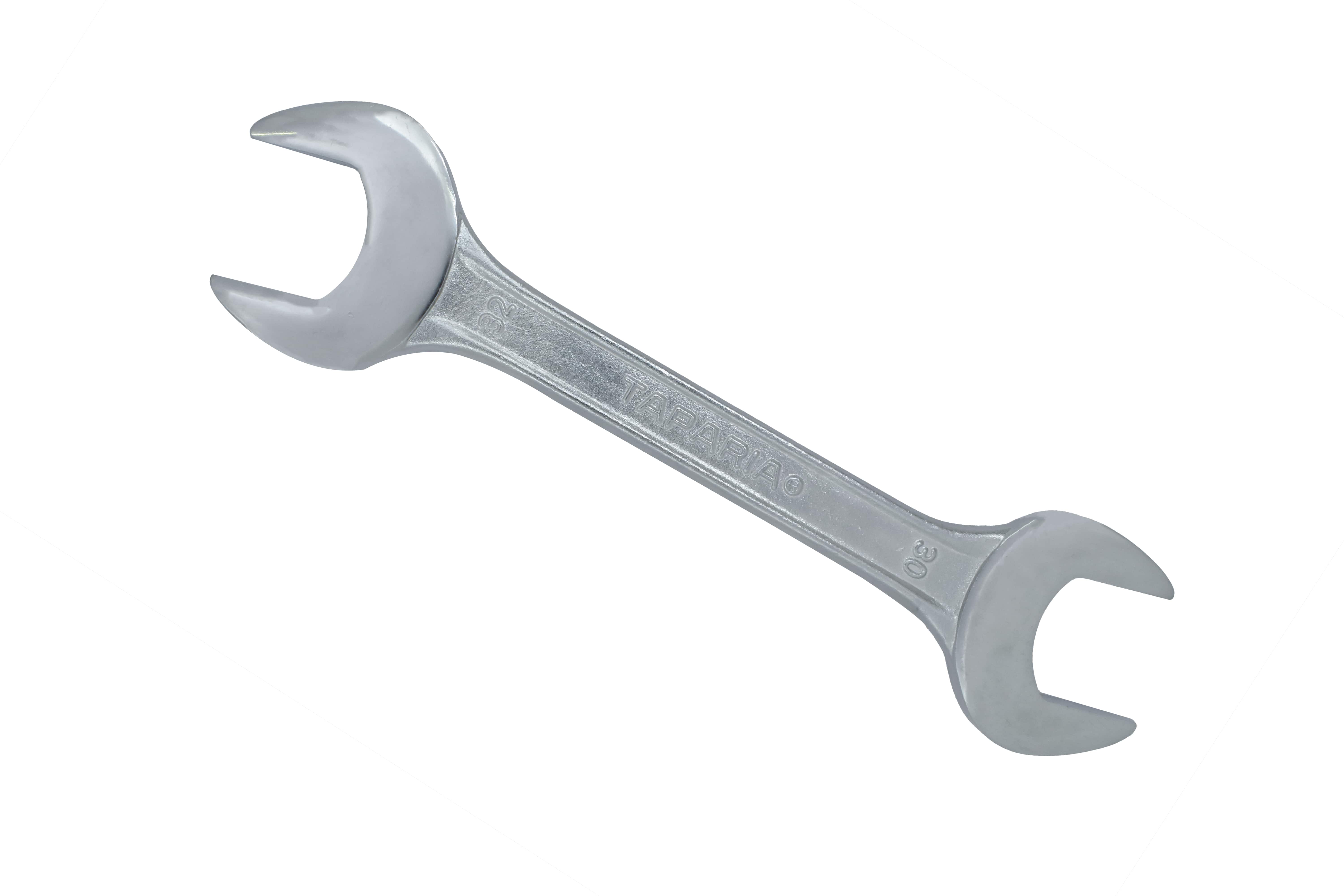

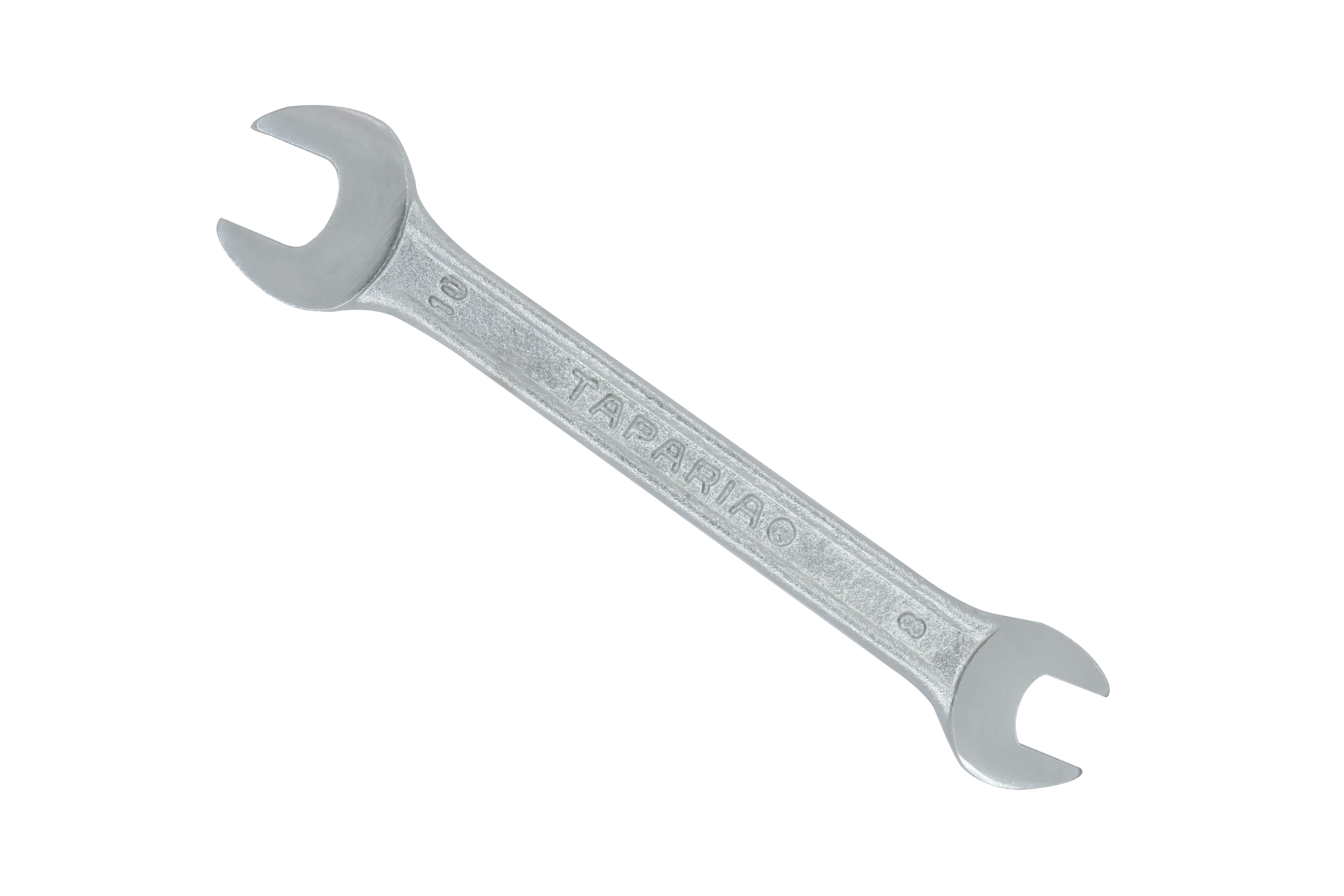

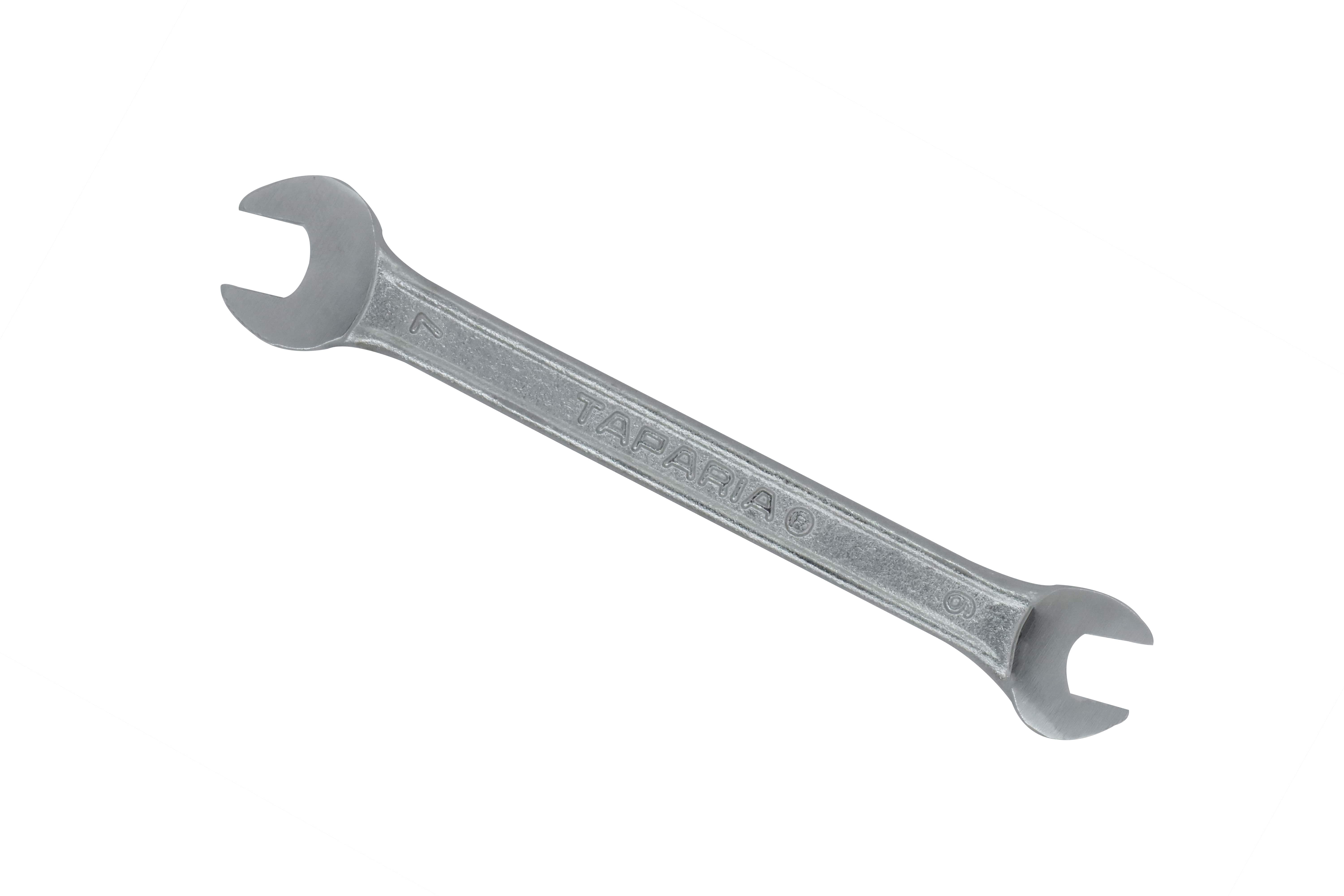

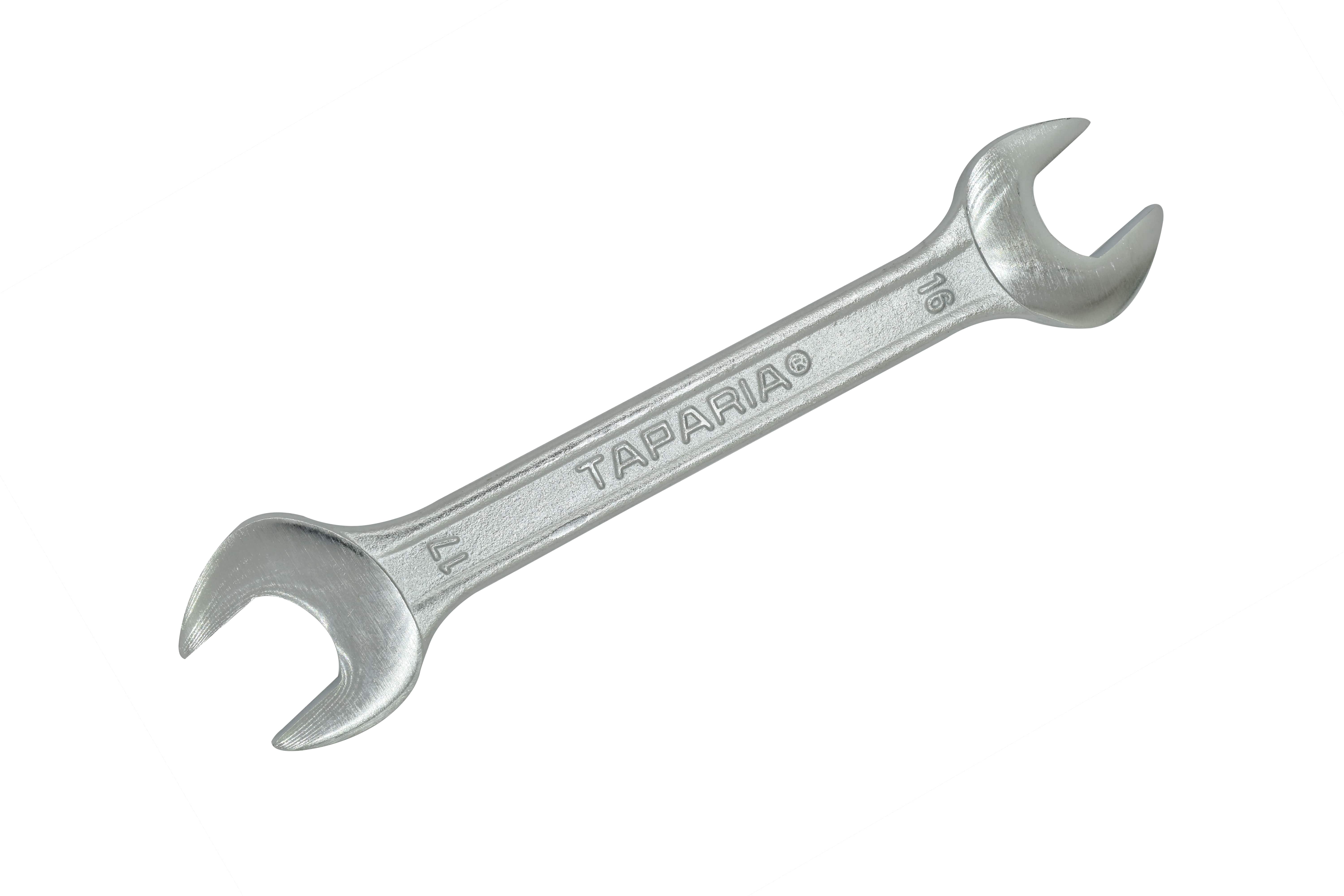

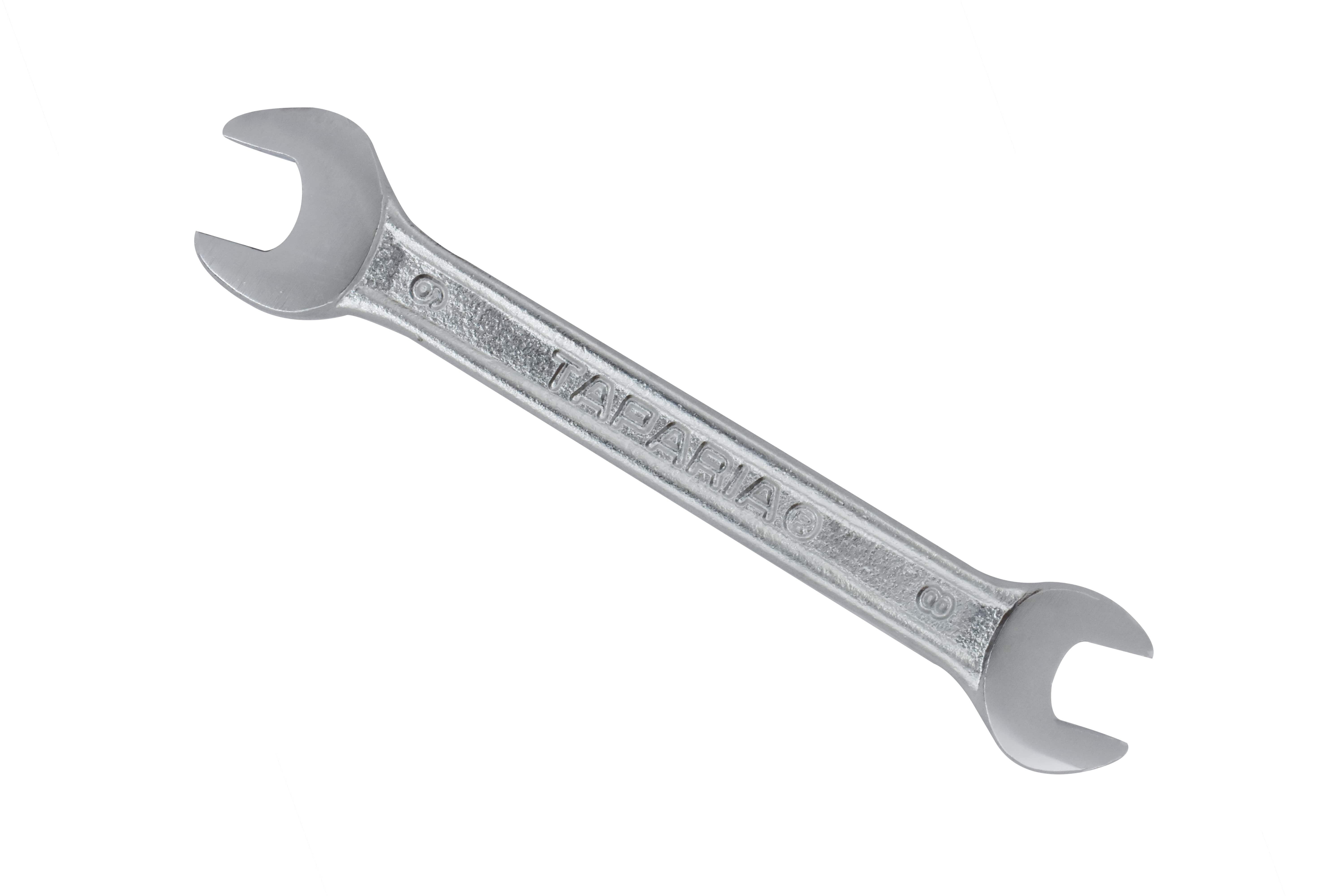

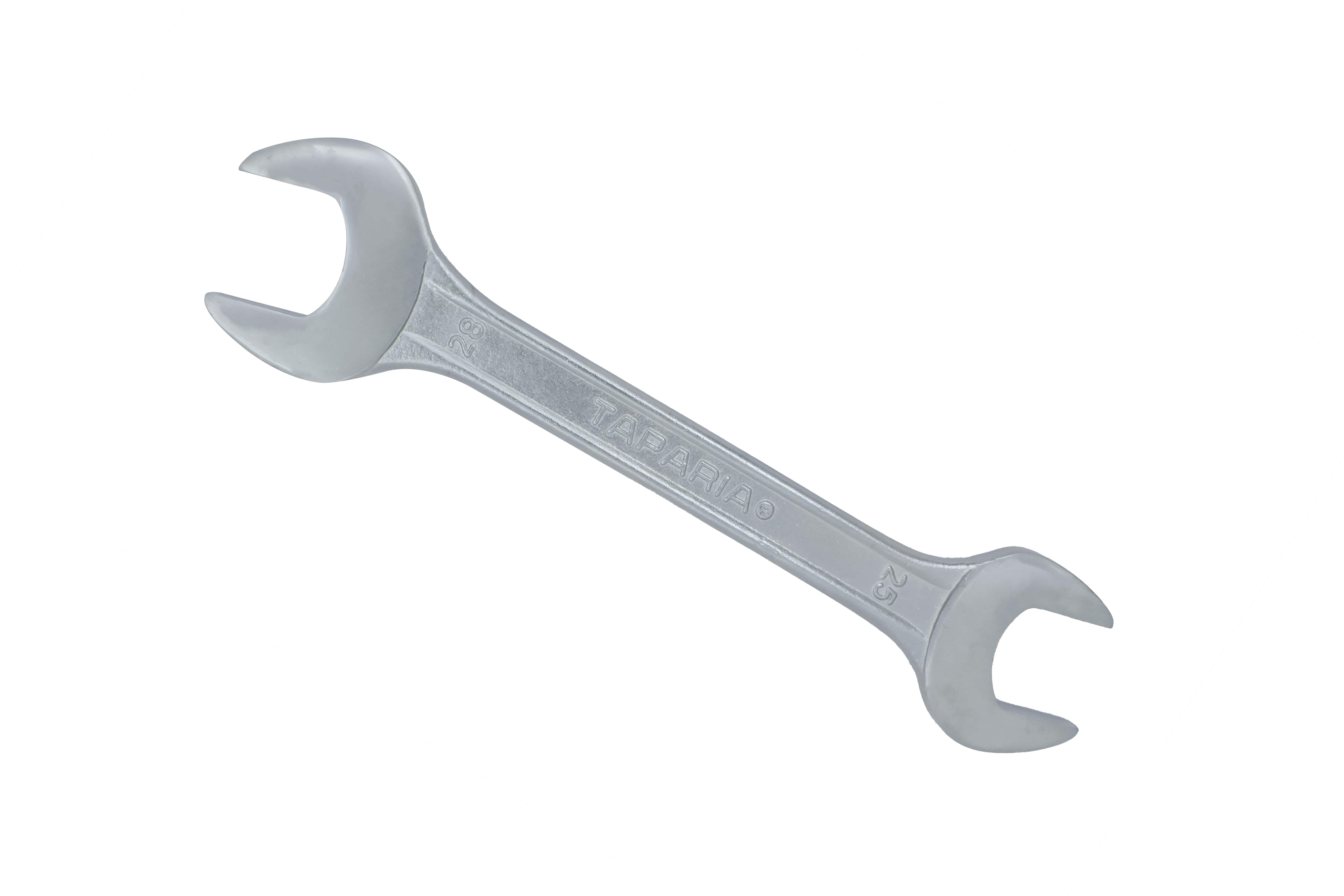

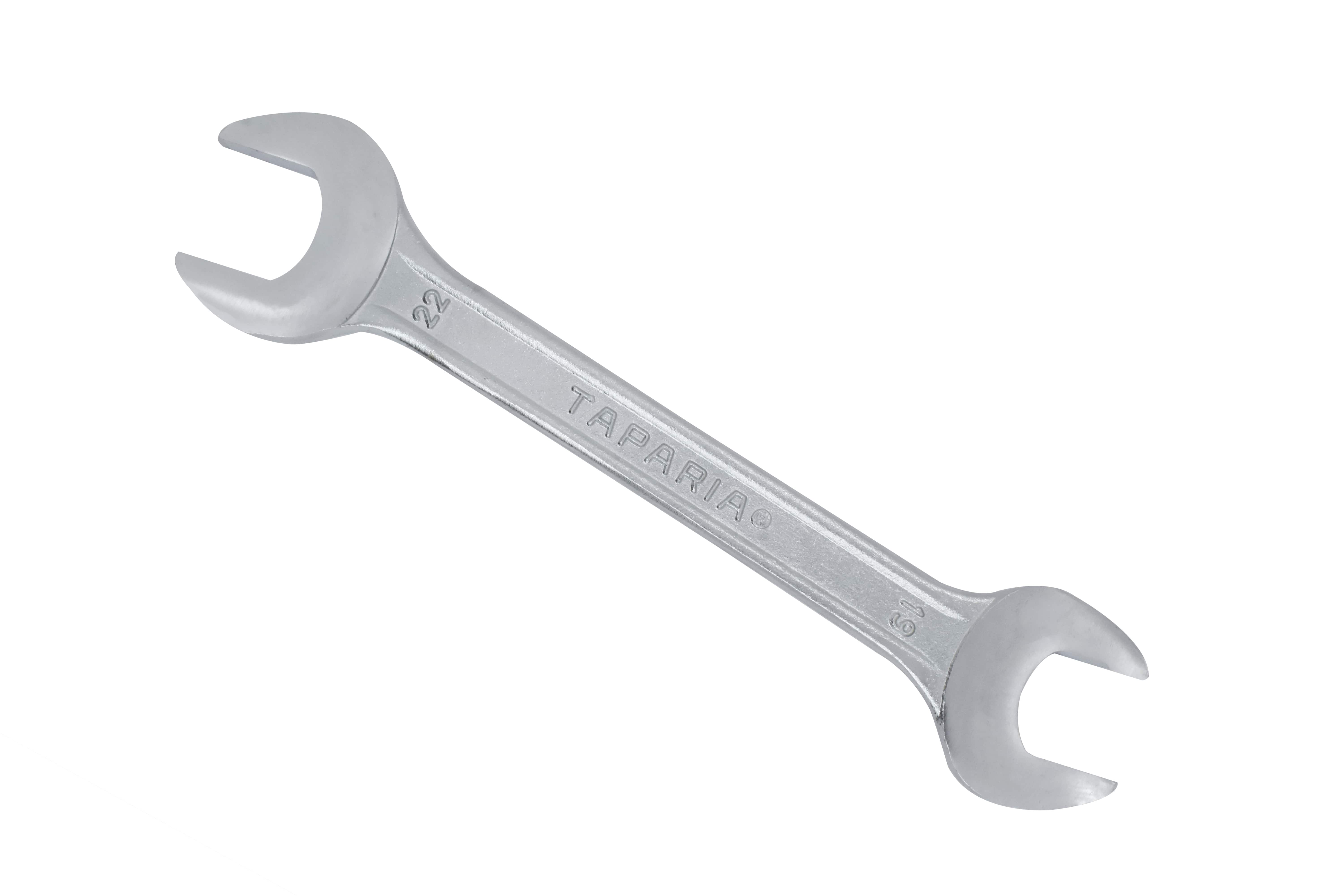

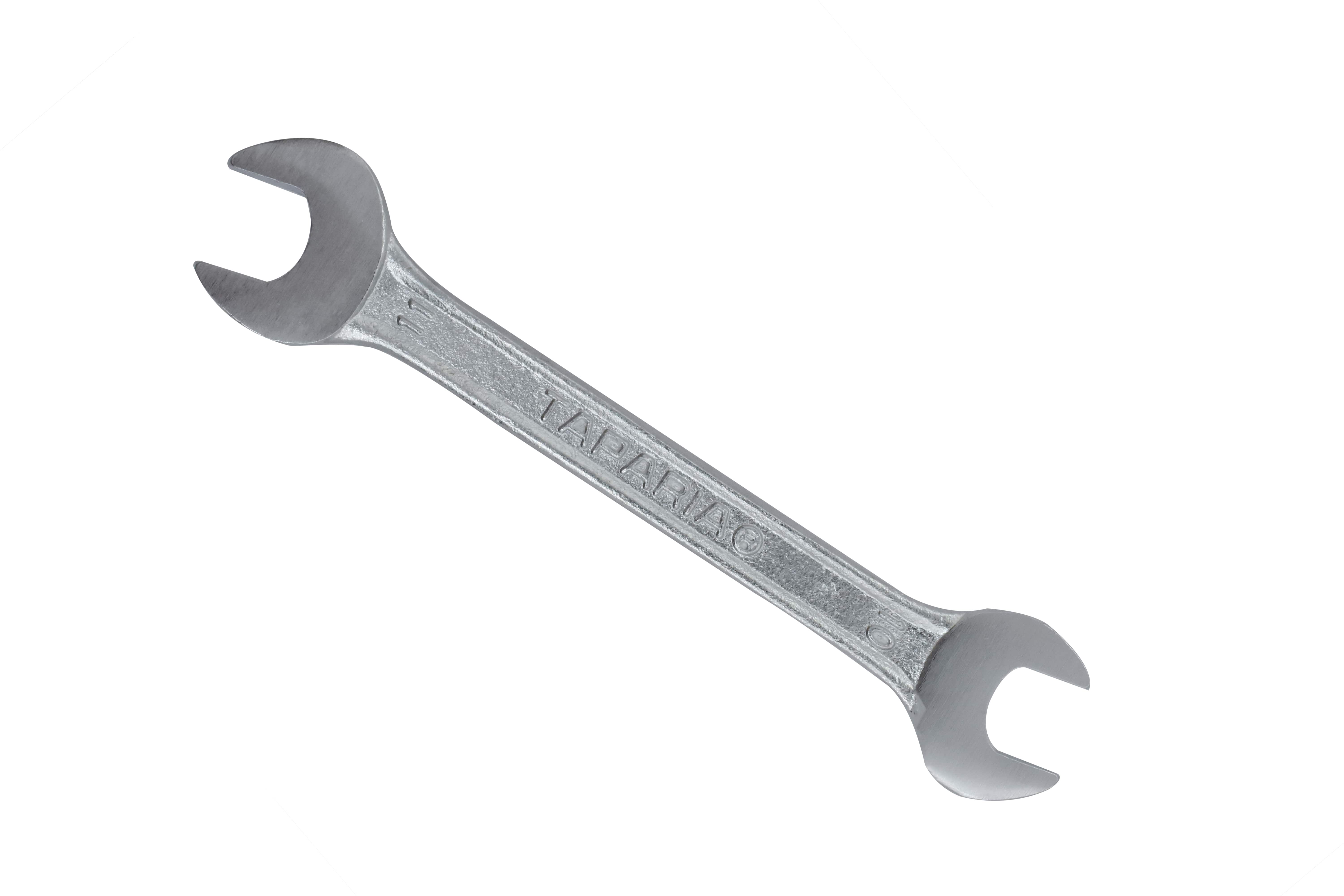

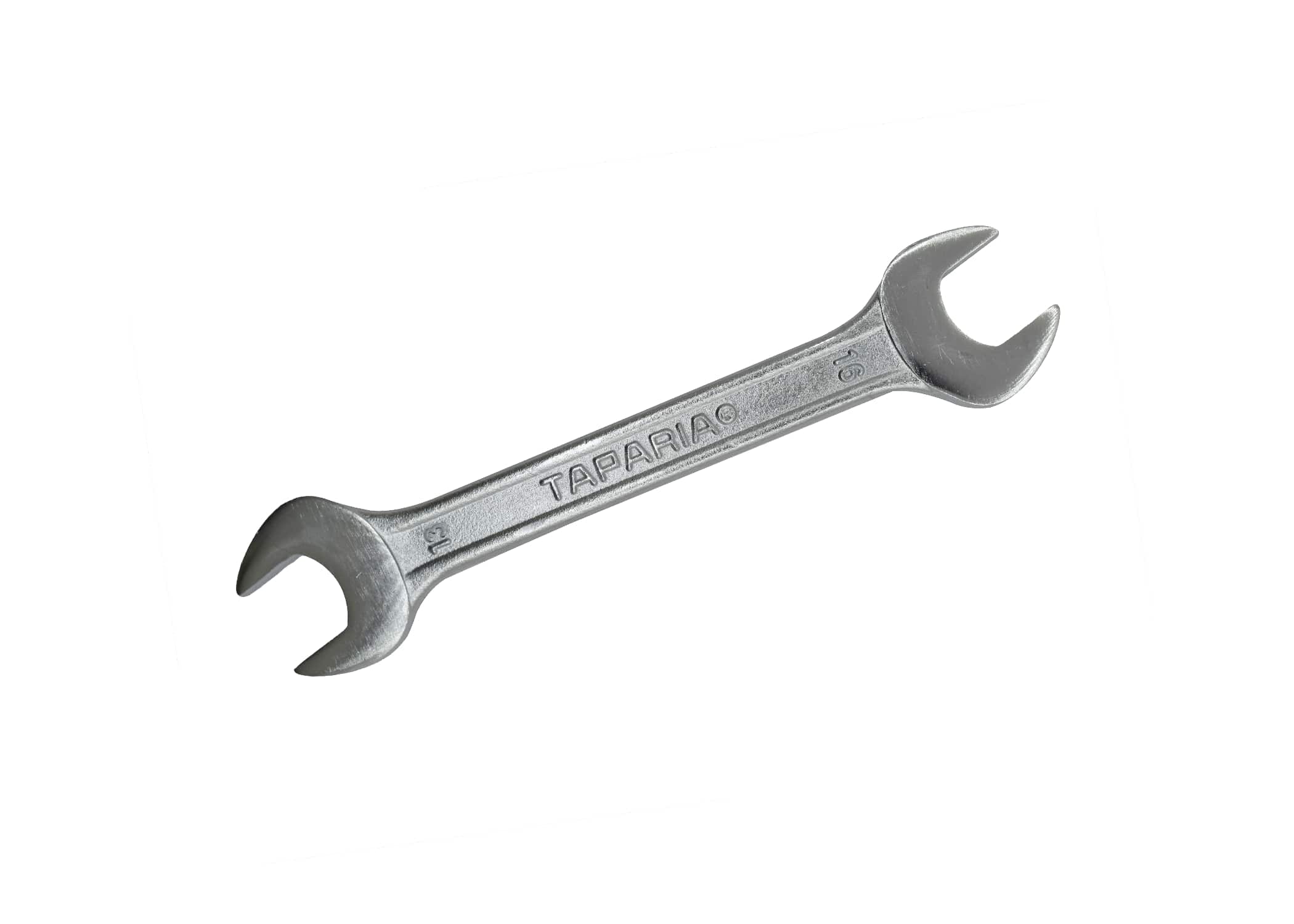

Product Image
