Product Overview

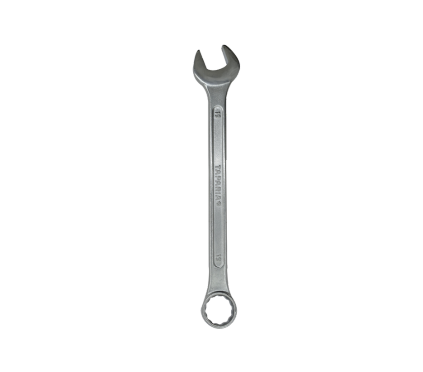

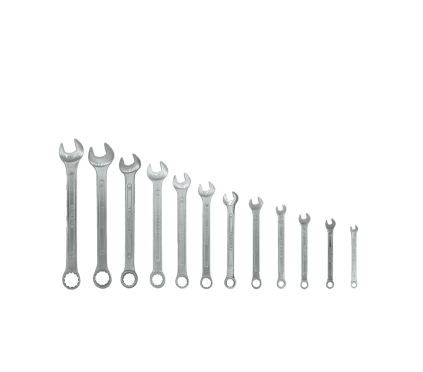

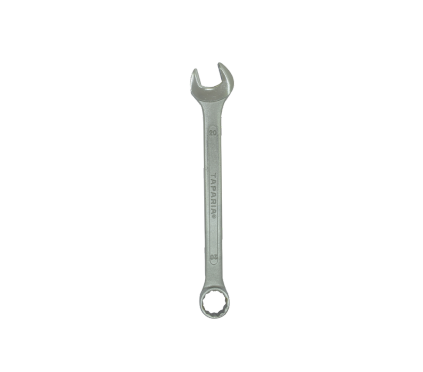

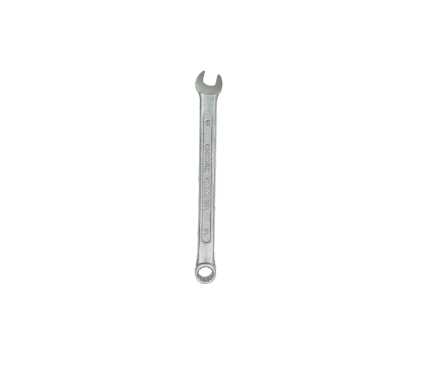

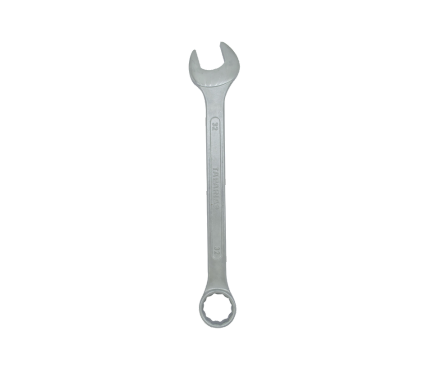

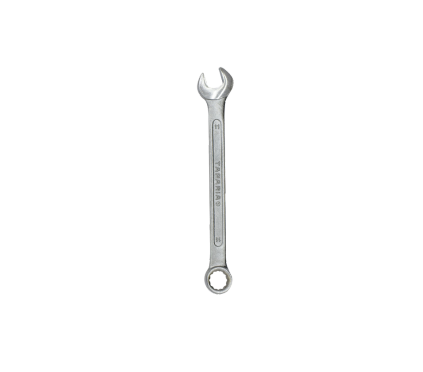

COMBINATION SPANNER - CHROME PLATED

PRODUCT NO. AND SIZE	D 1	D 2	T 1	T 2	L	WEIGHT GRAMS
CS 06	11.0	13.0	5.5	4.5	100	150
CS 07	12.0	15.0	6.0	5.0	110	200
CS 08	14.0	18.0	6.5	5.0	120	300
CS 09	16.0	20.0	7.0	5.5	130	400
CS 10	18.0	22.0	7.5	5.5	140	550
CS 11	19.0	23.5	8.0	5.5	150	516
CS 12	20.0	25.5	8.5	6.0	160	600
CS 13	22.0	28.0	9.0	6.0	170	660
CS 14	23.5	30.5	9.5	7.0	180	1180
CS 15	24.5	32.0	10.0	7.0	190	900
CS 16	25.5	34.0	10.5	7.5	200	1060
CS 17	28.0	35.0	11.0	7.5	210	1280
CS 18	28.5	37.0	11.5	7.5	220.	1450
CS19	30.0	39.5	11.5	8.0	230	1560
CS 20	30.5	42.0	12.0	8.0	240	1000
CS 21	32.5	42.5	12.0	9.0	250	1150
CS 22	34.0	45.0	13.0	10.0	260	1380
CS 23	35.0	46.0	13.5	10.0	270	1300
CS 24	37.0	49.0	13.5	10.0	280	1300
CS 25	38.0	51.0	14.5	10.0	290	1525
CS 26	39.5	54.5	13.5	9.0	300	1750
CS 27	40.0	55.0	15.0	10.5	310	1750
CS 28	43.0	57.0	14.0	10.0	320	1950
CS 30	46.0	60.0	16.5	10.5	340	2050
CS 32	48.5	64.0	16.5	10.5	360	2650

Special Features

Salient Features

Drop forged from suitable high grade Chrome- Vanadium steel.
Scientifically heat treated to give maximum strength and wear resistance.
Slightly rounded shank -sand blasted â€“fit snugly in the hand and gives comfortable grip.
Good accessibility in confined spaces due to slim and practical design.
Head angle at open end is 15 0 which permits use in confined spaces.
Clearly marked â€“facilitates choice of right size.
I-section design of handle and heads combines strength with low weight.
Thoroughly corrosion protected with Nickel-Chrome finish.

Available in different sizes.i.e A/F 6 To A/F 50 mm.Minimum Torque Value in Kg.m:

Product Size	Torque Value in Kg.m ( Open End )	Torque Value in Kg.m (Ring End)
CS6	0.6	1.8
CS7	0.92	2.57
CS8	1.35	3.51
CS9	1.87	4.62
CS10	2.52	5.92
CS11	3.26	7.41
CS12	4.19	9.08
CS13	5.24	10.9
CS14	6.47	13.04
CS15	7.84	15.29
CS16	15.08	26.6
CS17	10.91	20.48
CS18	13.04	23.44
CS19	15.09	26.6
CS20	17.53	28.95

COMBINATION SPANNERS

Minimum Torque Value in Kg.m:

Product Size	Torque Value in Kg.m ( Open End )	Torque Value in Kg.m (Ring End )
CS21	22.93	37.51
CS22	26	42
CS23	29.3	46
CS24	32.8	50.6
CS25	36.6	55.5
CS26	40.7	60.6
CS27	45	66
CS28	54.6	77.5
CS30	65.5	90.1
CS32	76.2	96.8
CS33	81	104
CS34	85.7	111.13
CS35	91	119
CS36	101	135
CS38	112	151.89
CS40	118	161
CS41	123.4	170.26
CS42	135.5	189.84
CS44	148	202
CS46	161.2	232.71
CS50	175	256

TAPARIA combination spanners generally Conform to I.S. 6389-1998
