Salient Features

• The blade is made from high grade Silico – Manganese steel.
  Scientifically heat treated blade gives maximum strength & wear resistance.
  The tip is precision – ground to ensures firm grip in the screw slot.
  The blade tip is magnetized to lift small screws from confined spaces or to hold the screw in position.
  Bright & smooth Nickel Chrome plating finish effectively protects blade against corrosion.
  The handle is made from high grade special Plastic to enable high strength and durability.
  The handle is precisely designed to give comfortable grip even at higher torque.
  The specially designed steel cap and blade assembly facilitates the striking screw driver for hammering without damaging the handle.
  In electrician pattern, PVC insulation on blade protects from electric shock & withstands for high voltage insulation test at 2000 V DC.

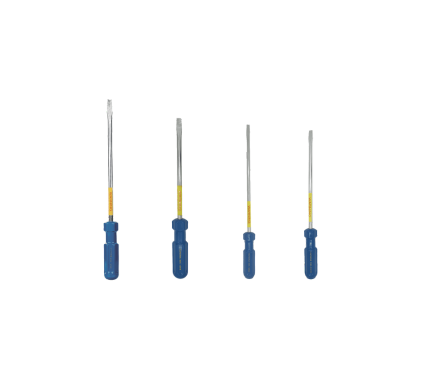

  Available in different patterns viz. Engineer’s, Electrician’s, Stubby, Phillips, Poker, Striking, Torx, Hexagon etc., Two-in-One (Black Tip) – Regular & Stubby.

  Minimum Torque Value in Kg.m:

  Flat Tip

  Tip Width in mm	Tip Thickness in mm	Torque Value in Kgm
  1.6	0.4	0.03
  2.3	0.4	0.04
  3	0.4	0.05
  3	0.5	0.08
  3.5	0.5	0.09
  4	0.6	0.15
  4.3	0.6	0.16
  5	0.6	0.18
  6	0.6	0.21
  5	0.8	0.32
  6	0.8	0.39
  8	1	0.8
  8	1.2	1.17
  10	1.2	1.46
  10	1.5	2.29
  13	1.9	4.78

  • Philips Tip

  Tip No	Torque Value in Kgm
  PH-00	0.05 *
  PH-0	0.14
  PH-1	0.38
  PH-2	1.04
  PH-3	3.9
  PH-4	5.9

  TAPARIA Screwdrivers are generally Conform to I.S.844-1979
