| PRODUCT NO. | DESCRIPTION |
| SA 46 | Hexagonal Sockets :- Extension Bar - A 743 & A 753 Universal Joint - A 773 Sliding T Bar - A 733 Flexible Ext. Bar - A 763 Ratchet Handle -A 715 Spinner Handle - A 704 Hexagonal Bits - 3,4,5,6, 7 & 8mm Flat Tip Bits - 4, 5.5 & 7mm Phillips Bits - PH1 , PH2 & P3H Torx Tip Bits - T8 , T10 , T15 , T20 , T30 & T40 Pozidrive Bits - PZ1 , PZ2 & PZ3 Hex . Allen Keys - 1.27 , 1.5 , 2 & 2.5mm |

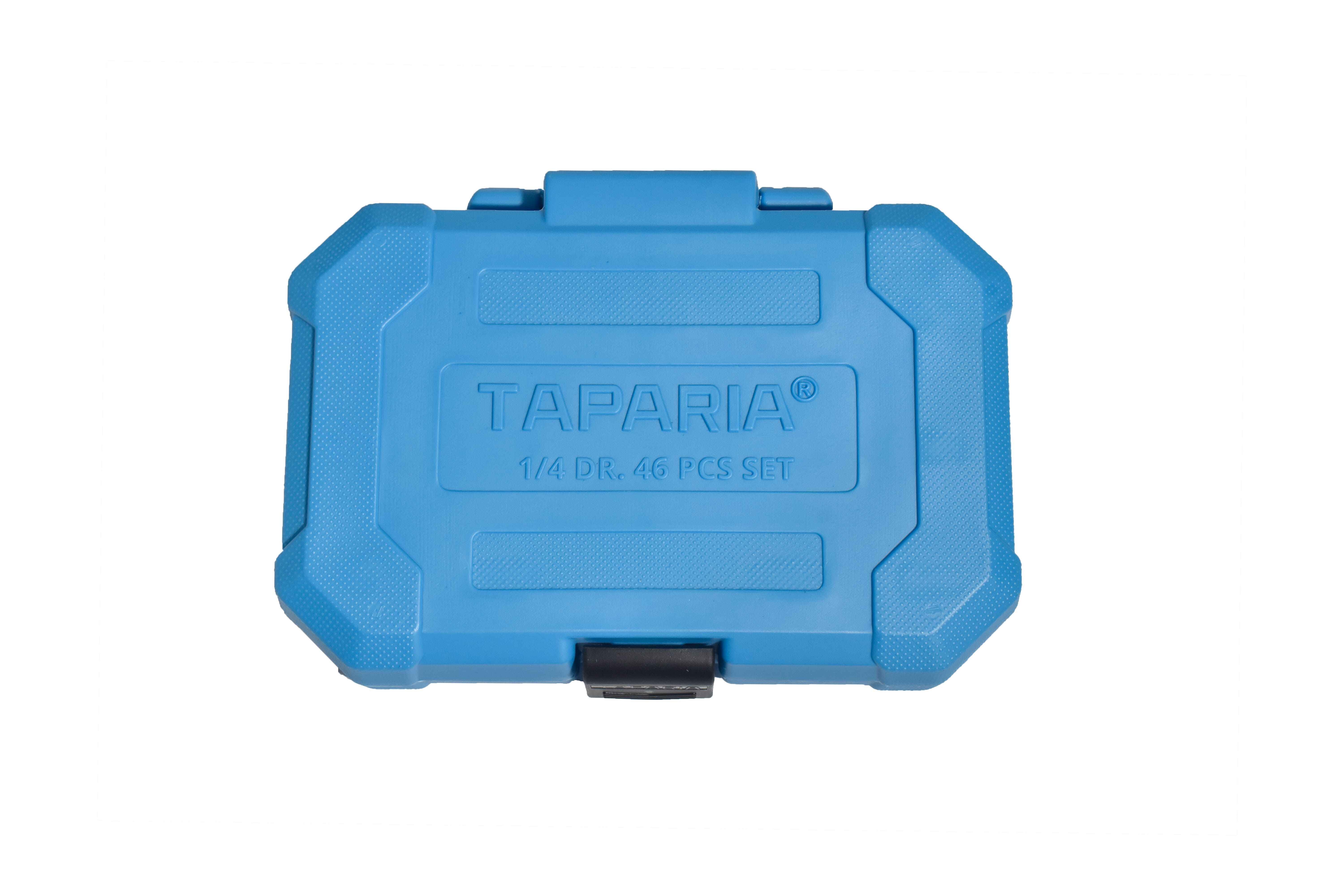

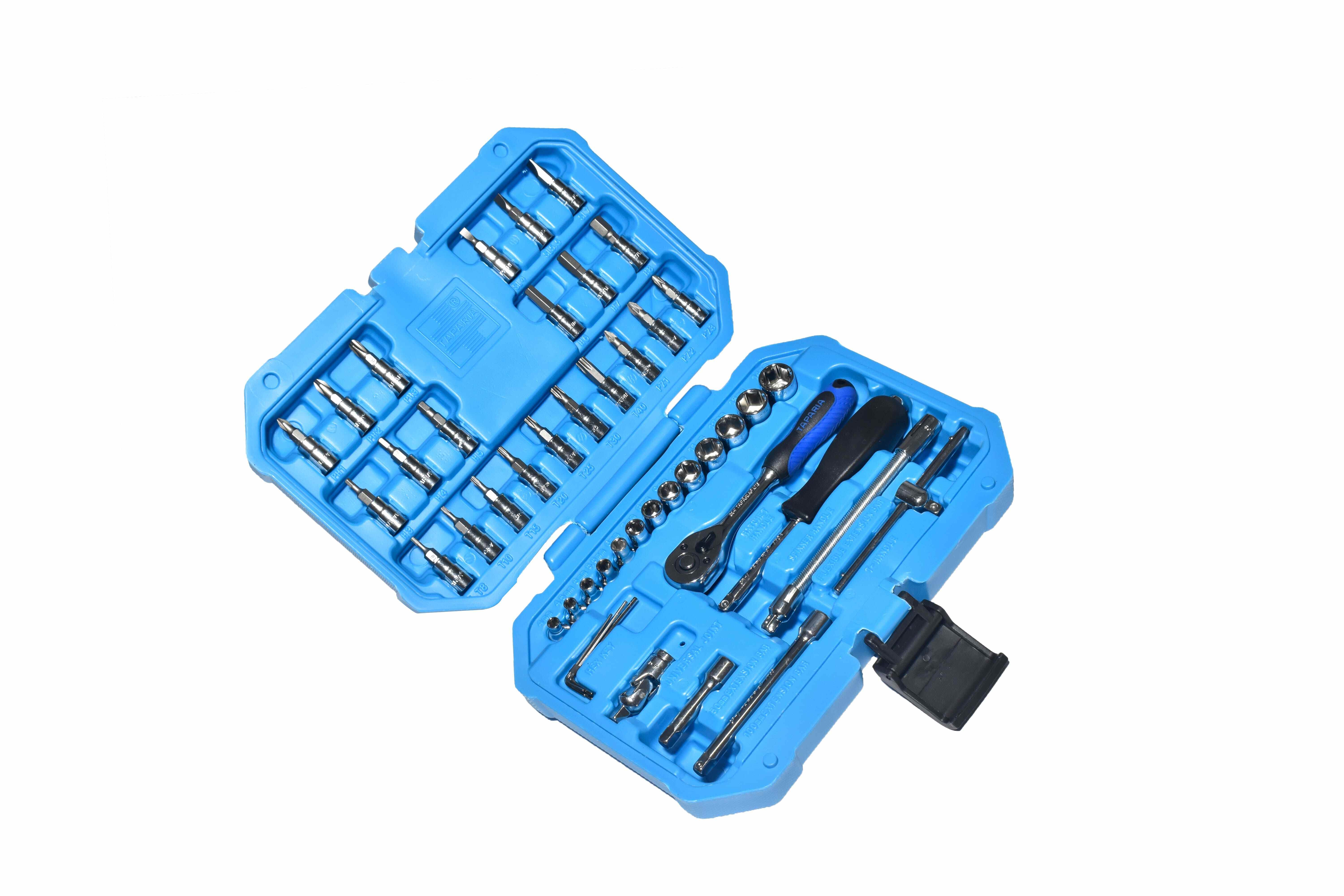

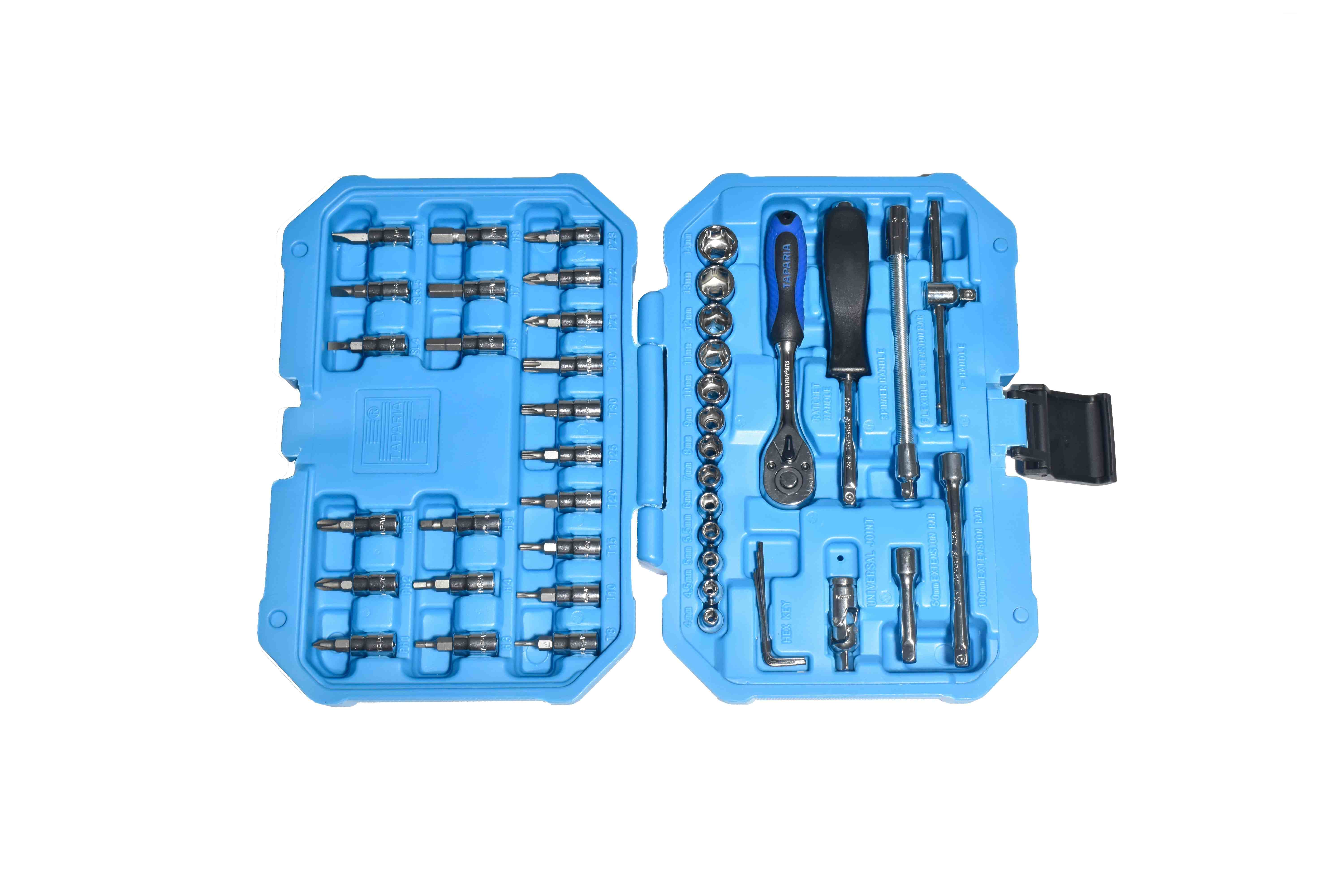

1/4 DRIVE - 46 PCS SET
Sockets are forged from high grade Chrome Vanadium steel & Impact sockets from Cr-Mo steel.
Socket bits are made from High grade alloy steel.
Scientifically heat treated Sockets & Bits to give maximum strength and wear resistance.
Special rubber ring in spark plug socket to prevent damage of plug.
Extra-long design of spark plug socket for easy operation without any damage to plug.
Bit is press fitted in sockets adequately.
Special flower type profile drive in E sockets.
Nickel Chrome plating & phosphate finish to enable rust prevention and good looks.
Socket bits are specially coated and oiled for rust prevention.
Available in 1/4" (6.3 mm), 3/8" (9.5mm), 1/2" (12.7mm) , 3/4"(19mm) and 1" (25.4mm) square drive with E socket, hexagonal / Bi-hexagonal patterns in different sizes.
| Bit Sockets are available in | available in |
| Hex | 3, 4, 5, 6, 7, 8, 10, 12, 14, 17 mm. |
| Torx | T10, T20, T25, T30, T40, T45, T50, T55, T60 & T70 |
| Philips | Tip No 1, 2 & 3. |
| Flat | 4, 5.5 & 7 mm. |
| Pozy | PZ1, PZ2 & PZ3. |
Minimum Torque Value in Kg.m for Spark plug
| A/F | Torque Value in Kg.m |
| 16 mm | 38.4 |
| 21 mm | 58 |
Minimum Torque Value in Kg.m:
| A/F | 6.3mm ( Square Drive ) Hex | 6.3mm Bi-hex ( Square Drive ) | 9.5 mm ( Square Drive ) Hex | 9.5 mm ( Square Drive ) Bi-hex | 12.7 mm ( Square Drive ) Hex | 12.7 mm ( Square Drive ) Bi-hex | 19 mm ( Square Drive ) Bi-hex | 19 mm ( Square Drive ) hex | 24 mm ( Square Drive ) hex | 24 mm ( Square Drive ) Bi-hex | 6.3mm ( Torque Value in Kg.m ) | 9.5 mm ( Torque Value in Kg.m ) | 12.7 mm ( Torque Value in Kg.m ) | 19 mm ( Torque Value in Kg.m ) | 24 mm ( Torque Value in Kg.m ) |
| 4 | √ | - | - | - | - | - | - | - | - | - | 1.06 | - | - | - | - |
| 4.5 | √ | -- | - | - | - | - | - | - | - | - | 1.28 | - | - | - | - |
| 5 | √ | - | - | - | - | - | - | - | - | - | 1.53 | - | - | - | - |
| 5.5 | √ | - | - | - | - | - | - | - | - | - | 1.81 | - | - | - | - |
| 6 | √ | - | √ | - | - | - | - | - | - | - | 2.09 | - | - | - | - |
| 7 | √ | - | √ | - | - | - | - | - | - | - | 2.73 | 3.38 | - | - | - |
| 8 | √ | - | √ | - | √ | √ | - | - | - | - | - | 4.63 | - | - | - |
| 9 | √ | - | √ | - | √ | √ | - | - | - | - | 3.42 | 6.1 | 12 | - | - |
| 10 | √ | - | √ | - | √ | √ | - | - | - | - | 5 | 7.81 | 14.98 | - | - |
| 11 | √ | - | √ | - | √ | √ | - | - | - | - | 5.89 | 9.78 | 18.14 | - | - |
| 12 | √ | - | √ | - | √ | √ | - | - | - | - | 6.82 | 12.02 | 21.61 | - | - |
