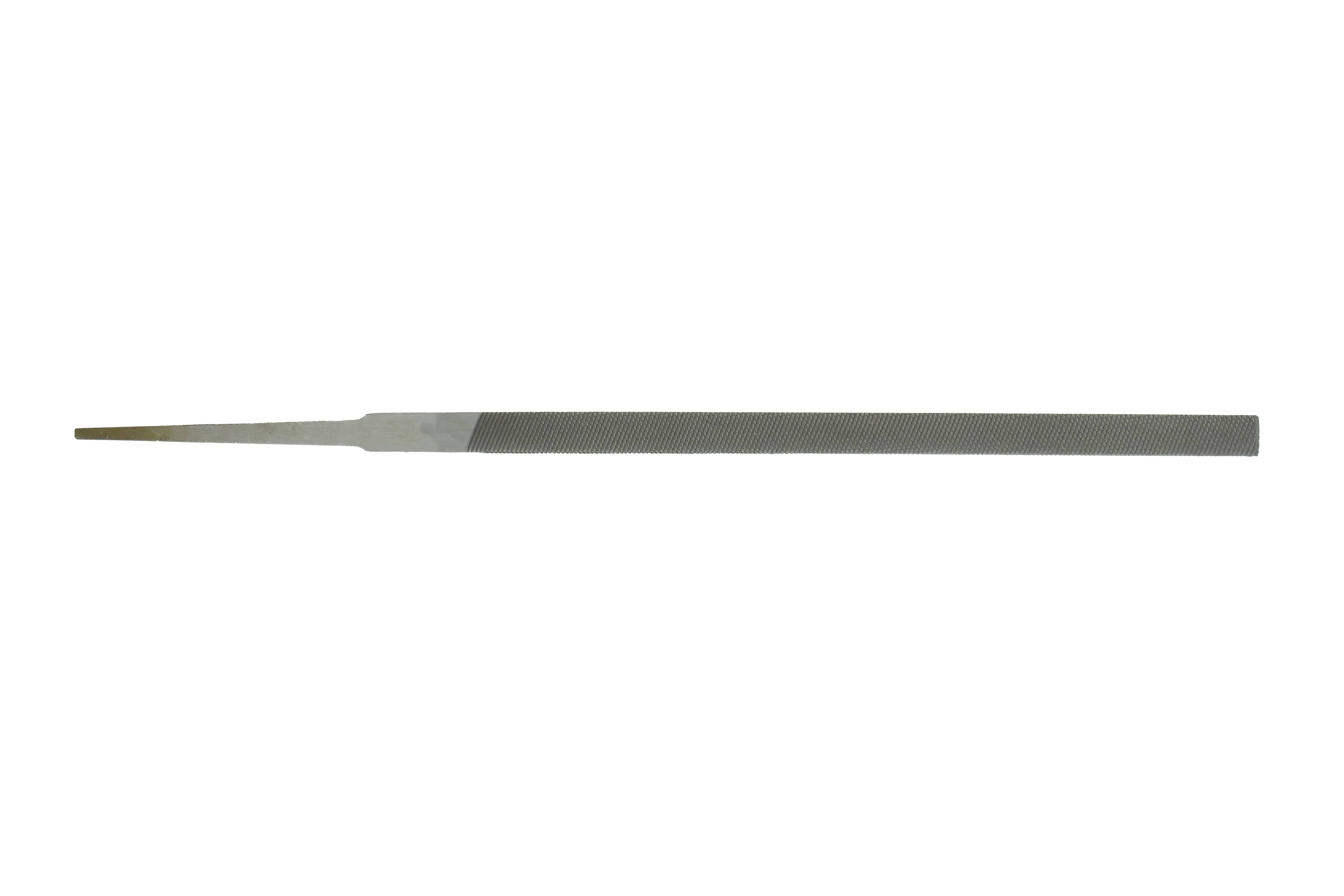

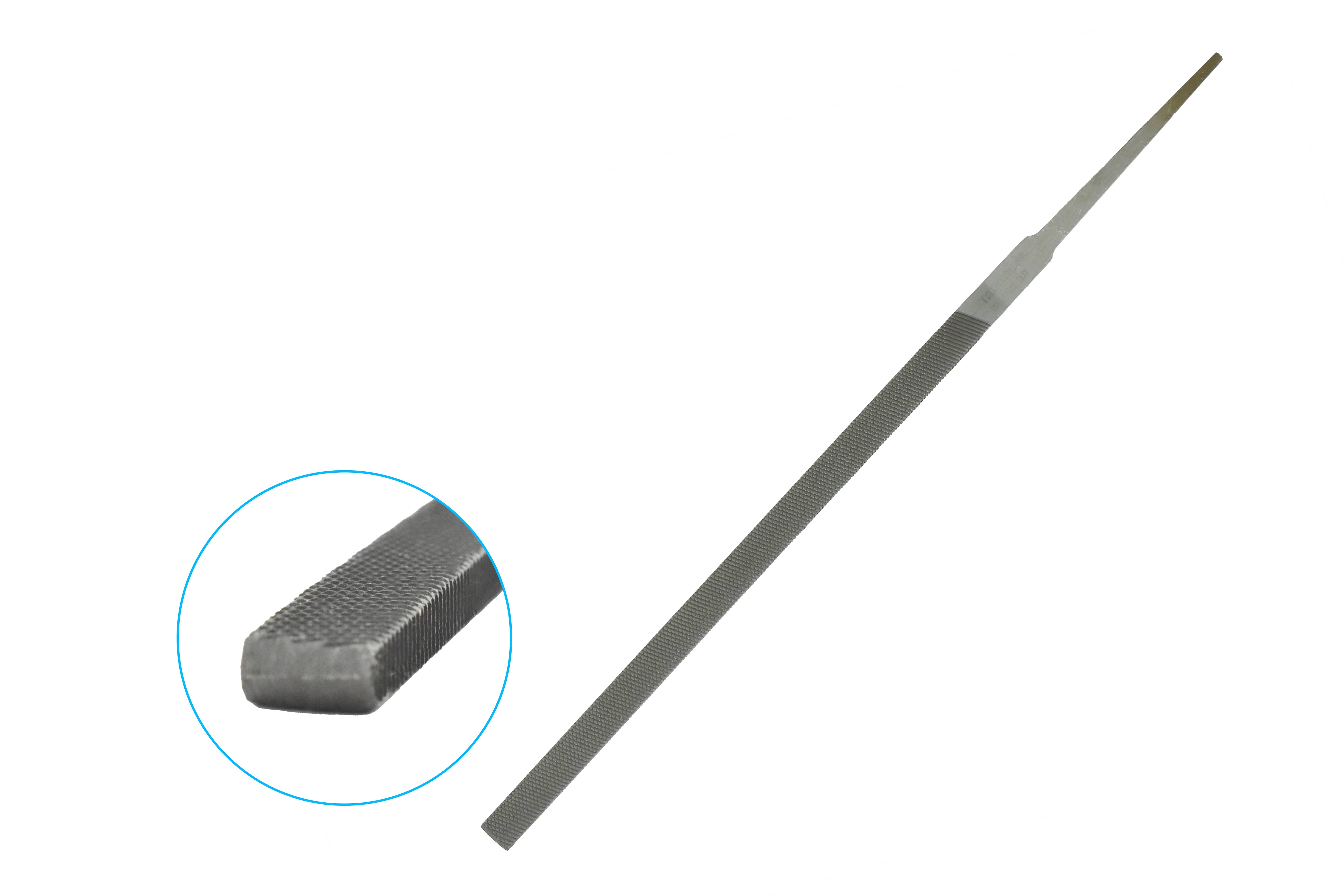

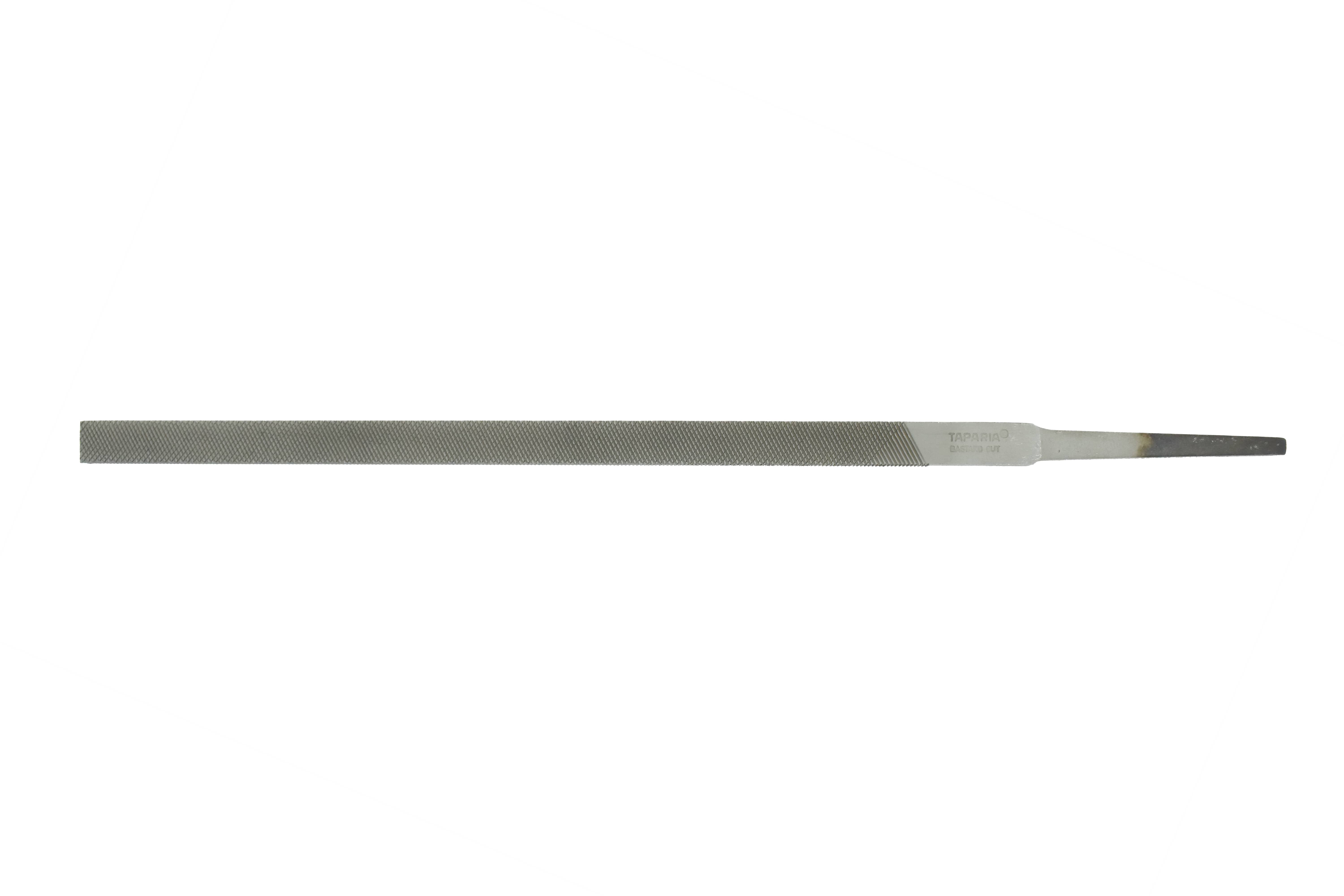

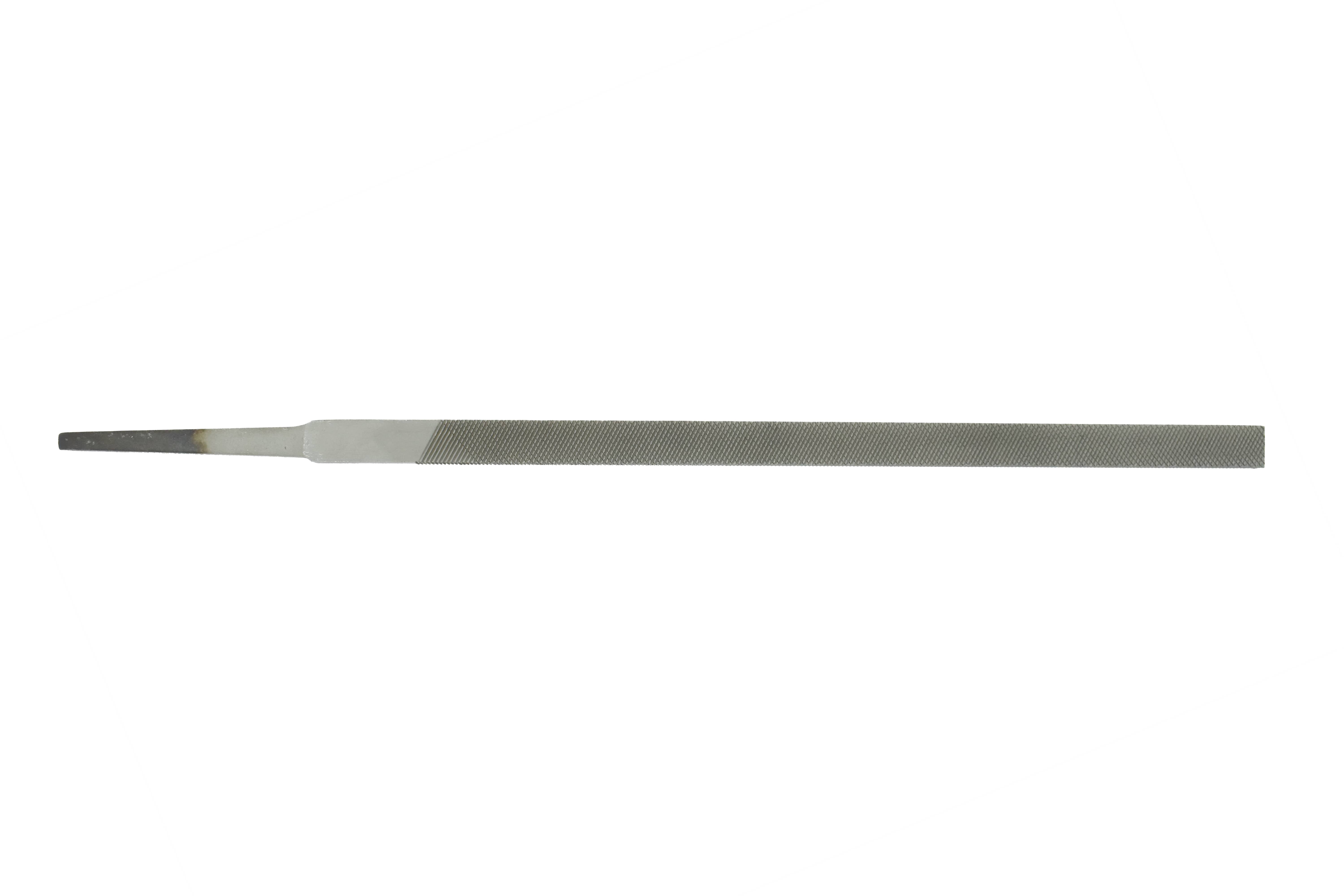

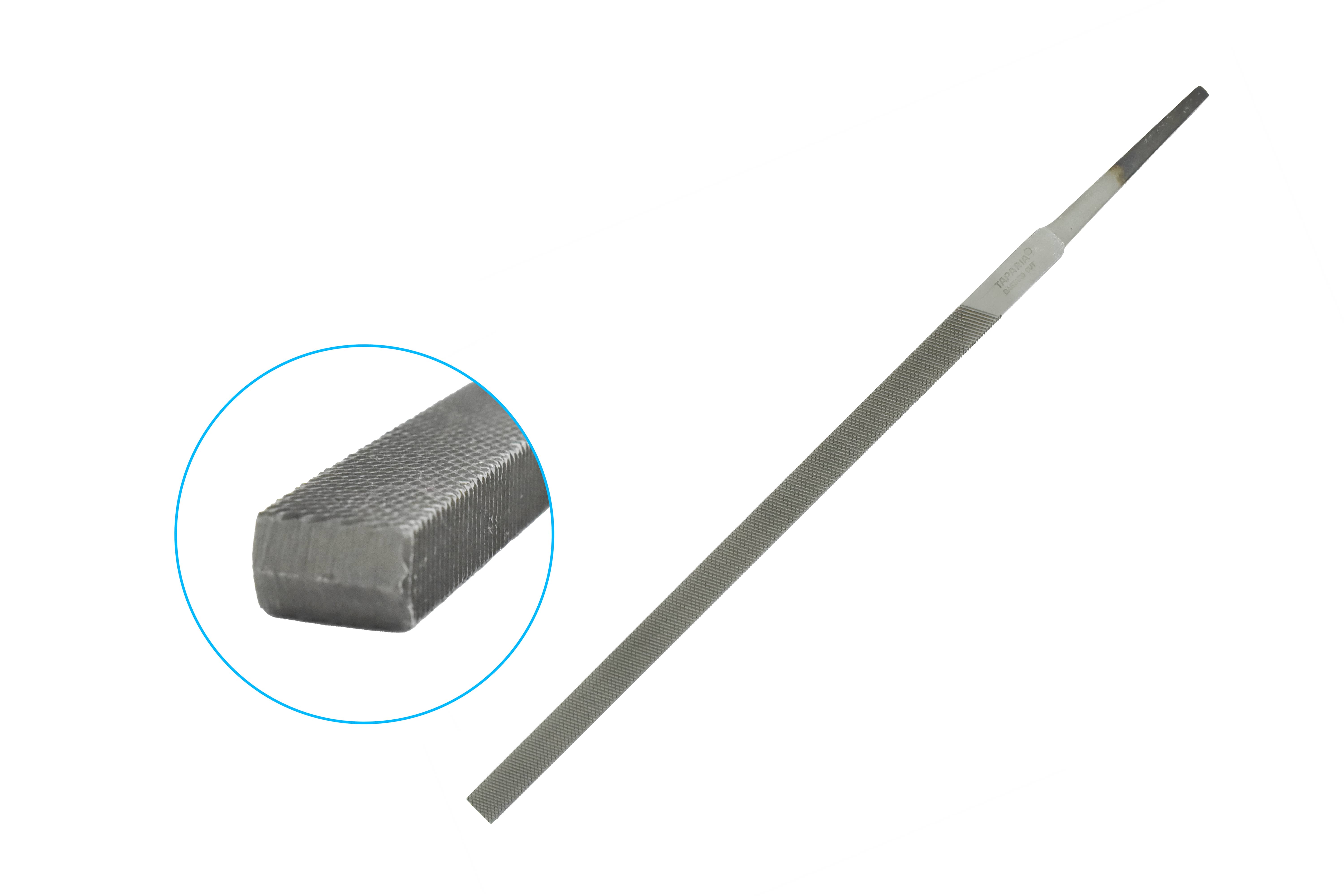

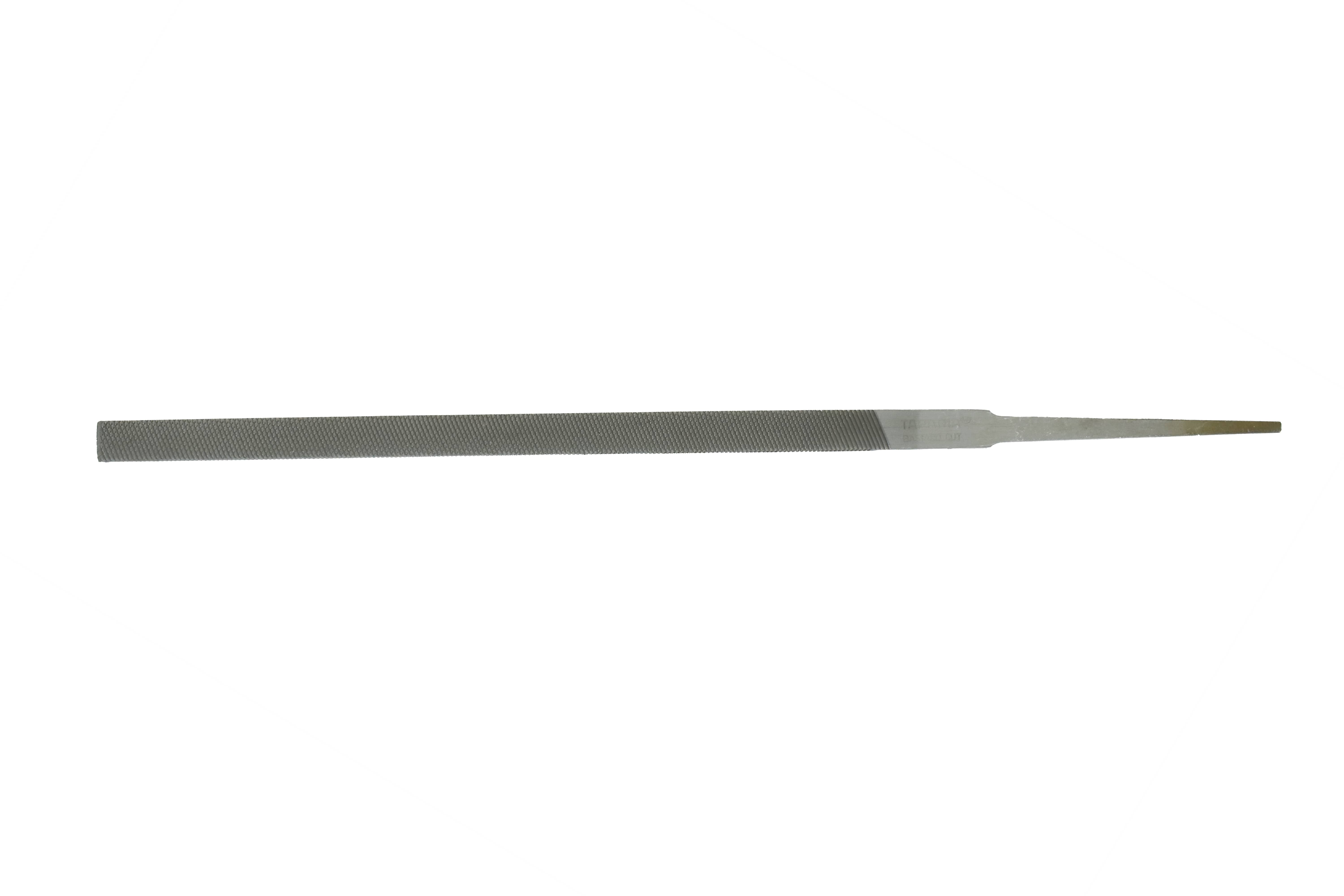

Pillar Narrow Files

Pillar Narrow Files

Product Overview



PRODUCT NO LBANO OF CUP CUTS PER CM WEIGHT GRAMS
PN 15011486.751130.25
PN 20012009.051110.86


Special Features


Salient Features

  • Made from high grade special alloy steel.
  • Taparia Files are designed with precise teeth geometry to efficiently remove stock through abrasion & achieving the desired finish across various shapes & materials.
  • Scientifically heat - treated to give maximum strength, wear resistance.
  • Surface treated to protect from rust/corrosion.
  • A new file should be used with light pressure in the beginning, preferable on surface which has been filed earlier.
  • In case of clogging of file teeth, clean the teeth with a soft metal wire brush.

Available in vide variety of sizes, shapes, cuts and tooth configurations

Type / ShapesSizes (in mm)Cuts
Machinist Files / Engineer's FilesMachinist Files / Engineer's FilesMachinist Files / Engineer's Files
Round Files100, 150, 200, 250, 300, 350Bastard, Second & Smooth
Hand Files100, 150, 200, 250, 300, 350Bastard, Second & Smooth
Round Files100, 150, 200, 250, 300, 350Bastard, Second & Smooth
Half Round Files100, 150, 200, 250, 300, 350Bastard, Second & Smooth
Three Square100, 150, 200, 250, 300, 350Bastard, Second & Smooth
Square100, 150, 200, 250, 300, 350Bastard, Second & Smooth
Knife Edge100, 150, 200, 250, 300Bastard
Pillar Narrow150, 200Bastard
Flat Handle250Bastard, Second
Warding100, 150, 200Bastard
Flat Super light250Bastard

Saw Files

Type / ShapesSizes (in mm)Cuts
Feather Edge125, 150Second
Pit Saw110Second
Heavy Taper100, 125,150, 200Second
Regular Taper100, 125,150Second
Slim Taper100, 125,150Second
Mill Files100, 150, 200, 250, 300, 350Bastard


Needle Files

Type / ShapesSizes (in mm)Cuts
Flat Files140, 160β€˜0’ Cut
Round Files140, 160β€˜0’ Cut
Half Round Files140, 160β€˜0’ Cut
Three Square140, 160β€˜0’ Cut
Square140, 160β€˜0’ Cut
Knife Edge140, 160β€˜0’ Cut


Type / ShapesSizes (in mm)Cuts
Wood Rasp
Flat Wood Rasp150, 200, 250Bastard, Second & Smooth
Flat Wood Rasp300, 350Bastard
Half Round Wood Rasp150, 200, 250Bastard, Second & Smooth
Half Round Wood Rasp300, 350Bastard

TAPARIA Files are generally Conform to I.S. 1931 :2000, 3587 : 1986 & 3152-1980.
