Salient Features

• Made from high grade Alloy Steel.
• Tip is  scientifically heat - treated to give maximum strength and wear resistance.
• Differiential hardening on hammering portion.
• Accurately machined
• Phosphated to protect against rusting.
• Deep knurling on body ensures firm grip.

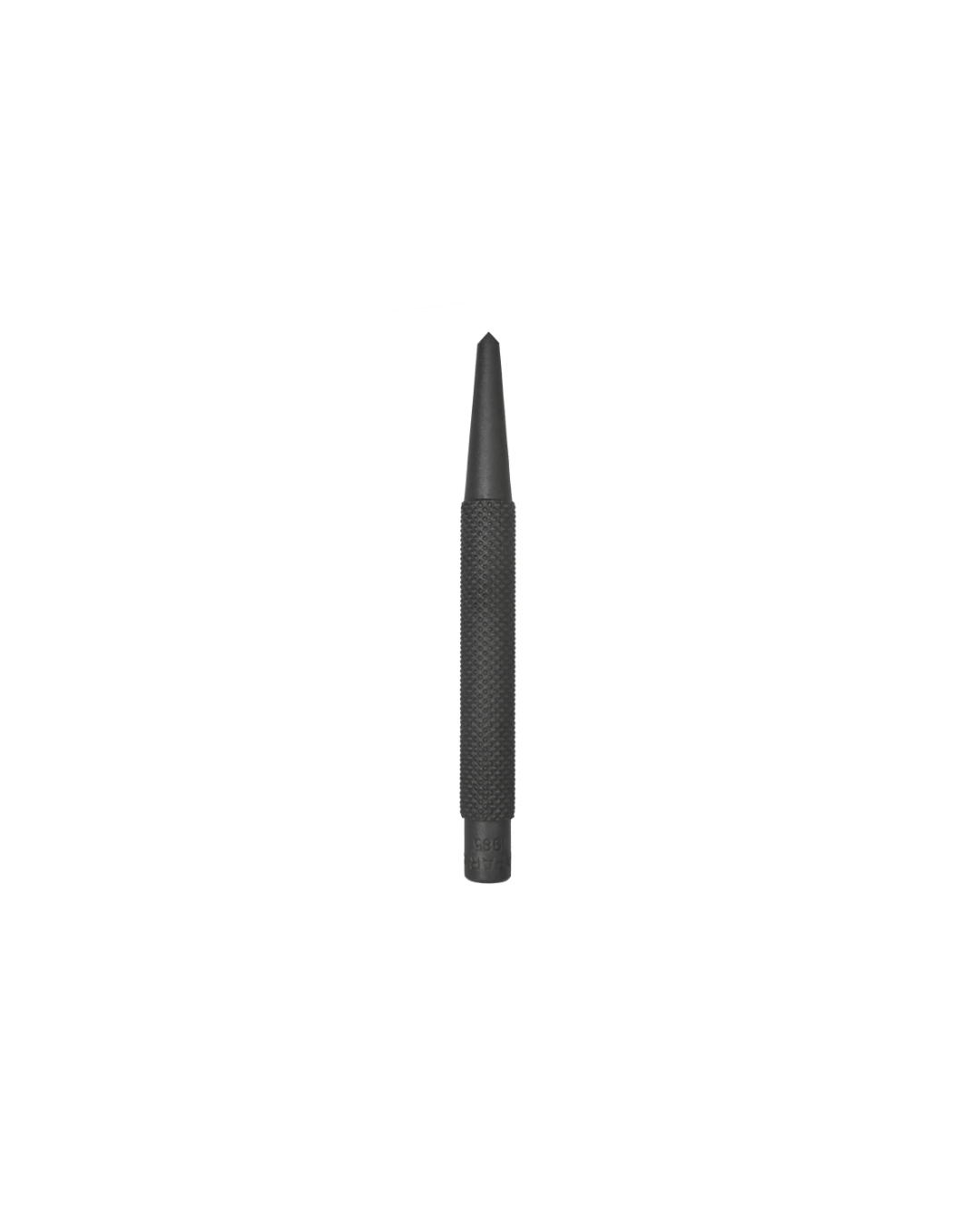

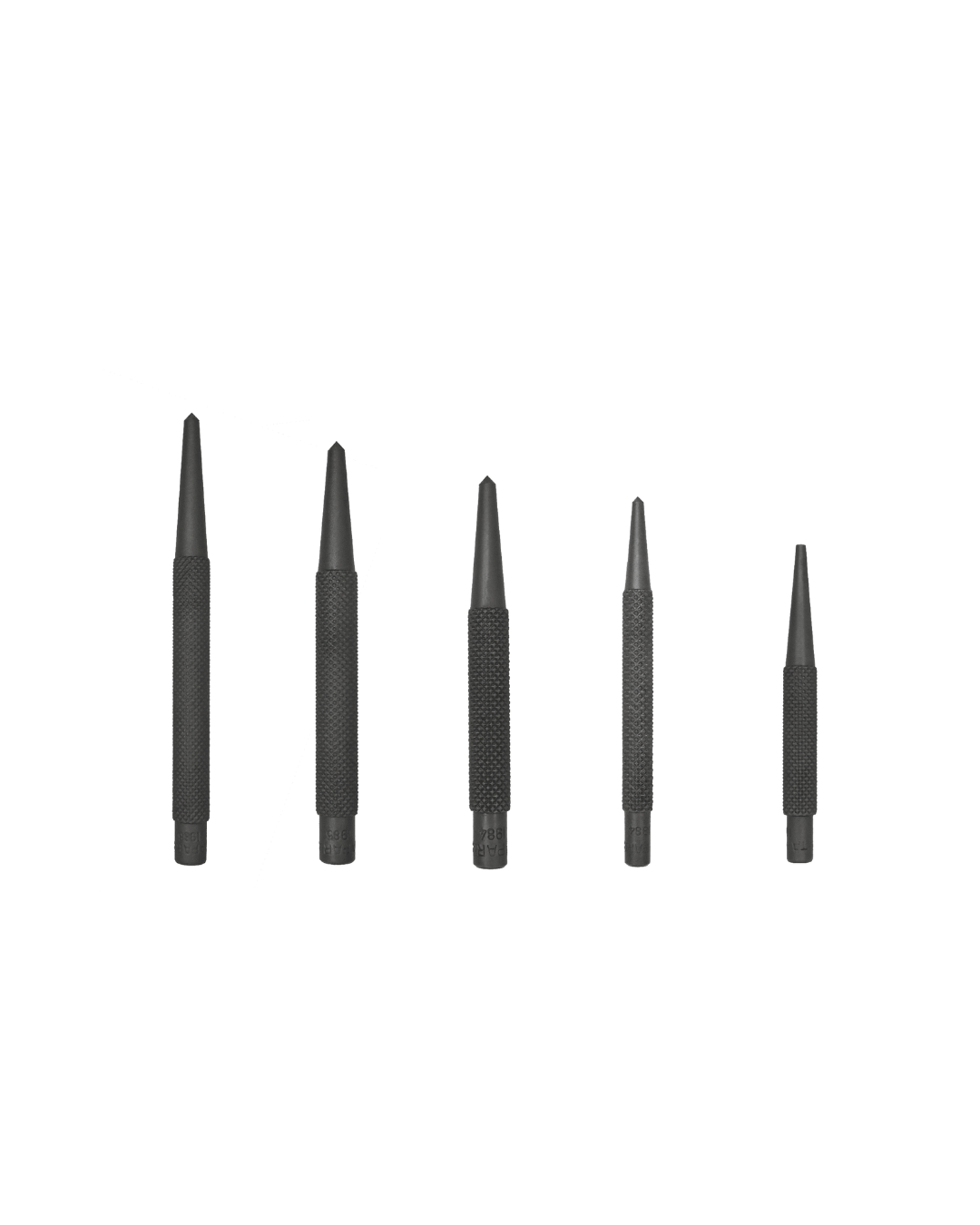

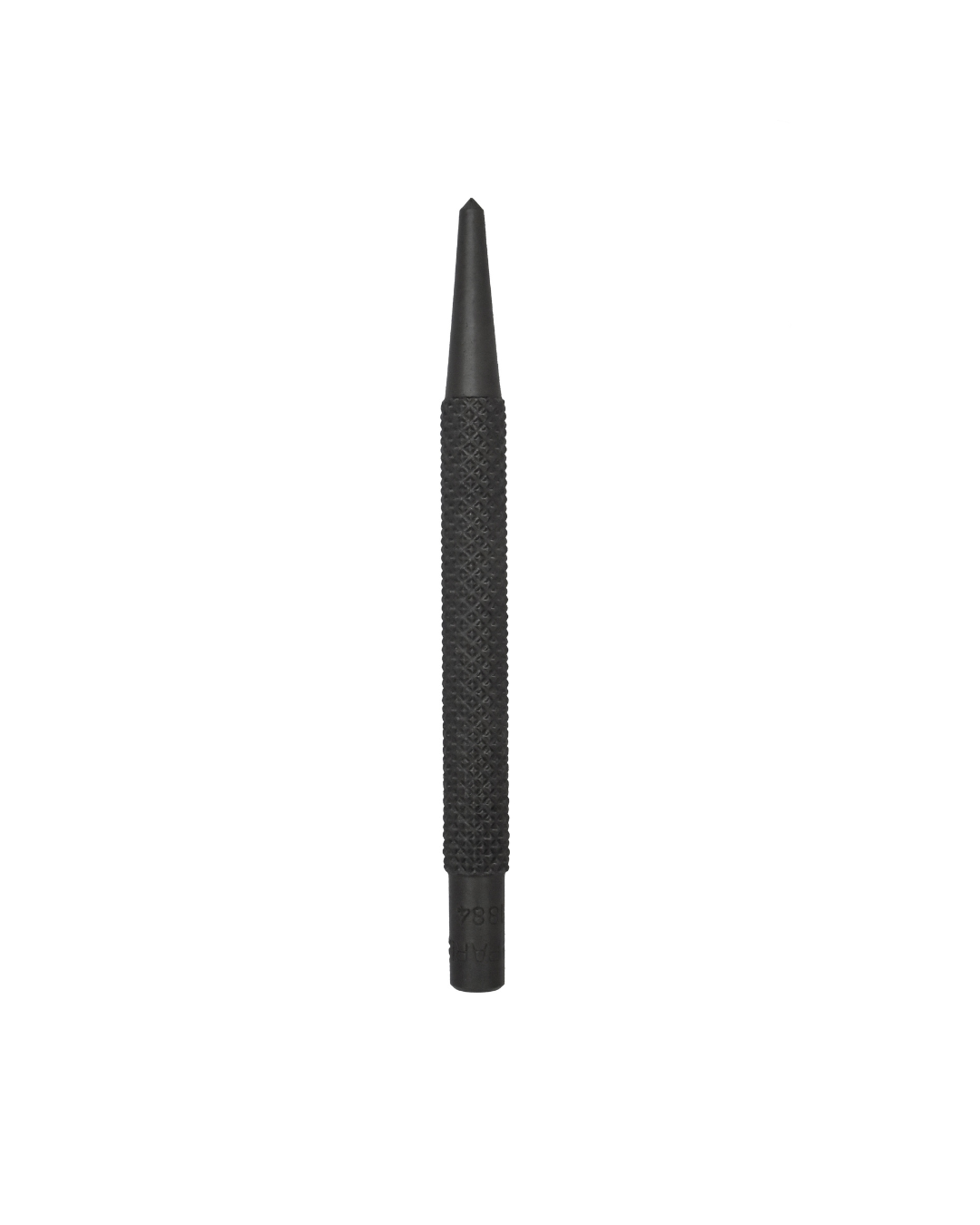

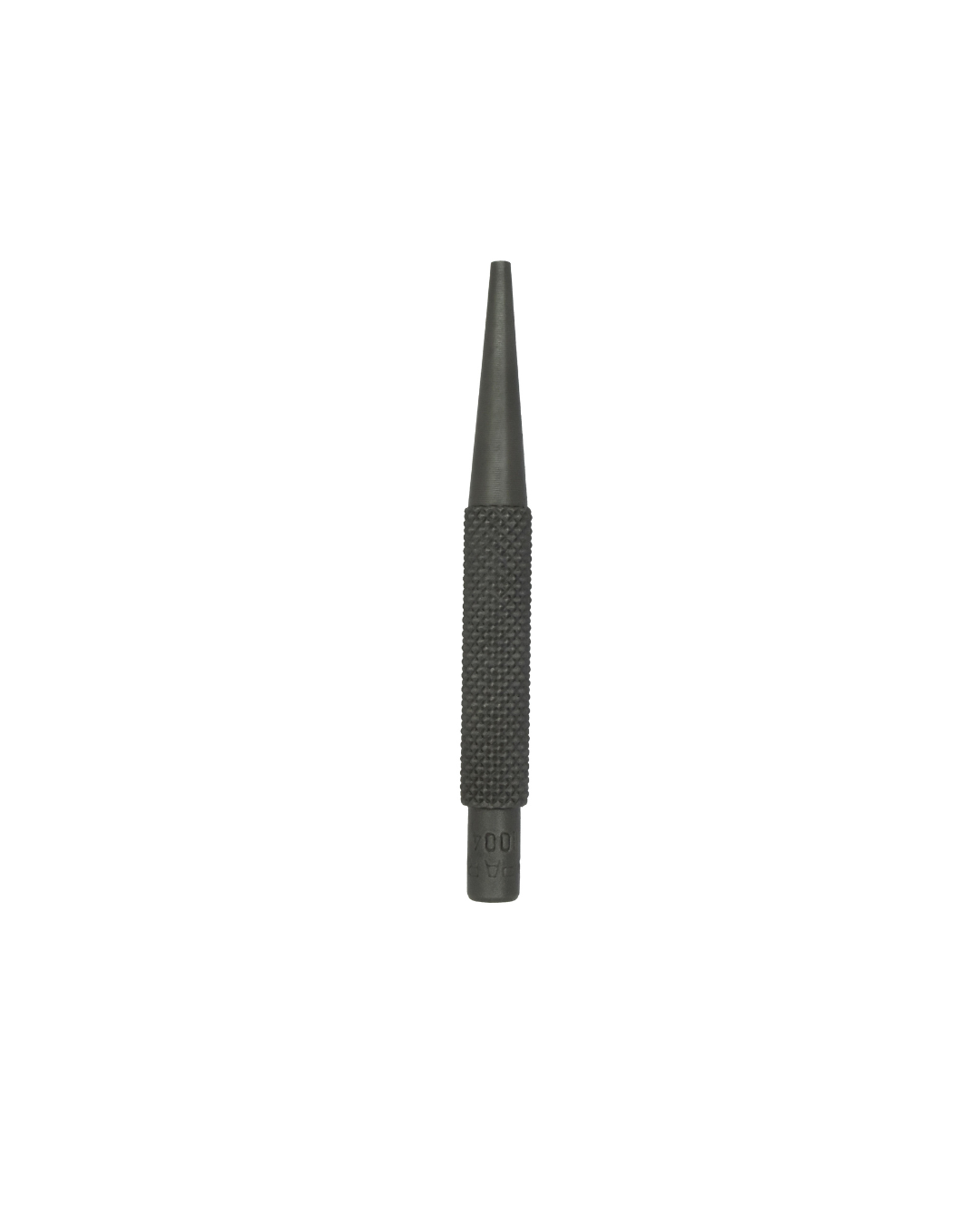

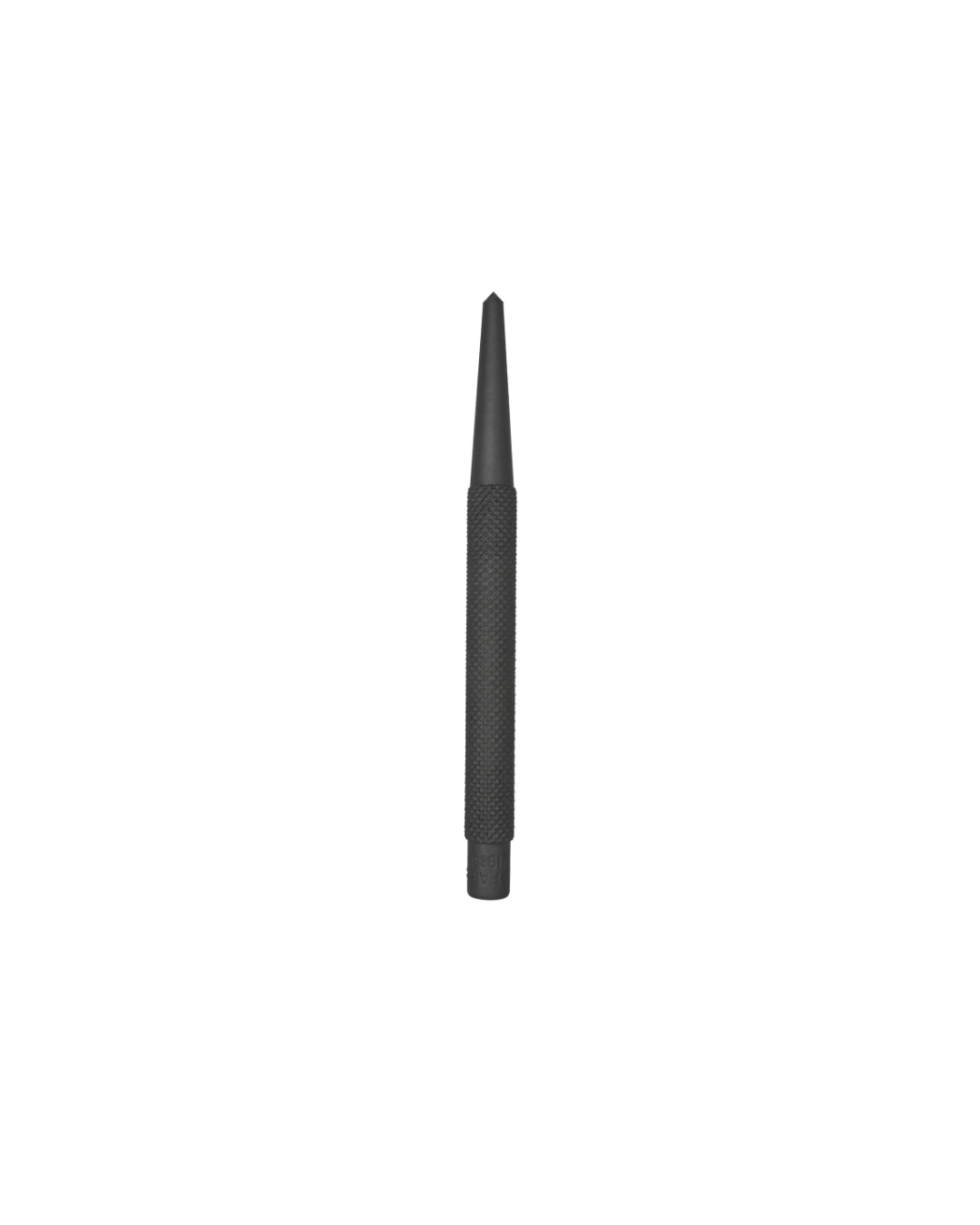

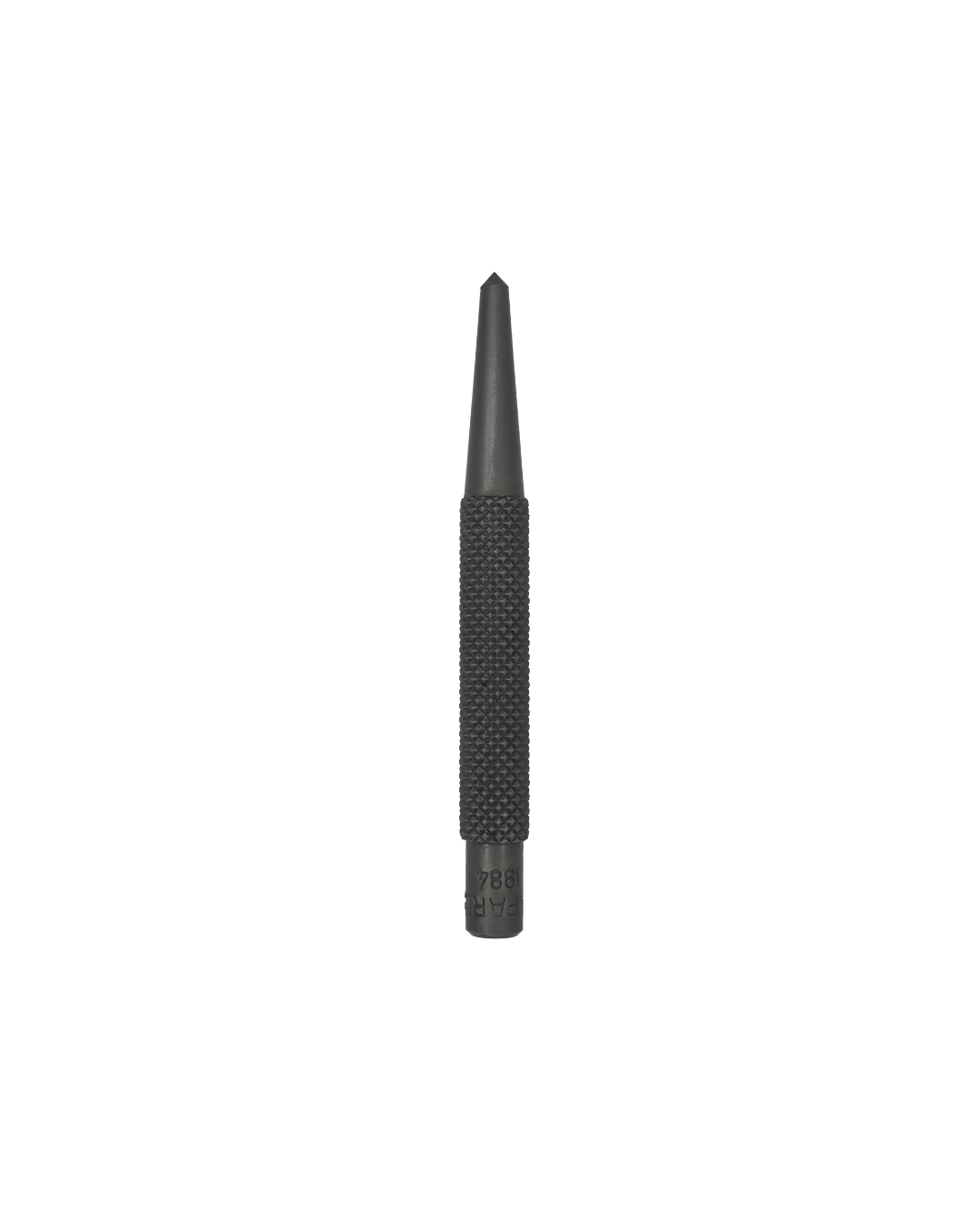

• Centre punches available in 3 sizes, 100 mm, 125 mm, & 150 mm and drift punch is available in 100 mm size.




Product No	Size	Point dia in mm
1884	100	4
1984	100	4
1985	125	5
1986	150	5
1004	100	flat

TAPARIA Center Punches generally Conform to I.S. 7177-1974

Leather Punch:

Made from high-grade carbon steel.
Leather punches are scientifically heat - treated to give maximum strength and wear resistance.
Accurately machined and scientifically heat treated to punch perfect holes in rubber, leather, carpets.
Cut pieces comes out, continuous operation is possible due to it’s suitable design.
Phosphated to protect against rusting.
Available in 80mm, 100mm, 110mm, 120mm, 140mm size having different hole sizes i.e. 3mm, 5mm, 6mm, 8mm, 10mm, 12mm, 13mm, 14mm, 16mm, 19mm 22mm & 25 mm. Product No Size Hole size in mm LP 3 80 3 LP 5 80 5 1786 100 6 1787 100 8 1788 100 10 LP 12 110 12 LP 13 110 13 LP 14 120 14 LP 16 120 16 LP 19 120 19 LP 22 140 22 LP 25 140 25 Leather punches also available in a set.  Set No Set content DCLP 7 1004, 1884, 1984, 1985, 1786, 1787, 1788 LPS 12 LP3, LP5, 1786, 1787, 1788, LP12, LP13, LP14, LP16, LP19, LP22,LP25

•
