| PRODUCT NO. | L | L1 | H | T | Weight Grams |
| TW 10 | 310 | 113 | 36 | 21.5 | 594 |
| TW 25 | 381 | 113 | 36 | 21.5 | 785 |
| TW 50 | 468 | 158.5 | 39 | 27 | 1131 |
| TW 100 | 552 | 158.5 | 42 | 25.5 | 2058 |
| TW 160 | 623 | 227 | 49 | 30.5 | 3091 |
| TW 250 | 772 | 227 | 48.5 | 30.5 | 4004 |
| TW 400 | 853 | 317 | 62.5 | 47.5 | 6109 |
| TW 500 | 1034 | 317 | 62.5 | 47.5 | 7270 |
| TW 750 | 1112 | 364 | 62.5 | 47.5 | 14650 |
| TW 1000 | 1370 | 485 | 84 | 55.5 | 17100 |
| TW 1400 | 1385 | 492 | 84 | 68 | 20988 |
| TW 2000 | 1510 | 625 | 84 | 70 | 24660 |

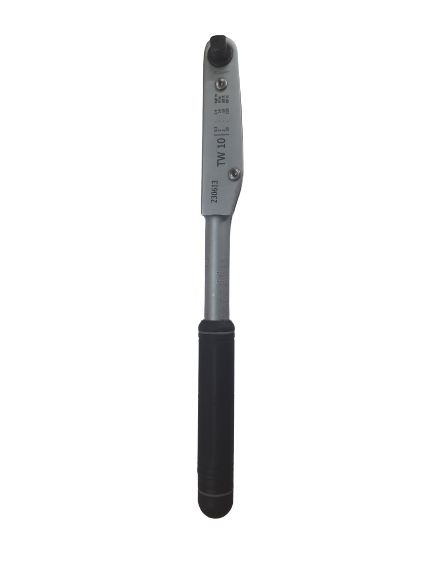

Torque Wrenches are made from high grade steel to withstand maximum fatigue, wear and tear.
All load bearing components are appropriately heat treated and toughened for long life and durability.
Compact and robust design ensures ease in operation and safety in rugged terrains.
The “CLICK†noise is clearly audible at preset torque value.
Push through movable square permits use on both Right Hand and Left hand directions in Standard & professional range whereas knob is provided in ratchet type professional range.
Clear & accurate scales are marked and are available in three graduations i.e. Lbf.Ft, Kgf.m & N.m are which cover the requirement of majority industries.
Positive setting without the need for any calibration rig.
Calculated leverage to reduce labour fatigue.
No violent kick back and automatic resett
TAPARIA offers torque wrenches in standard & Ratchet type professional.
Specifications – Standard
| PRODUCT NO. | Specifications ( DriveDrive ) | Specifications (Lb Ft) | Specifications (Kgf.m) | Specifications (N.m) |
| TW 10 | 9.5 mm (3/8) | 2 – 10 | 0.3 – 1.4 | 3 – 14 |
| TW 25 | 9.5 mm (3/8) | 5 – 25 | 0.5 – 3.5 | 5 – 35 |
| TW 50 | 12.7 mm (1/2) | 10 – 50 | 1.4 – 7 | 14 – 68 |
| TW 100 | 12.7 mm (1/2) | 20 – 100 | 3 – 14 | 25 – 135 |
| TW 160 | 12.7 mm (1/2) | 35 – 160 | 5 – 22 | 50 – 220 |
| TW 250 | 12.7 mm (1/2) | 50 – 250 | 7 – 35 | 70 – 340 |
| TW 400 | 19 mm (3/4) | 100 – 400 | 14 – 56 | 135 – 540 |
| TW 500 | 19 mm (3/4) | 100 – 500 | 14 – 70 | 135 – 675 |
| TW 750 | 19 mm (3/4) | 350 – 750 | 49 – 105 | 475 – 1015 |
| TW1000 | 25.4 mm (1) | 400 – 1000 | 55 – 140 | 540 – 1380 |
| TW1400 | 25.4 mm (1) | 750 – 1400 | 105 – 196 | 1000 – 1900 |
| TW2000 | 25.4 mm (1) | 1000 – 2000 | 135 – 275 | 1350 – 2700 |
