Adjustable Wrenches Phosphate Finish

DOWNLOAD CATALOGUE

Product Overview

PRODUCT NO.	A	B	C	T	T1	WEIGHT ( WITHOUT GRIP )	WEIGHT (WITH GRIP)

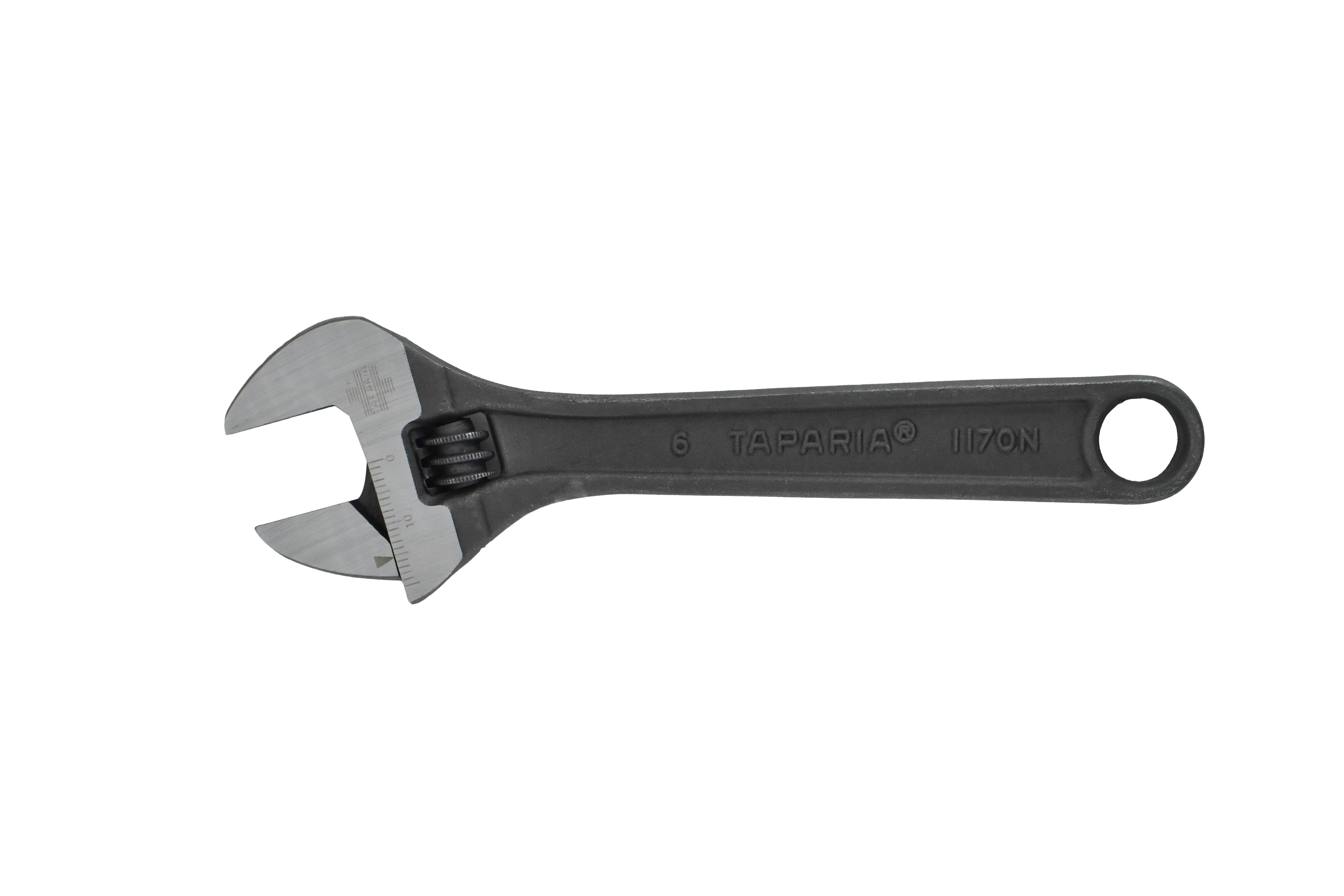

1170-6/1170N-6	155	19	46	11.2	6	143	145

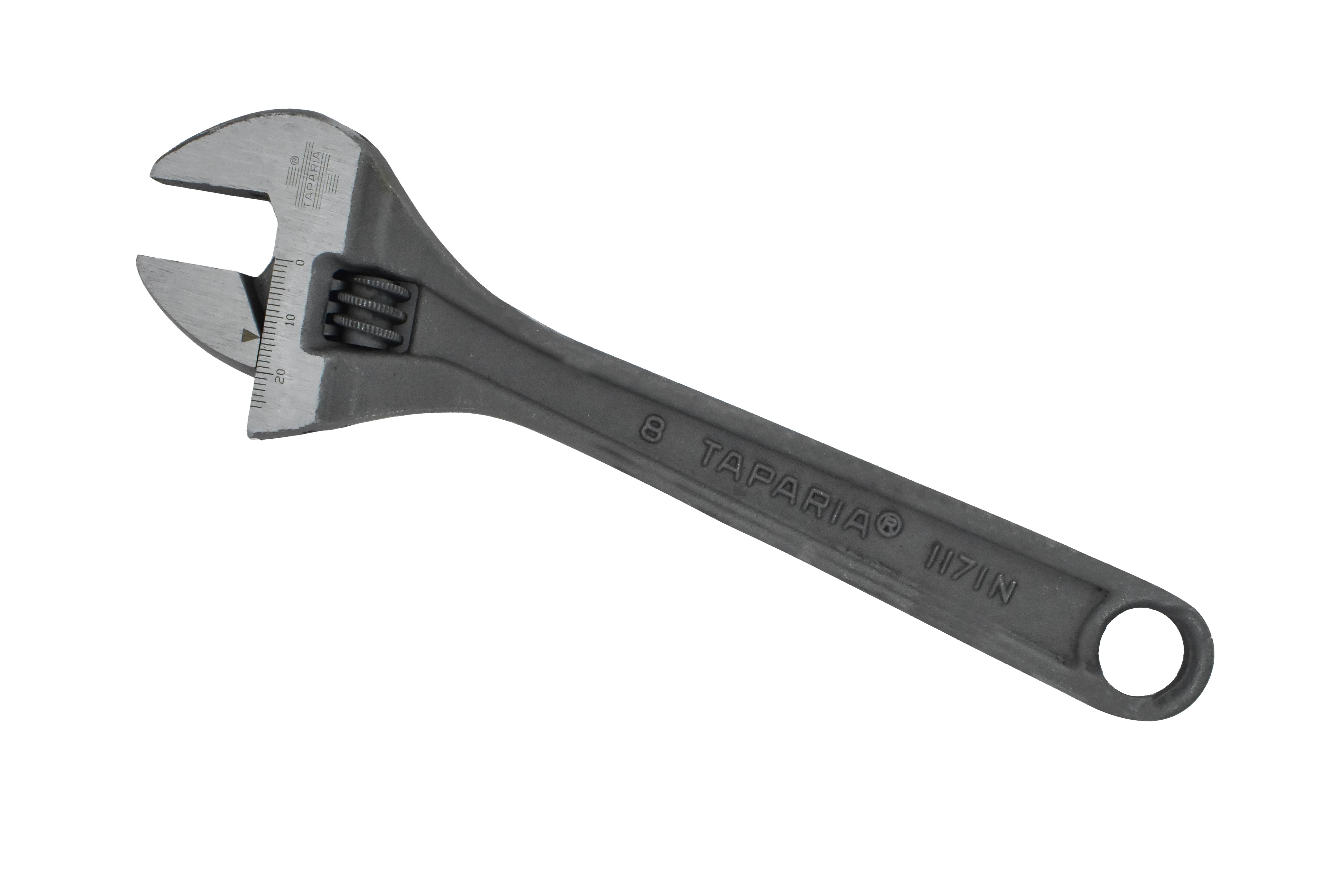

1171-8/1171N-8	205	26	59	13.65	7	150	260

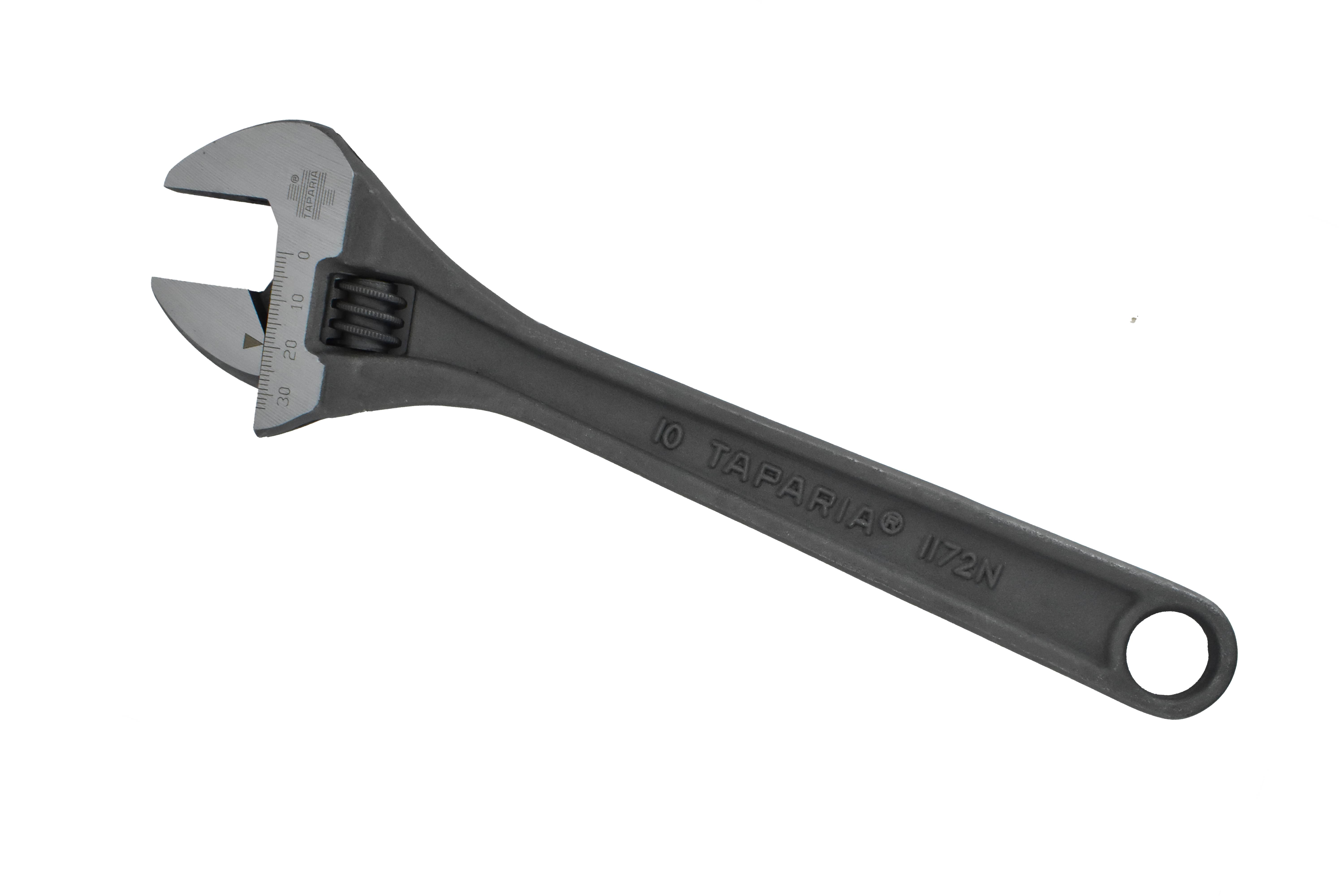

1172-10/1172N-10	255	30	70	16.55	9	278	425

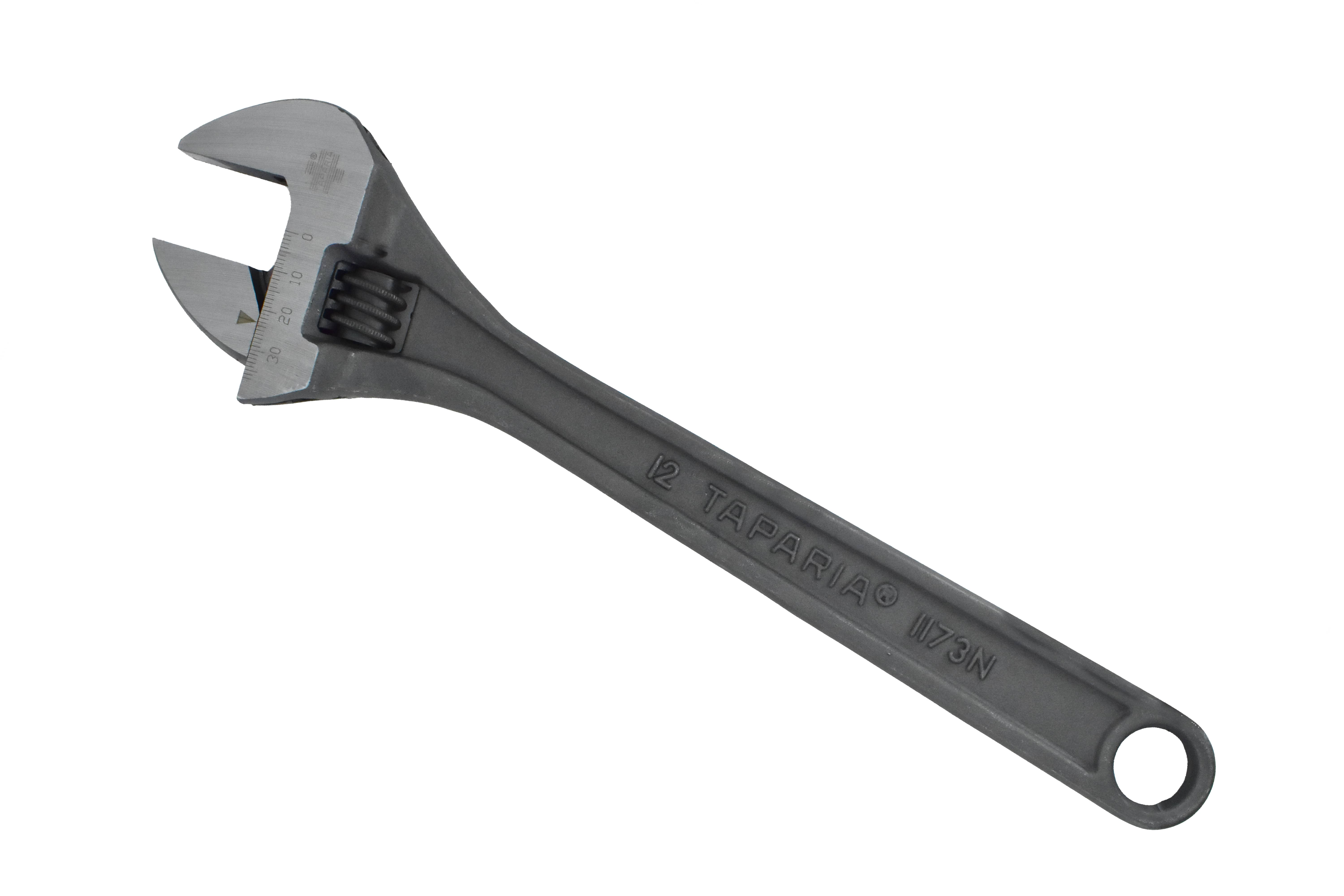

1173-12/1173N-12	305	35	79	18.4	10	500	635

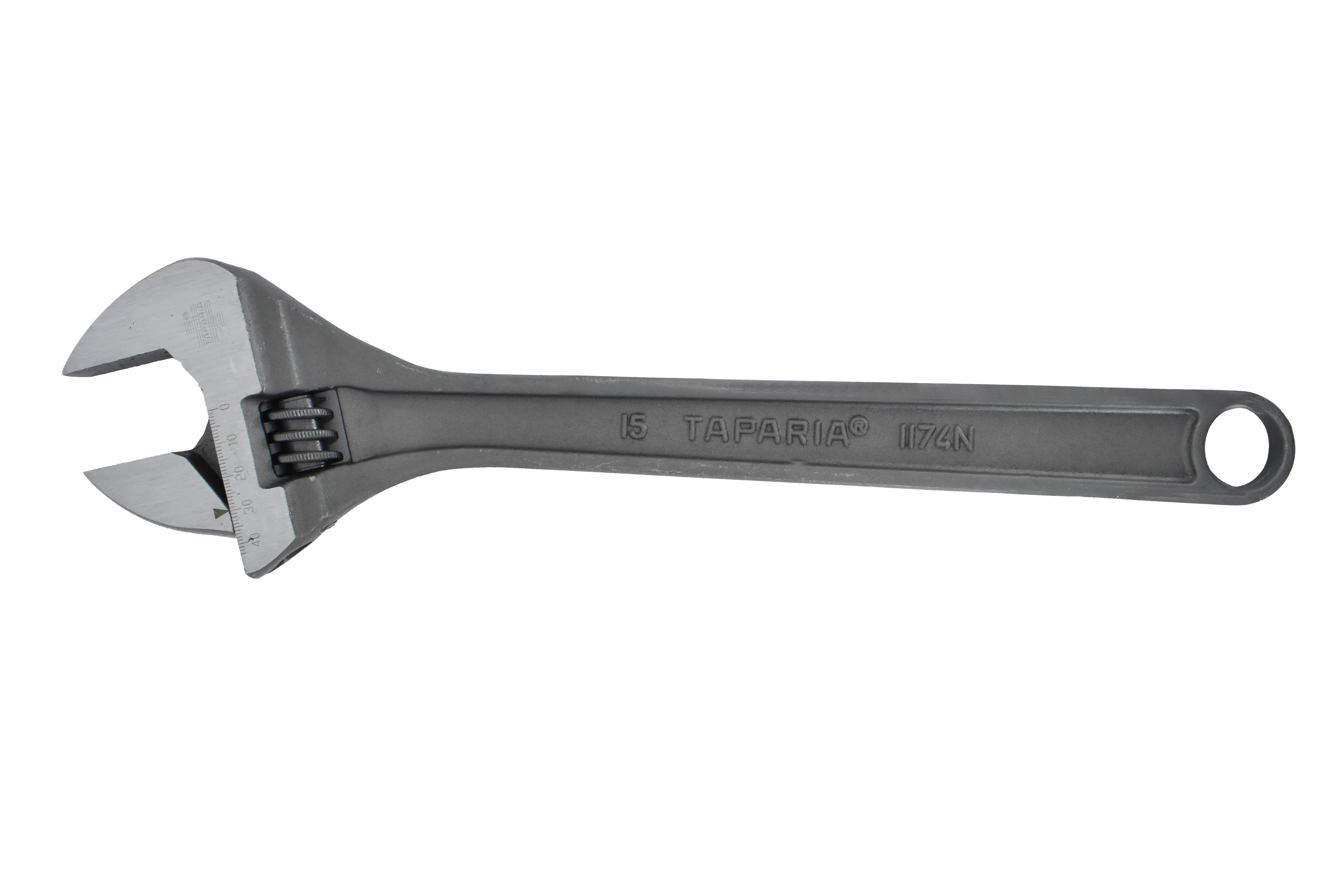

1174-15/1174N-15	384	43	97	21	12.5	960	1025
1175-18	450	55	120	25	14	1950	-

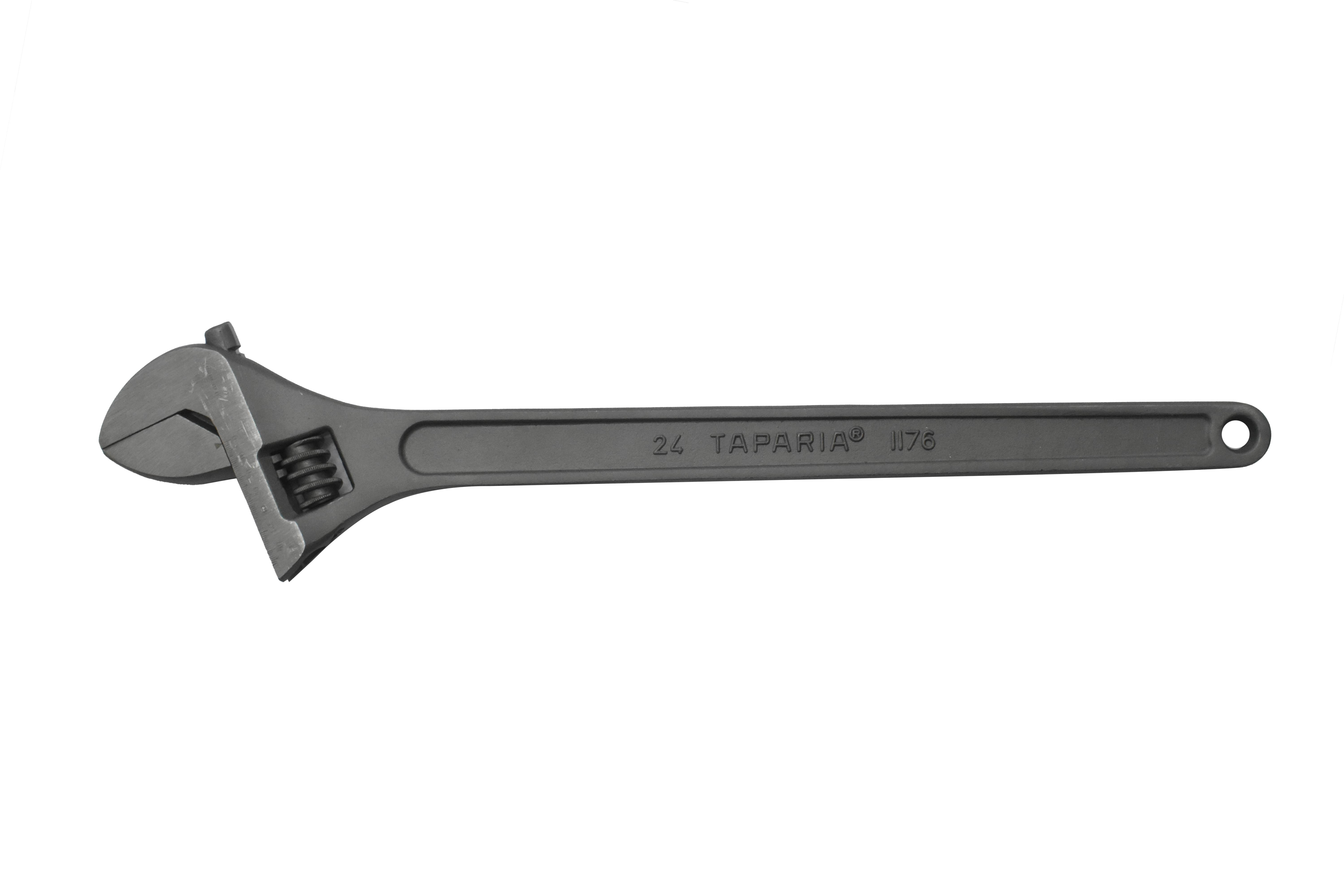

1176-24	608	62	138	28	14	2980	-

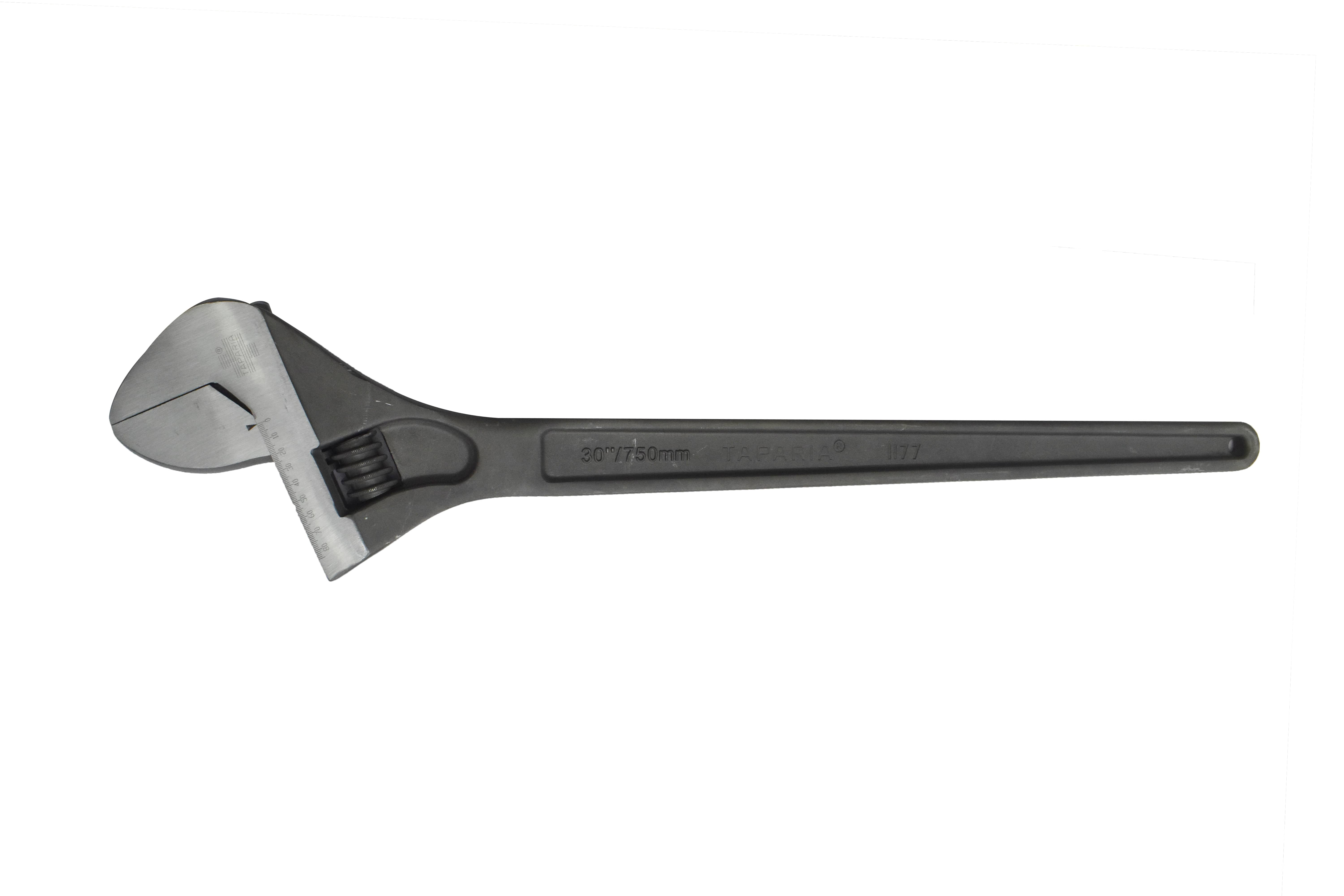

1177-30	780	90	180	34.5	18.5	6375	-

Special Features

Salient Features

Taparia Adjustable Wrenches are made NORMALLY with a 15-degree head angle. This specific feature permits use even in narrow spaces having arc movement of only 30 degree. Whereas Adjustable Wrenches having 22.5 degree head angle cannot be used in space having arc movement less than 45 degrees

Taparia Adjustable Wrenches can be used in confined spaces because jaw shank does not protrude out even when fully opened and therefore does not interfere with the surroundings. In other makes, the shank protrudes out and therefore it creates obstruction in operation.

In Taparia Adjustable Wrenches, the opening of jaws is indicated by a precision marked scale, which facilitates settings of the spanner to required sizes easily and in advance, if so desired.

In Taparia Adjustable Wrenches, Left hand thumb screw movement is provided as standard. Right hand thumb screw movement available on request.

Taparia Adjustable Wrenches withstand near by Federal torque standards which is much higher than the Torque specified by IS.

Normal Features:

In Taparia Adjustable Wrenches Left hand thumb screw movement is provided as standard. Right hand thumb screw movement available on request.

Scientifically heat - treated to give maximum strength, wear resistance and long trouble free service.

Taparia Adjustable Wrenches withstand near by Federal torque standards which is much higher than the Torque specified by IS.

Available full range of 8 sizes in lengths of 150, 200, 250, 300, 375, 450, 600, & 750 mm with options of bright polished finish in Nickel Chrome plating and black Phosphate finish.

Also available with soft grip for comfortable gripping in use.

Hardness: 40 to 48 HRC

Product No	Minimum Torque Value in Nm	Maximum Opening in mm
1170-6	85	19
1171-8	180	26
1172-10	320	30
1173-12	515	35
1174-15	920	43
1175-18	1370	55
1176-24	1970	62
1177-30	3970	90

Minimum Torque Value in Kg.m & Maximum opening
