- The
blade is made from high grade Silico – Manganese steel.
|
- Scientifically
heat treated blade gives maximum strength & wear resistance.
|
- The
tip is precision – ground to ensures firm grip in the
screw slot.
|
|
|
|
- The blade tip is magnetized to lift small screws from confined
spaces or to hold the screw in position.
|
- Bright
& smooth Nickel Chrome plating finish effectively protects blade against
corrosion.
|
- The
handle is made from high grade special Plastic to enable high strength and
durability.
|
- The
handle is precisely designed to give comfortable grip even at higher torque.
|
|
- The
specially designed steel cap and blade assembly facilitates the striking
screw driver for hammering without damaging the handle.
|
|

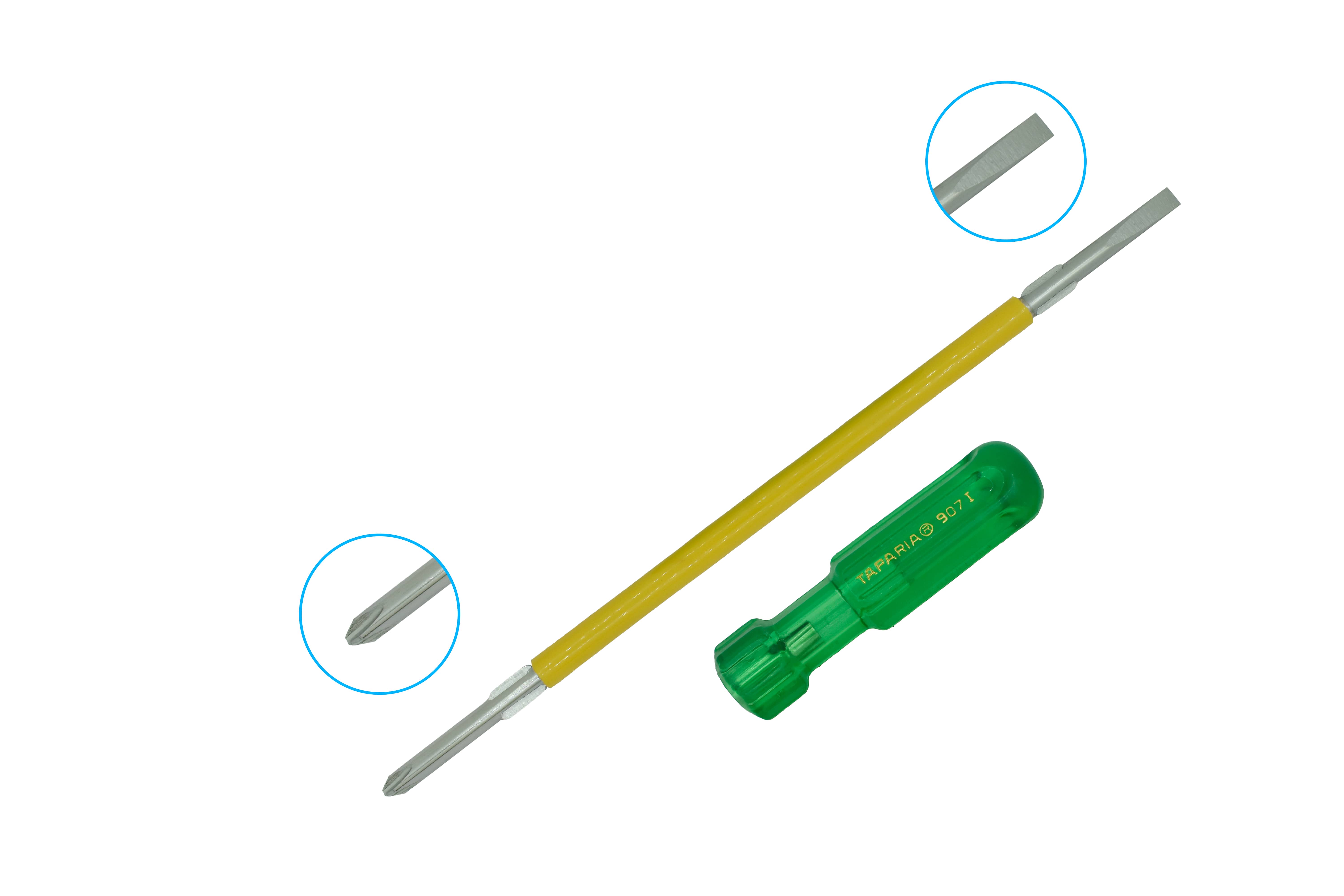

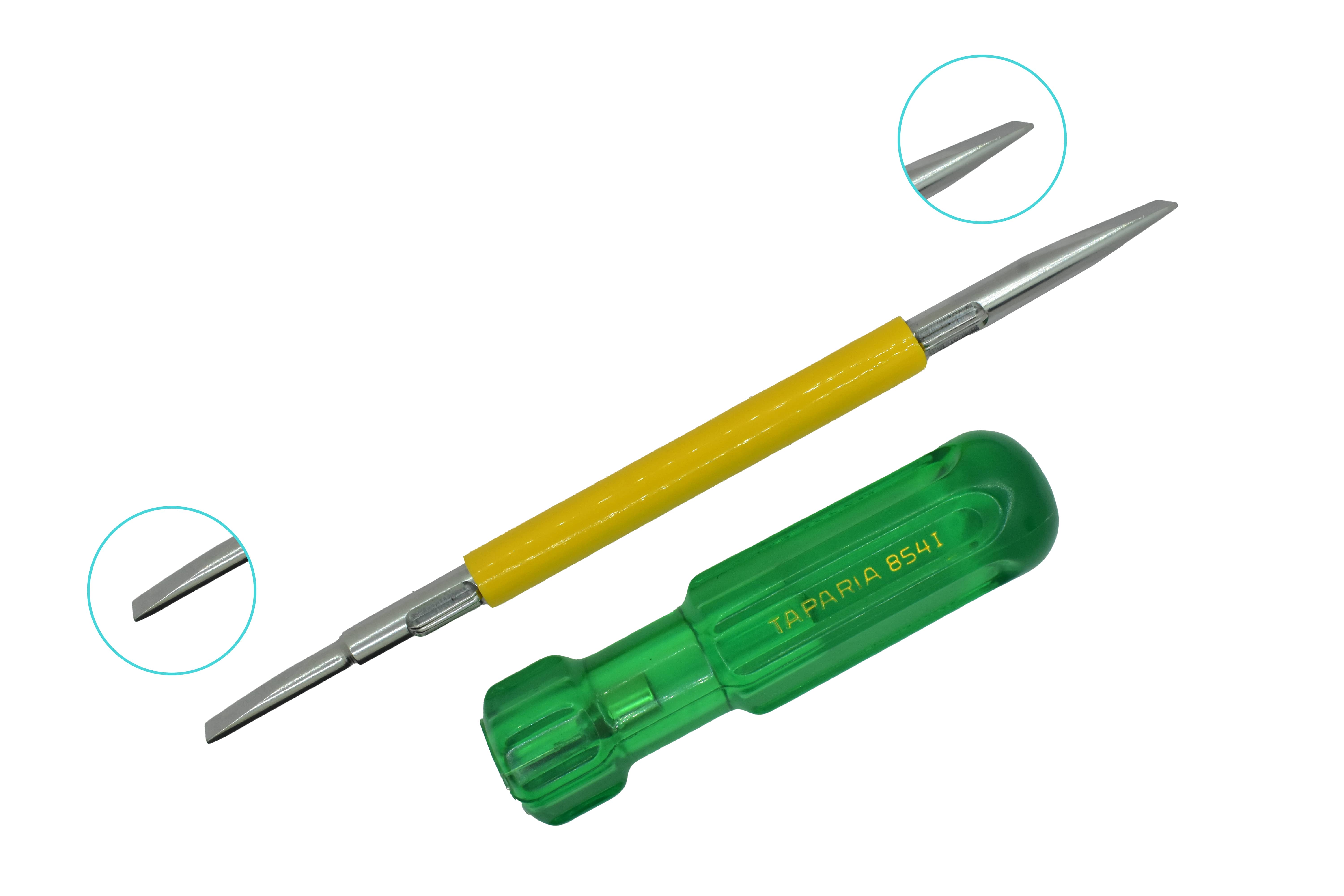

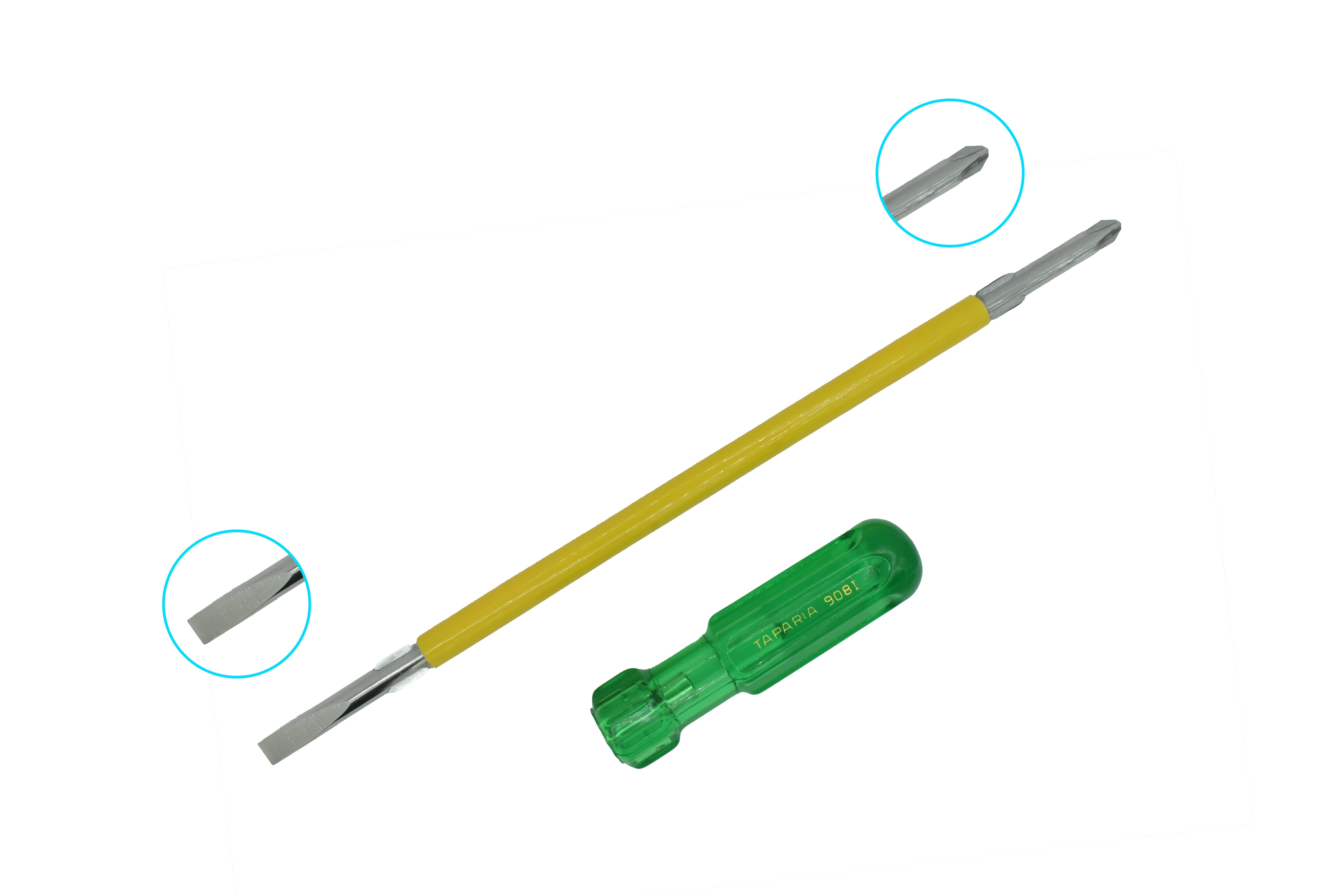

- In
electrician pattern, PVC insulation on blade protects from electric shock
& withstands for high voltage insulation test at 2000 V DC.
|

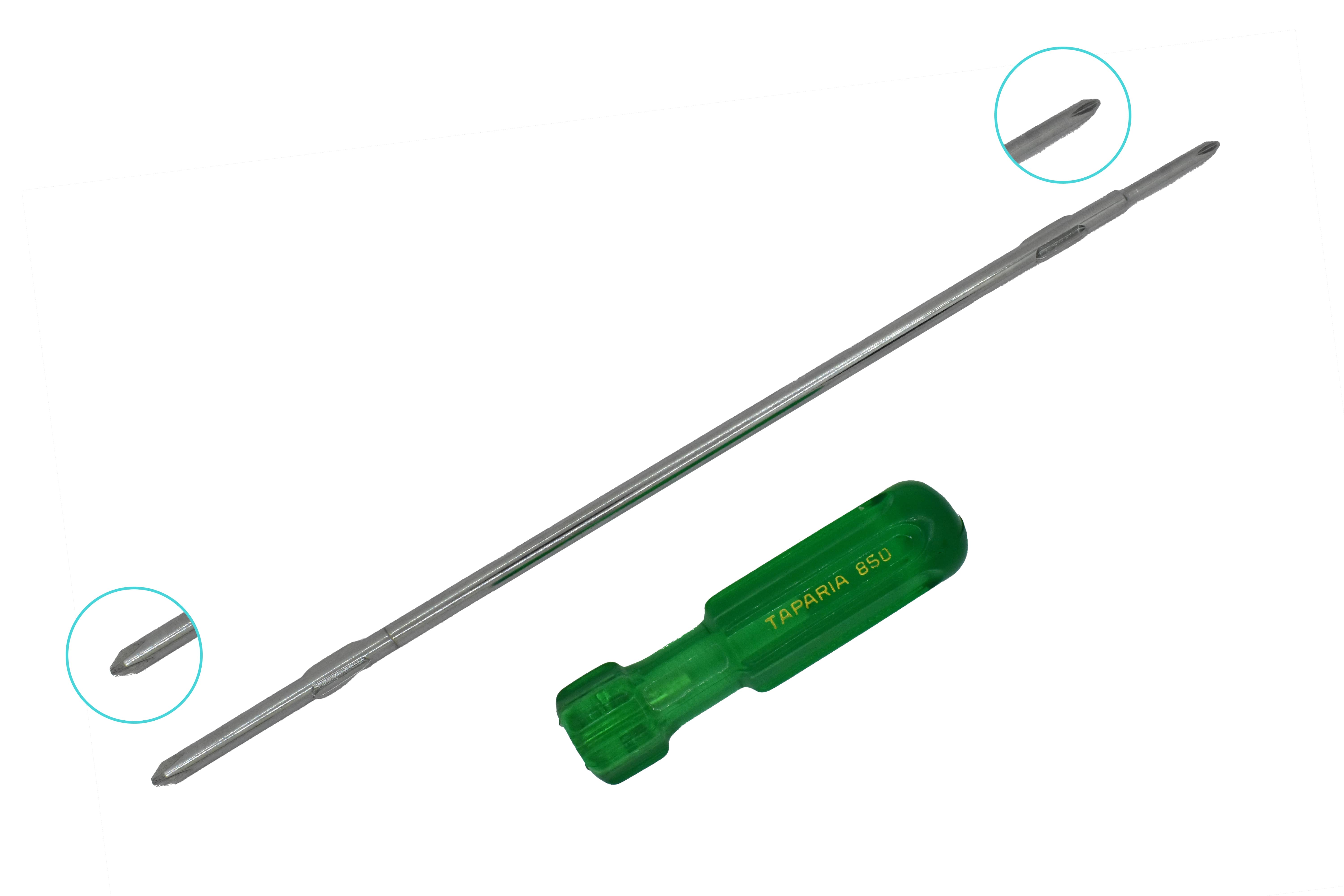

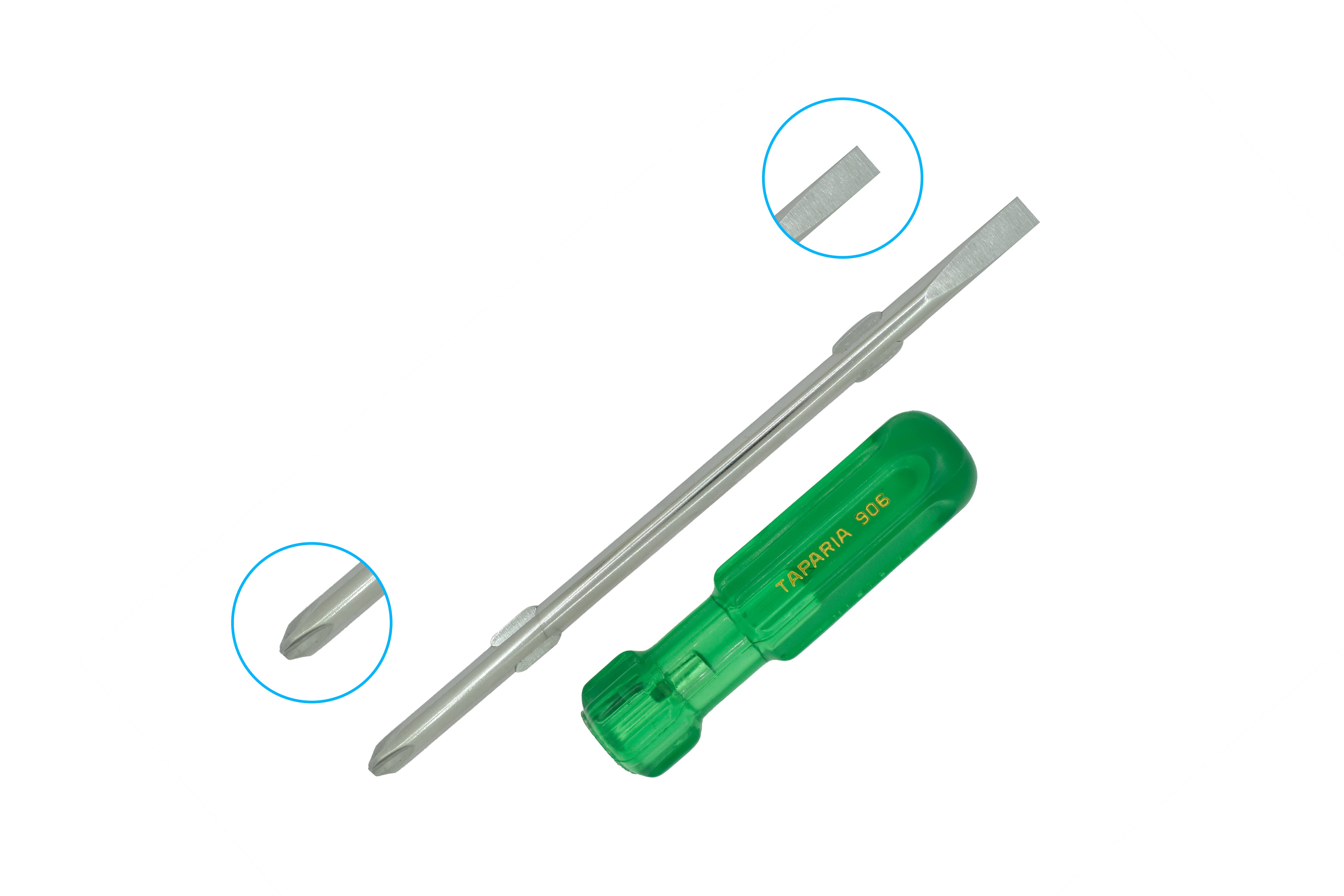

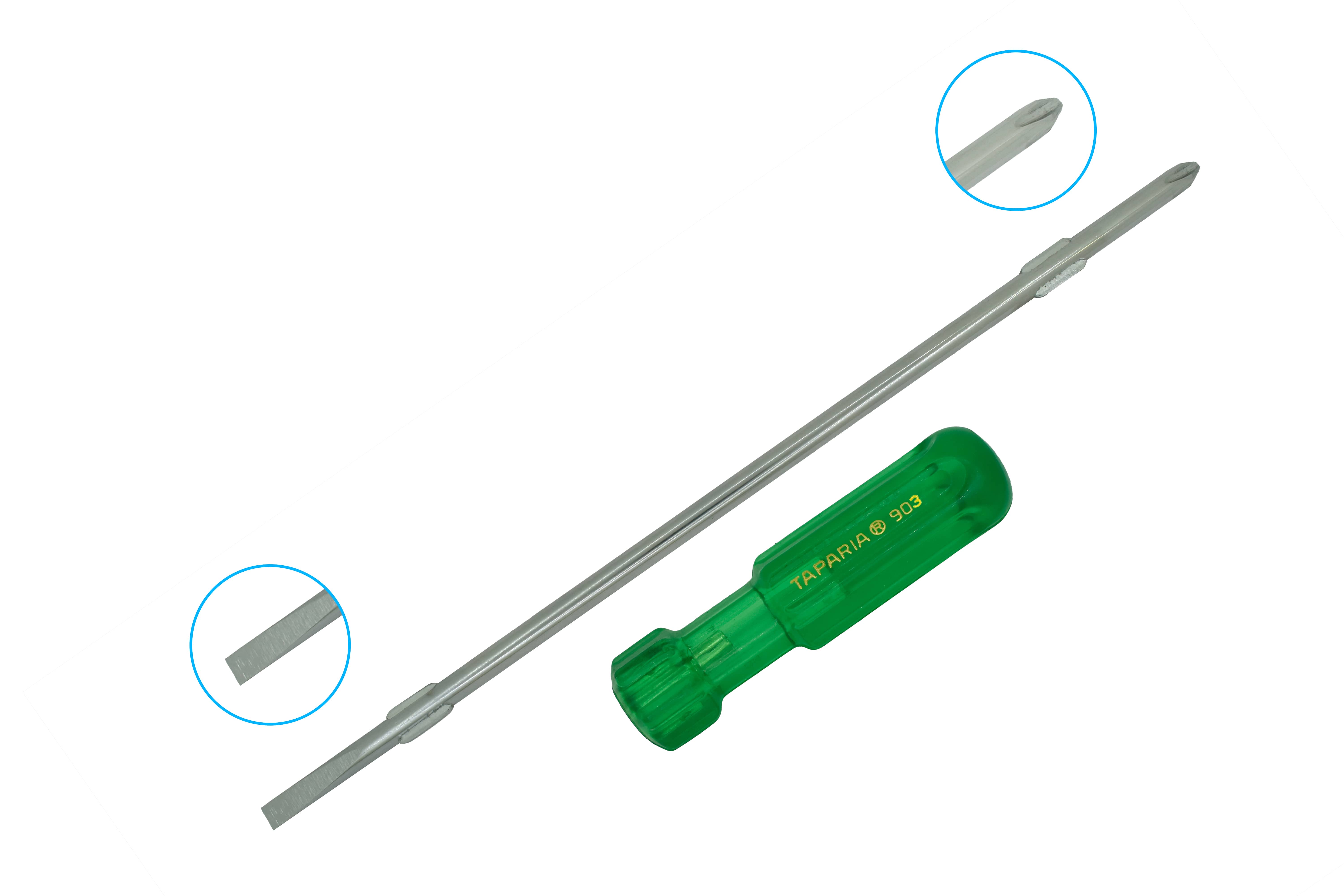

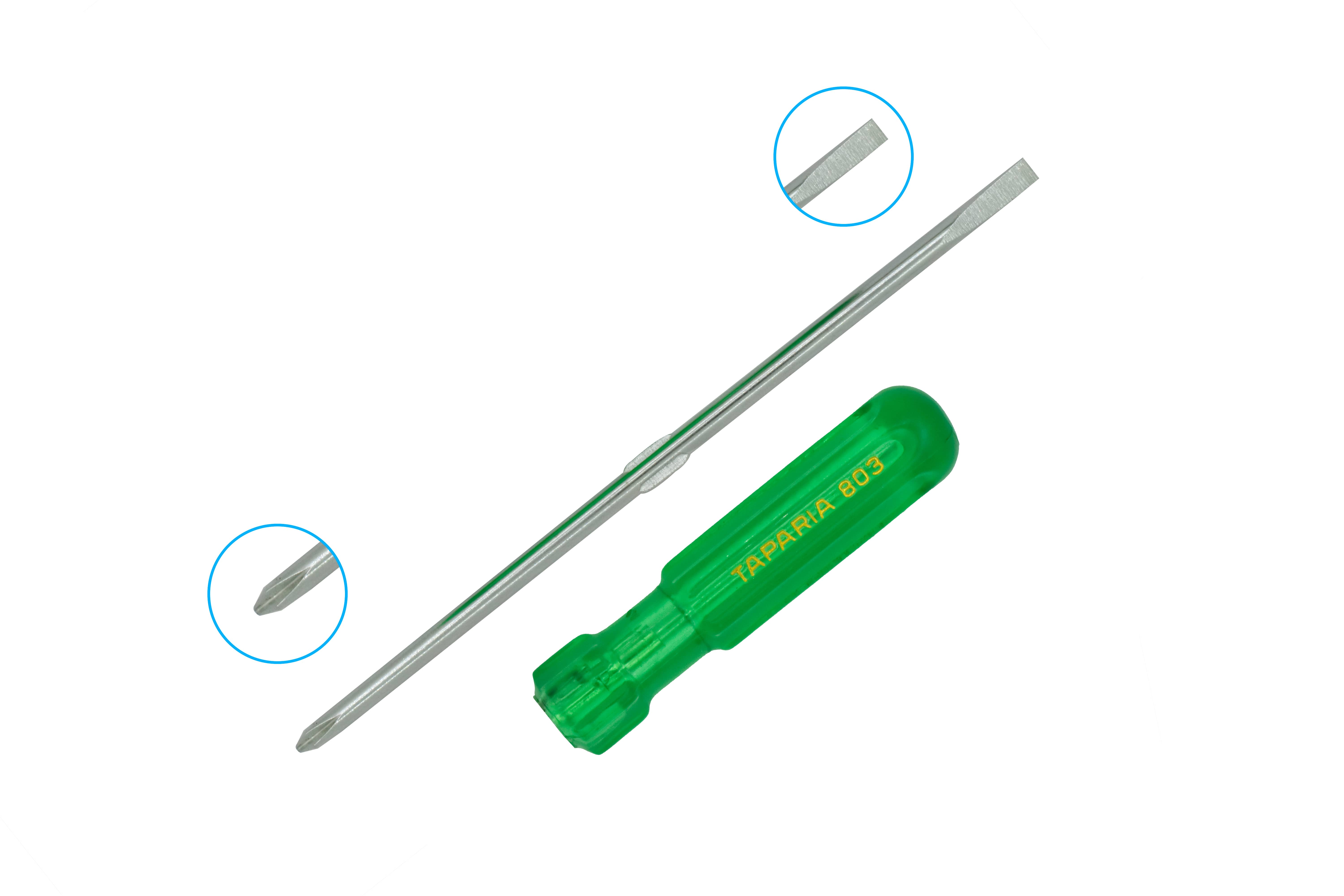

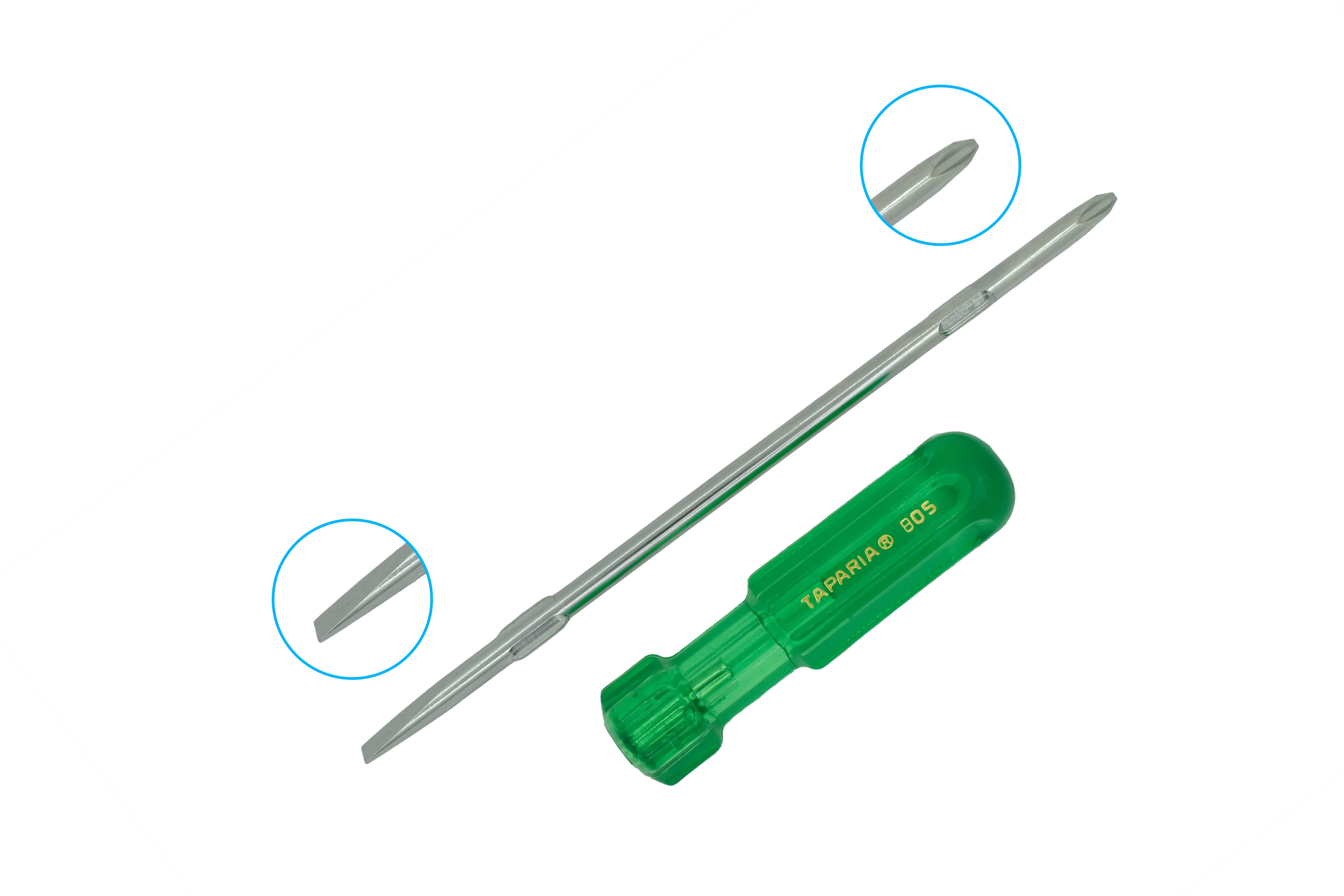

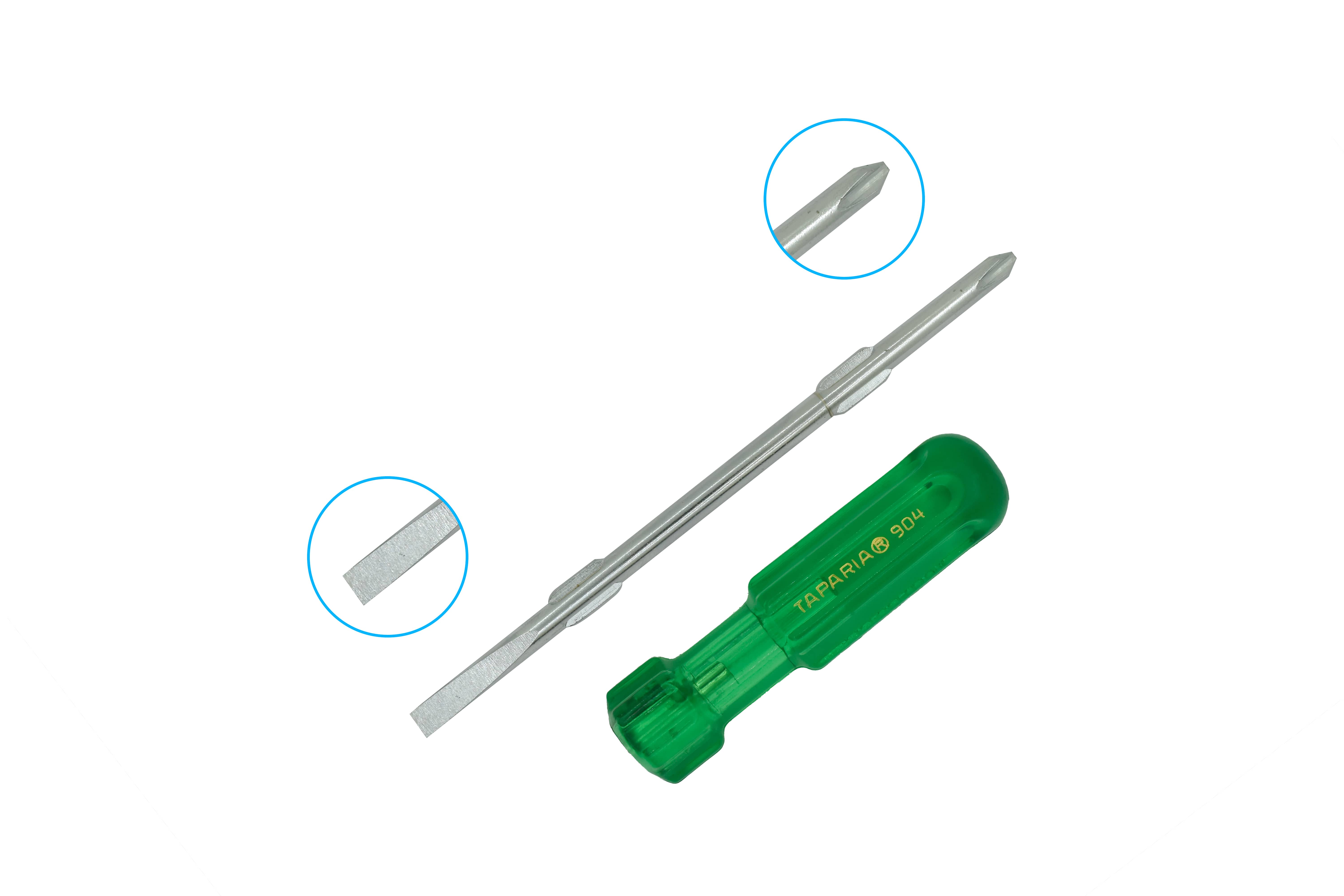

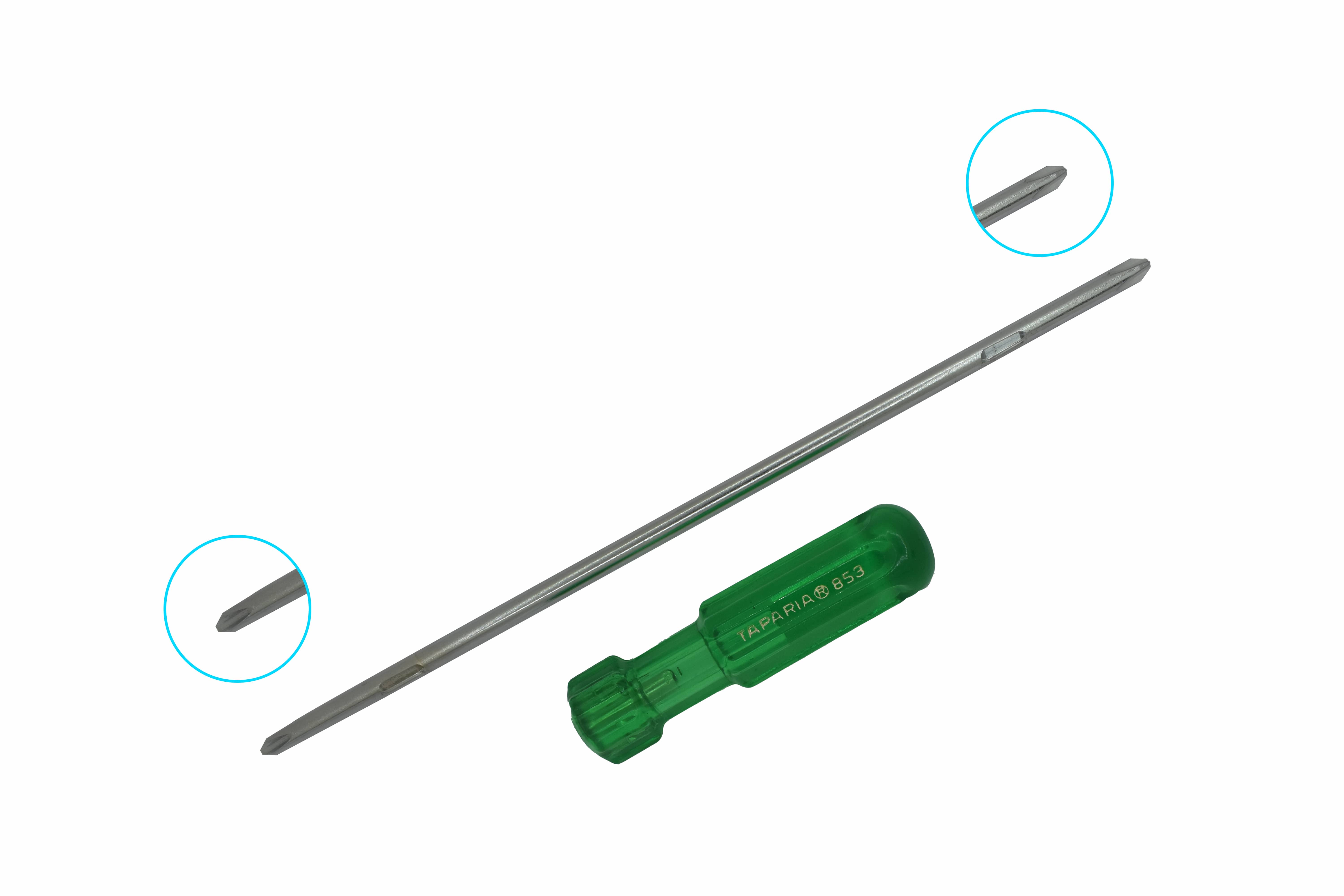

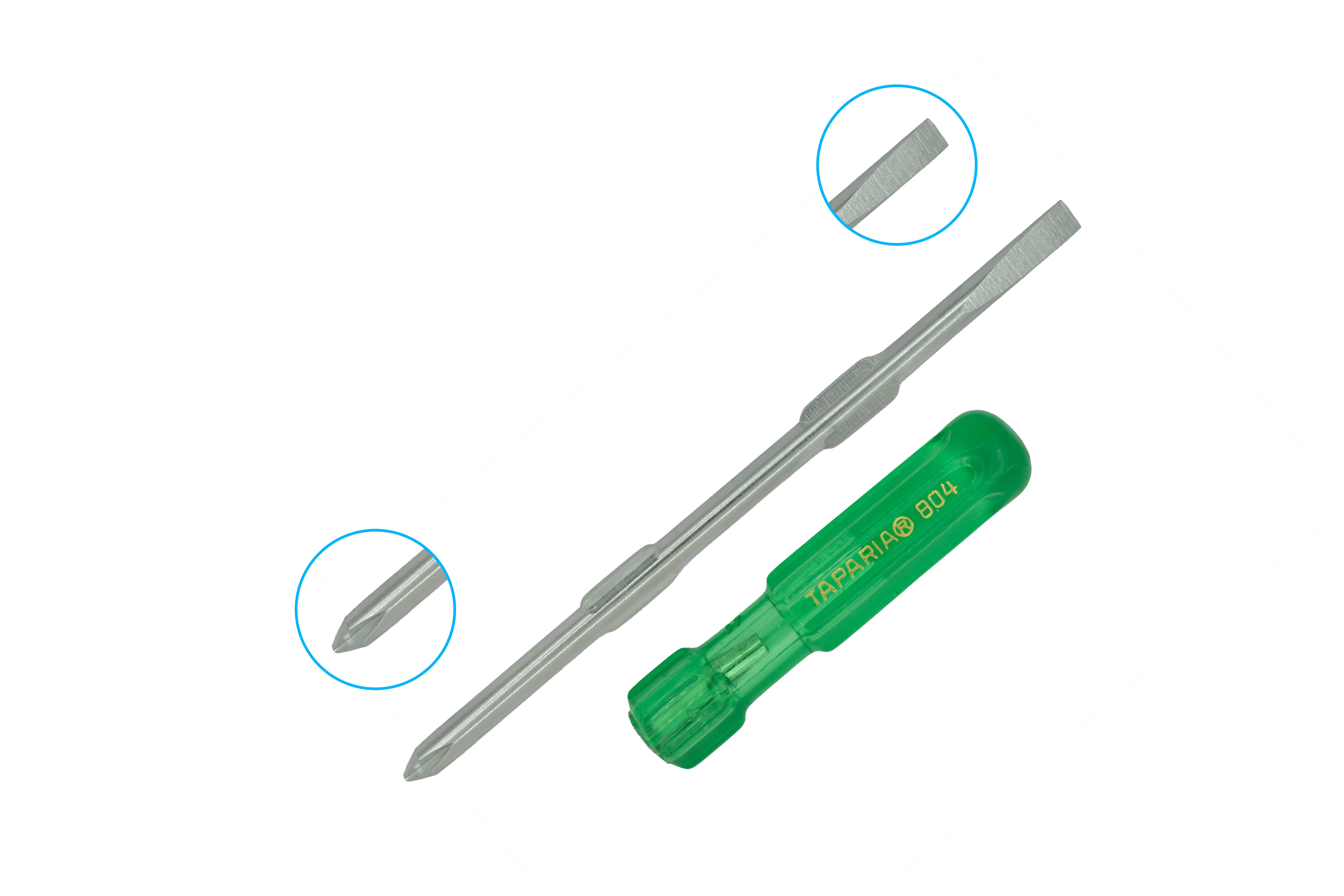

- Available
in different patterns viz. Engineer’s, Electrician’s, Stubby, Phillips,
Poker, Striking, Torx, Hexagon etc., Two-in-One (Black Tip) – Regular &
Stubby.
Minimum Torque Value in Kg.m:
Flat Trip
| Tip Width in mm | Tip Thickness in mm | Torque Value in Kgm | | 1.6 | 0.4 | 0.03 | | 2.3 | 0.4 | 0.04 | | 3 | 0.4 | 0.05 | | 3 | 0.5 | 0.08 | | 3.5 | 0.5 | 0.09 | | 4 | 0.6 | 0.15 | | 4.3 | 0.6 | 0.16 | | 5 | 0.6 | 0.18 | | 6 | 0.6 | 0.21 | | 5 | 0.8 | 0.32 | | 6 | 0.8 | 0.39 | | 8 | 1 | 0.8 | | 8 | 1.2 | 1.17 | | 10 | 1.2 | 1.46 | | 10 | 1.5 | 2.29 | | 13 | 1.9 | 4.78 |
|
Philips
Tip
|
|
| Tip No | Torque Value in Kgm | | PH-00 | 0.05 * | | PH-0 | 0.14 | | PH-1 | 0.38 | | PH-2 | 1.04 | | PH-3 | 3.9 | | PH-4 | 5.9
|
| |
| TAPARIA Screwdrivers are generally Conform to
I.S.844-1979 |
|
